M Coupe (E36/7) L6-3152cc 3.2L DOHC (S52)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power and Ground Distribution
>>
Fuse
>>

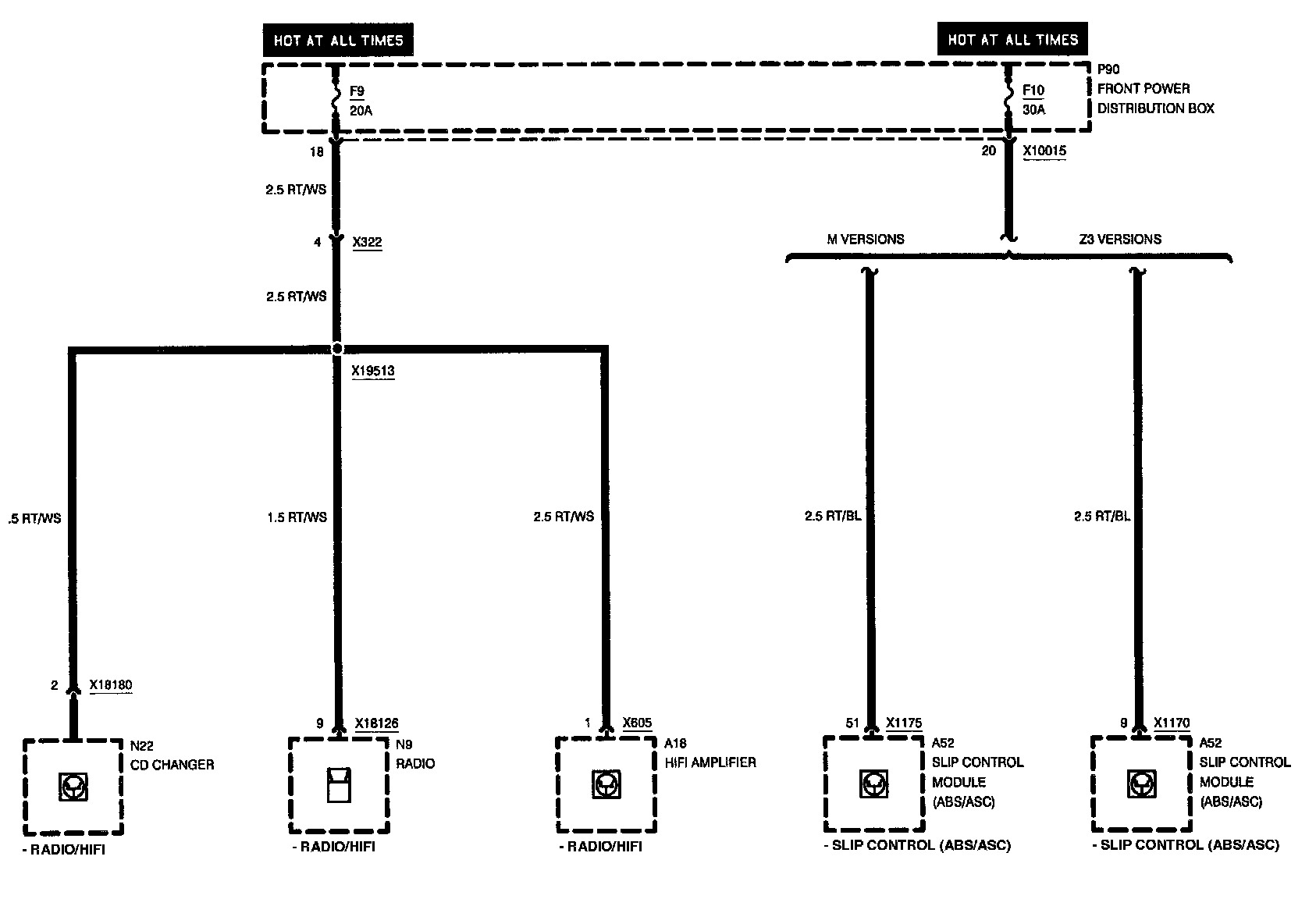

Fuses 9 - 10
Fuses 9 - 10
Fuse Details: Fuses 9 - 10:
