Home >> BMW >> 1999 >> M Coupe (E36/7) L6-3152cc 3.2L DOHC (S52) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> Fuse >> Fuses 27 - 30

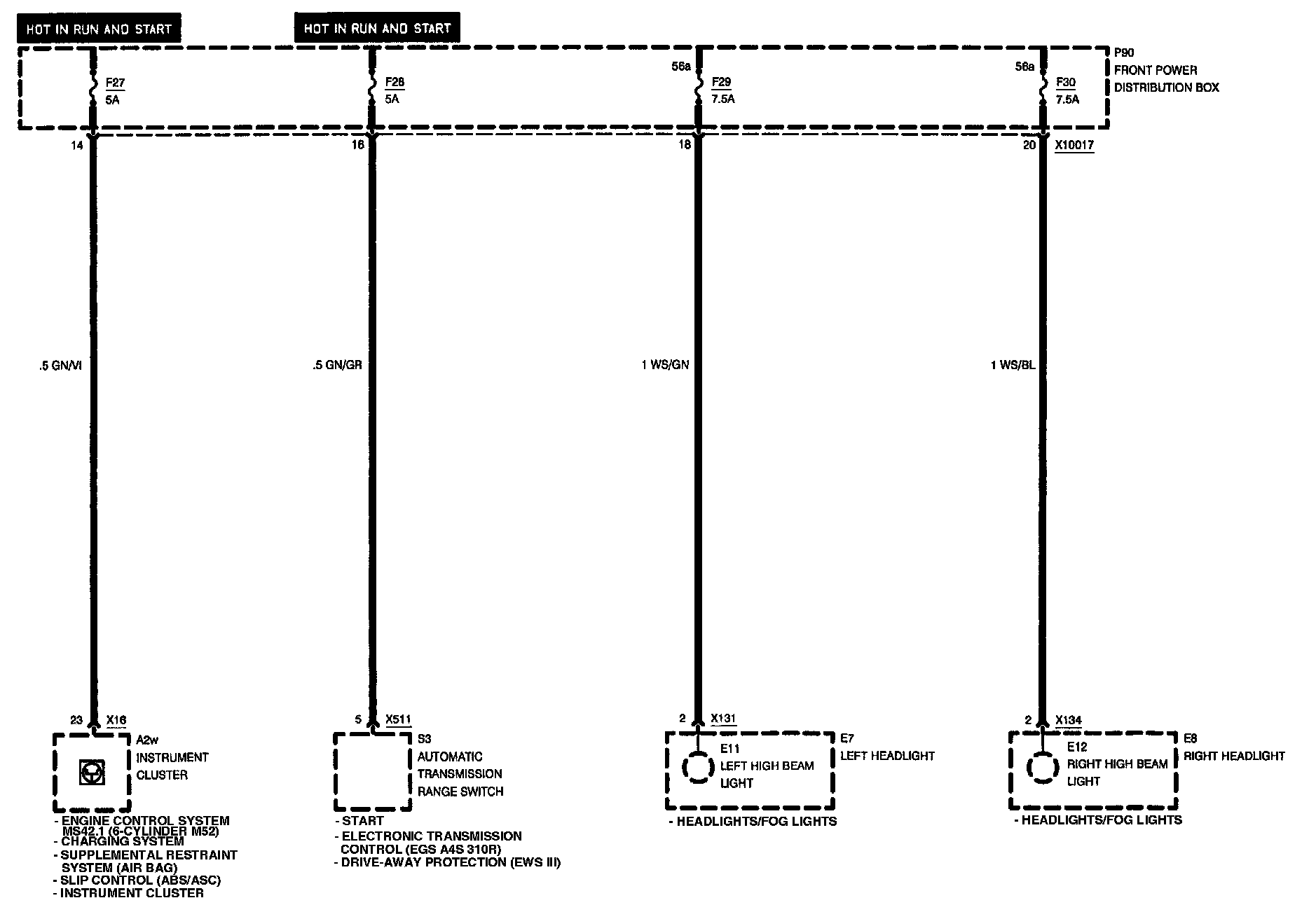

Fuses 27 - 30

Fuse Details: Fuses 27 - 30:
