Replacing Glass Tilt Roof Cover (Z3 Coupe, M Coupe)



54 10 101 Replacing Glass Tilt Roof Cover (Z3 Coupe, M Coupe)

Remove glass tilt roof cover.

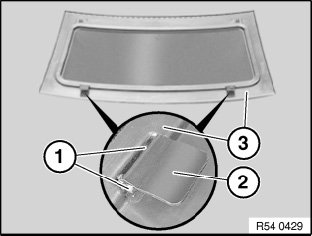

Release screws (1) and remove shoehorn hinges (2) from glass roof cover (3).

Installation:
Adjust glass tilt roof cover.
