Removing and Installing/Replacing Both Cover Mounts (Z3 Coupe, M Coupe)

54 10 125 Removing And Installing/Replacing Both Cover Mounts (Z3 Coupe,M Coupe)

Remove glass tilt roof cover.







NOTE:
- When releasing screws (1):
- Do not lose nuts underneath.

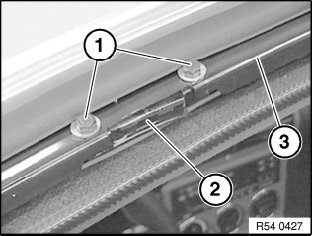

Release screws (1) on left/right and remove cover mount (2) from roof frame (3).

Installation:
4AZ Lid bearing on glass tilt sunroof frame 3.5 ± 0.5 Nm







Installation:
If necessary, glue nuts (1) in cover mount (2).

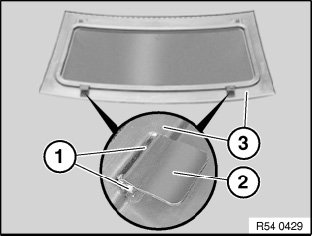

Release screws (1) and remove cover mount (2) from roof cover (3).

Installation:
Adjust glass tilt roof cover.
