Replacing Rear Lower Sections Of Side Trim

Removing and Installing/Replacing Rear Left or Right Lower Section Of Side Trim (Z3 Coupe, M Coupe)

Remove side finisher in luggage compartment at front,


Remove rocker panel cover strip (inside),

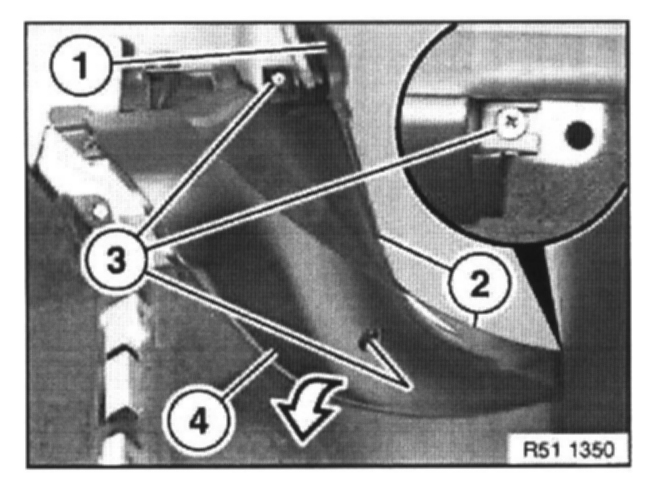

Partially unfasten cover (1) and mucket (2). Unfasten screws (3) and pull out lower section of side trim (4) toward rear/inside.
