Replacing Panel For Door Pillar

Removing and Installing/Replacing Panel For Door Pillar, Left or Right (Z3 Coupe, M Coupe)







Lift cover upwards to remove and unfasten screw.








Press lower locking device upwards and remove lever.

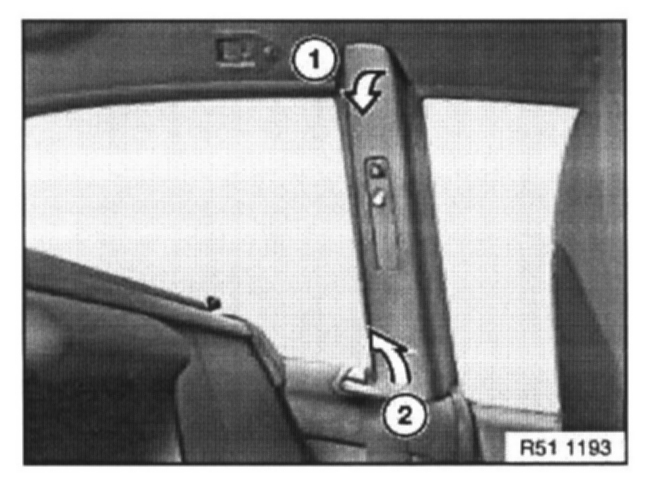

Unclip panel for door pillar at top (1) and remove towards top (2).

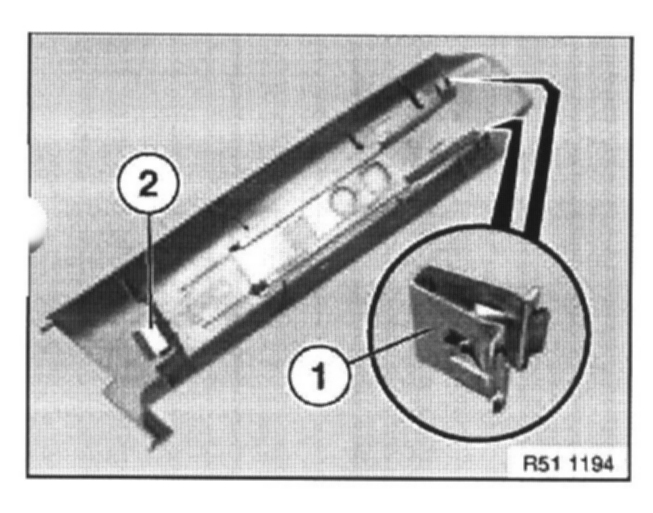

If necessary, remove clips (1) and insert in B-pillar. Guide (2) must not be damaged.
