Replacing Tailgate Trim At Top (Z3 Coupe, M Coupe)




Replacing Tailgate Trim At Top (Z3 Coupe, M Coupe)

Removing and installing tailgate trim,

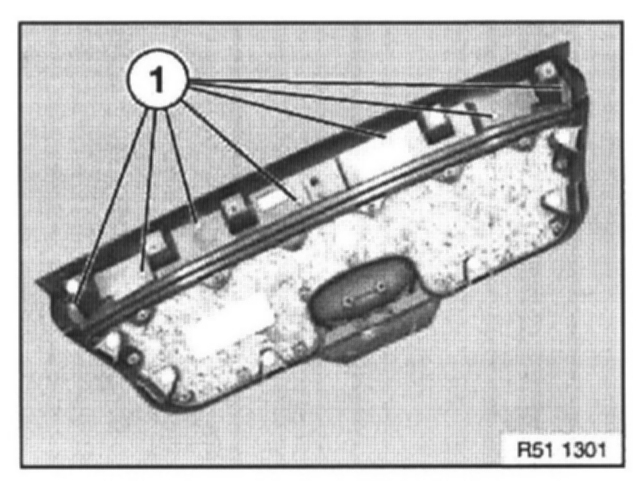

Unscrew bolts (1).

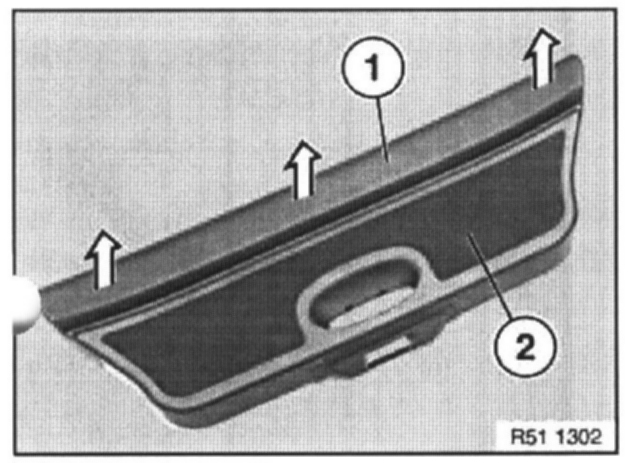

Pull tailgate trim (1) at top off panelling (2).
