Replacing Tailgate Trim At Bottom (Z3 Coupe, M Coupe)

Replacing Tailgate Trim At Bottom (Z3 Coupe, M Coupe)

Removing and installing tailgate trim at top,

Removing and installing insert on bottom tailgate trim,








Unscrew bolts (1).

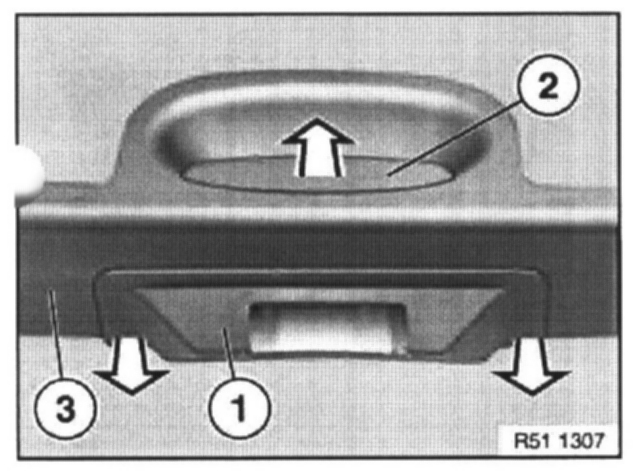

Pull off cover (1) for upper section of trunk lid lock and handle (2) off tailgate trim (3).







Installation:

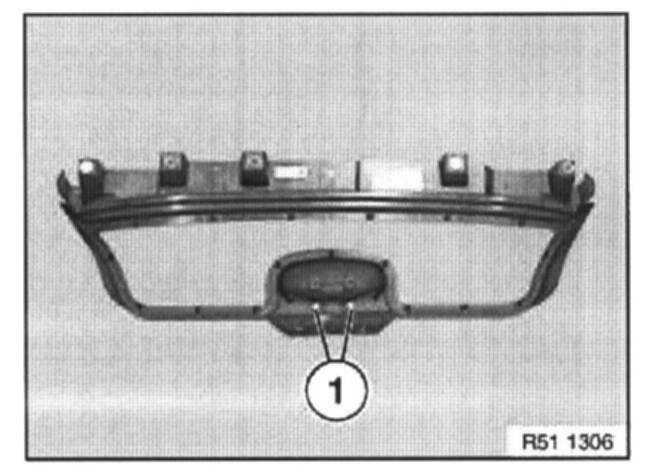

Insert new clips (1) and sheet metal nuts (2) in tailgate trim (3).
