Replacing Insert On Tailgate Trim At Bottom (Z3 Coupe, M Coupe)
Replacing Insert On Tailgate Trim At Bottom (Z3 Coupe, M Coupe)
Replacing Insert On
Tailgate
Trim At Bottom (Z3 Coupe, M Coupe)

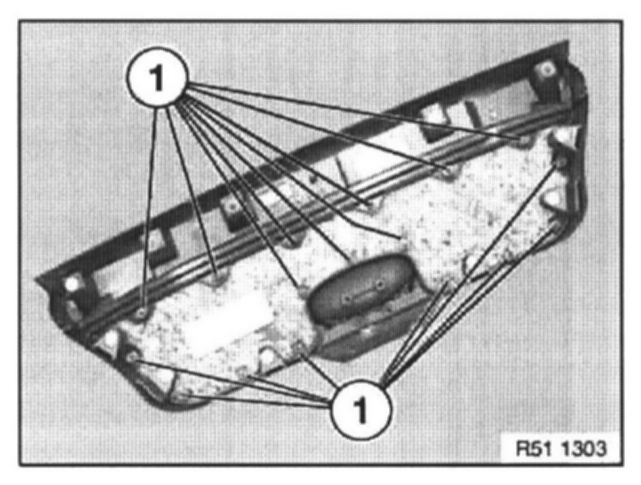

Unscrew bolts (1).

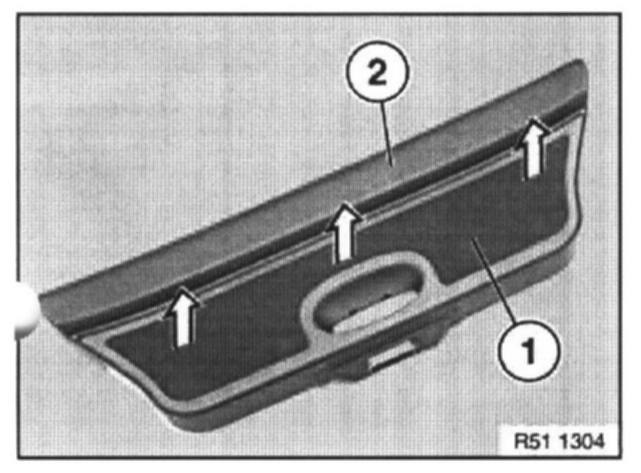

Pull insert (1) off
tailgate
trim (2).
Installation:

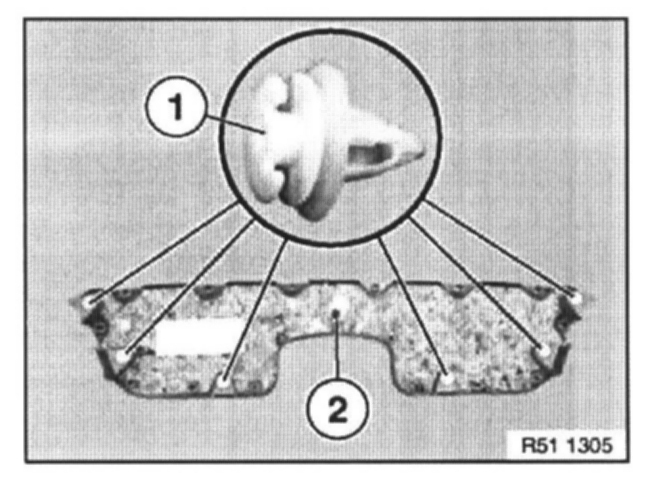

Insert new clips (1) in insert (2).
