Replacing (Entire) Tailgate Trim

Removing and Installing (Entire) Tailgate Trim (Z3 Coupe, M Coupe)

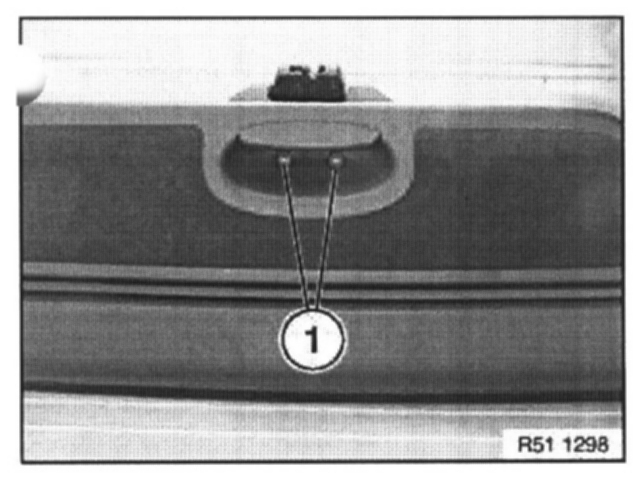

Pull off cover caps (1) and unfasten screws.

Installation:
Install new cover caps (1).

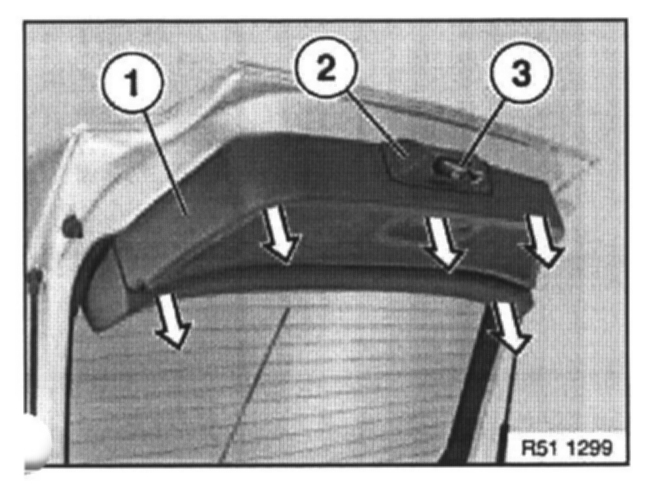

Unclip panelling (1) for tailgate downward.


NOTE: When removing panelling, do not damage trim (2) on upper section of trunk lid lock (3).







Installation:

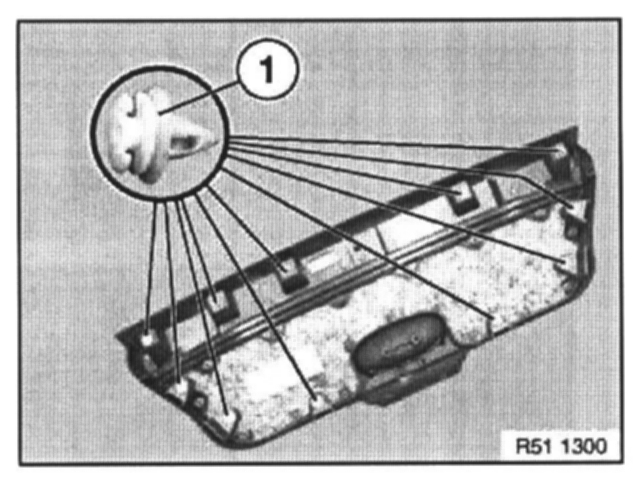

If necessary, replace defective clips (1).
