Antenna Amplifier: Service and Repair

Removing and Installing Antenna Amplifier (Rear Window)




- Remove left C-pillar trim,

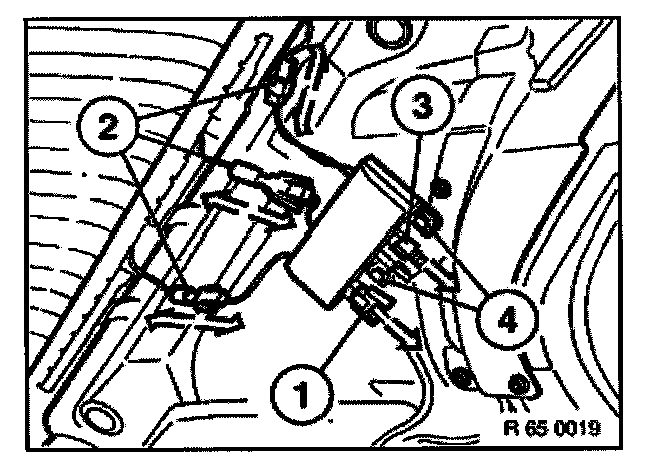

- Remove connector (1). Disconnect plug connection (2). Unscrew and remove antenna cable (3).
- Unfasten screws (4) and remove antenna amplifier.
