Evaporative Emission Control Canister: Service and Repair

Removing and installing / replacing active carbon filter

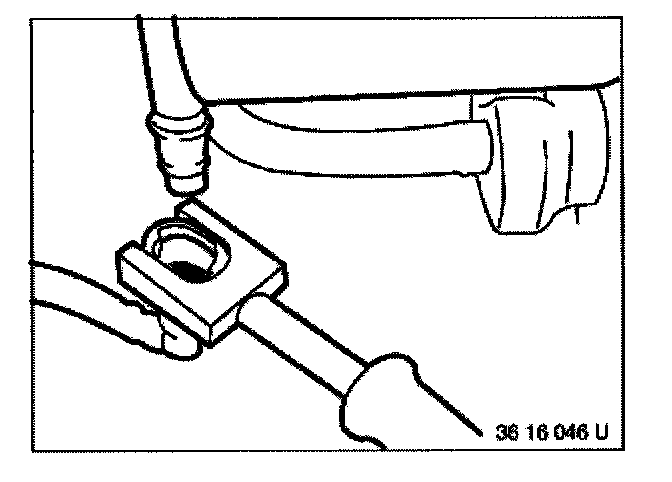

Release the connection nipple using special tool 16 1 040 and pull off the tank venting line.







M40

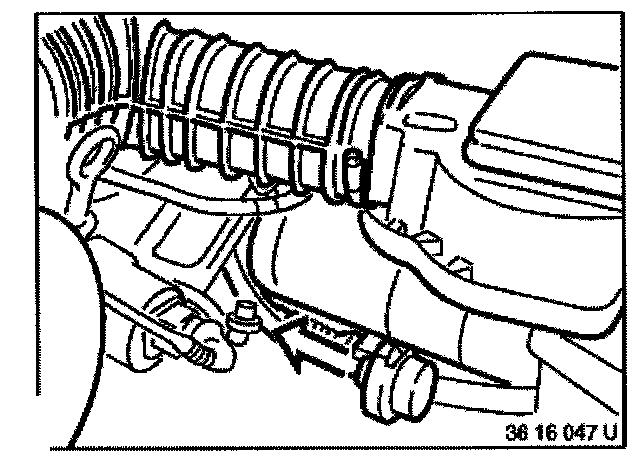

Pull hose off tank venting valve.







M50

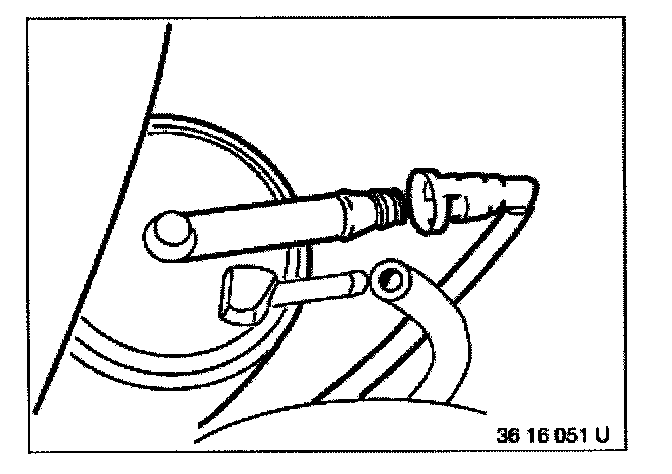

Pull hose off carbon canister.

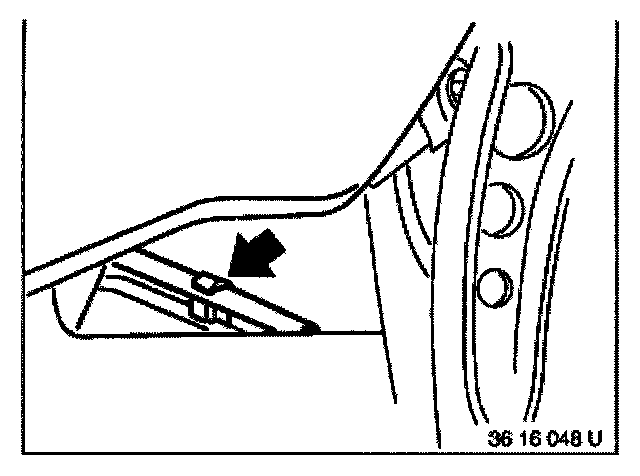

Unclip filter vent.







M40

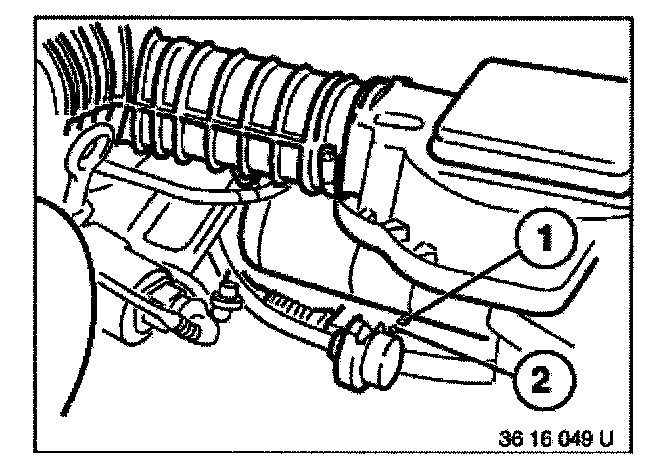

Release screws (1 and 2), remove activated carbon canister.







M50
Release screws (1 and 2), remove activated carbon canister.
