Timing Chain Tensioner: Service and Repair

Caution:
^ Strong spring force.
^ Unfasten cylinder for chain tensioning rod.

Installation:
Replace sealing ring.
Tightening torque, refer to Engine, Specifications.

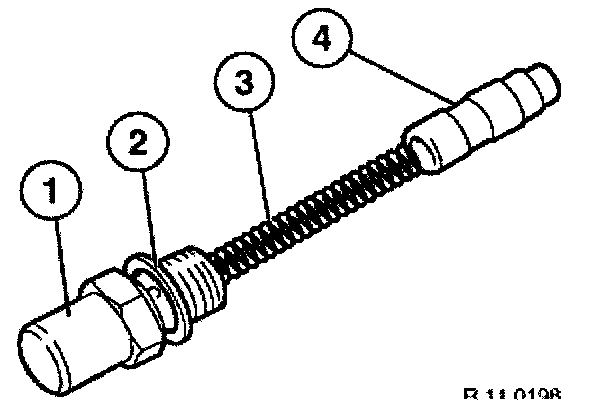

Arrangement of Components:
1 Cylinder for chain tensioning rod
2 Sealing ring
3 Spring
4 Piston
