Oil Level Warning Indicator: Service and Repair

Replacing Level Switch
- Switch Off ignition.
- Drain engine oil.




Version 1:

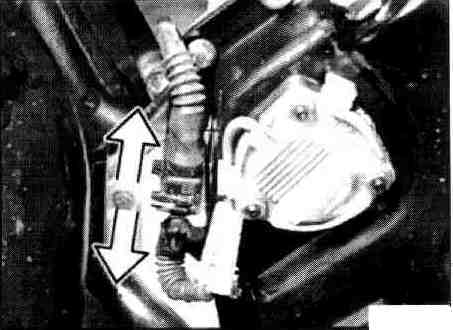

- Disconnect connector.




Version 2:

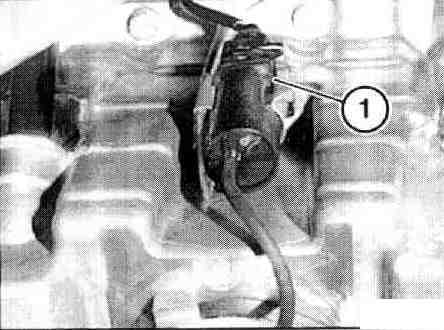

- Unfasten plug connection (1).

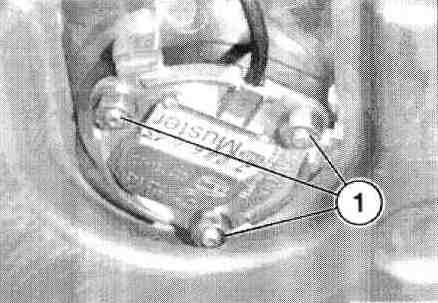

- Unscrew bolts (1).
- Remove switch.

Installation:
- Clean sealing face on oil pan, check gasket on switch and replace if necessary.
- Top up engine oil.
