FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM: Car repair manuals for everyone.
Home >> BMW >> 1999 >> 328i Convertible (E36) L6-2793cc 2.8L DOHC (M52) >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Diagrams >> Electrical Diagrams >> Slip Control (ABS/ASC) >> Slip Control (ABS/ASC)

Slip Control (ABS/ASC)

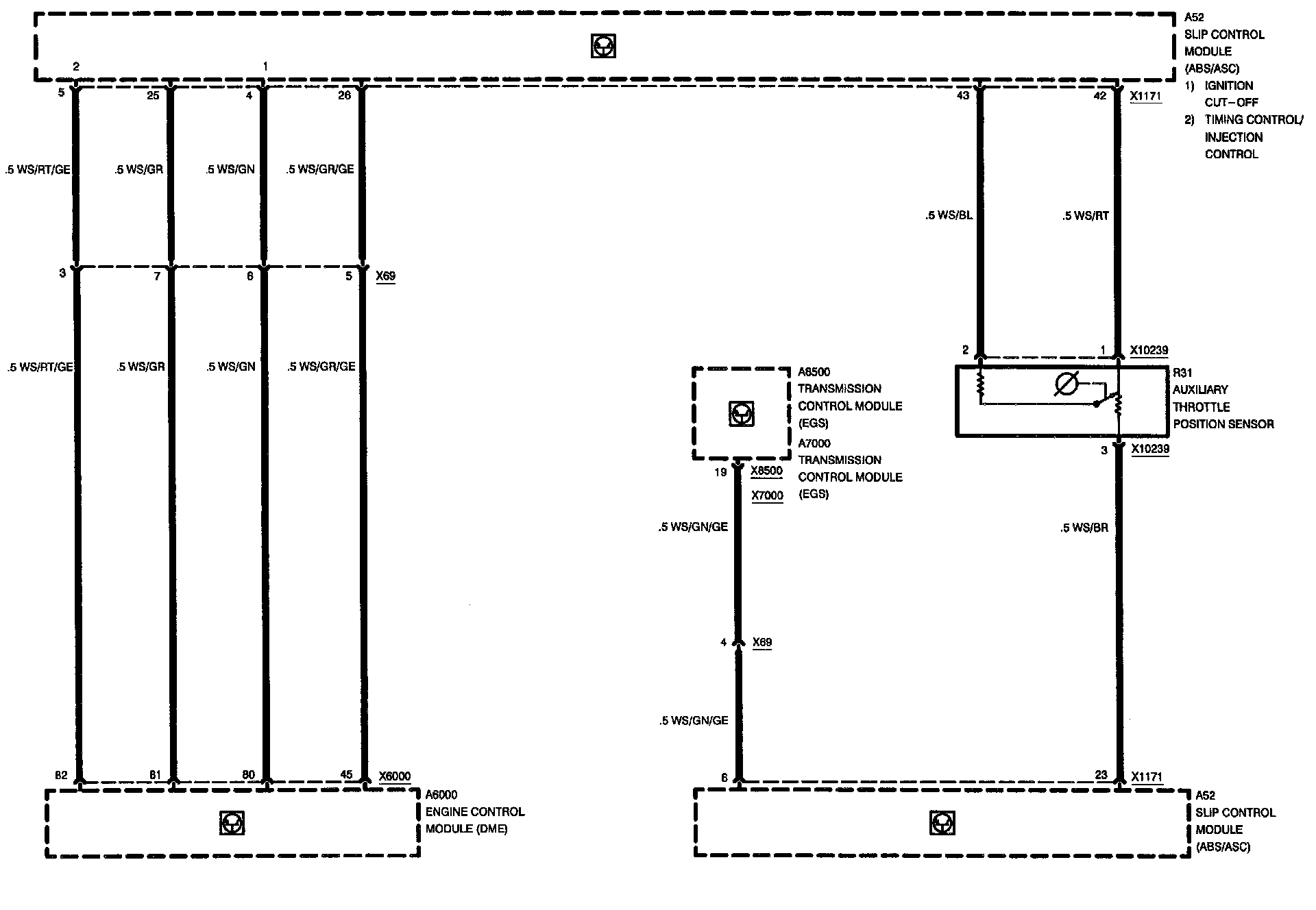

Slip Control (ABS/ASC) (Part 1 Of 5)

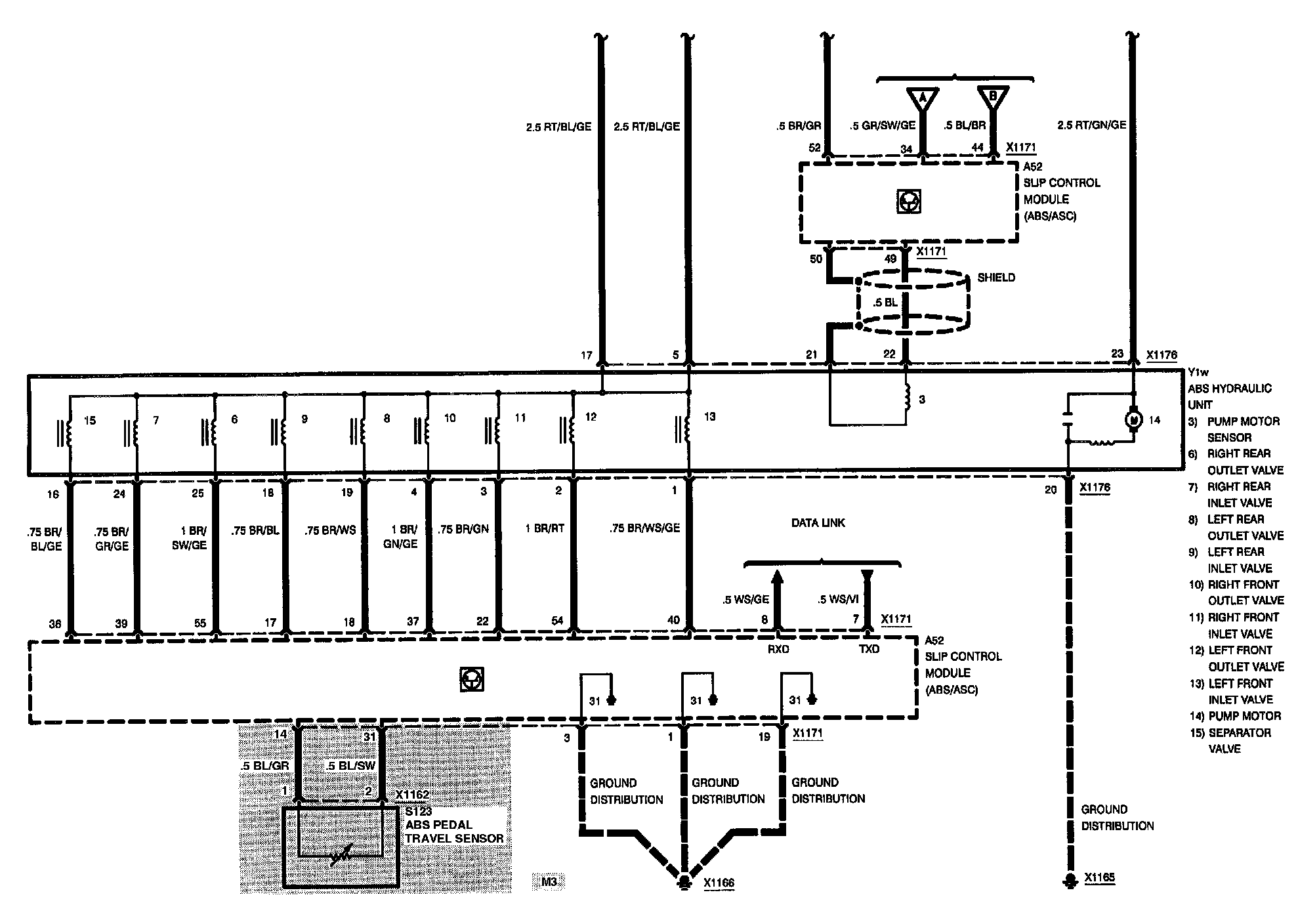

Slip Control (ABS/ASC) (Part 2 Of 5)

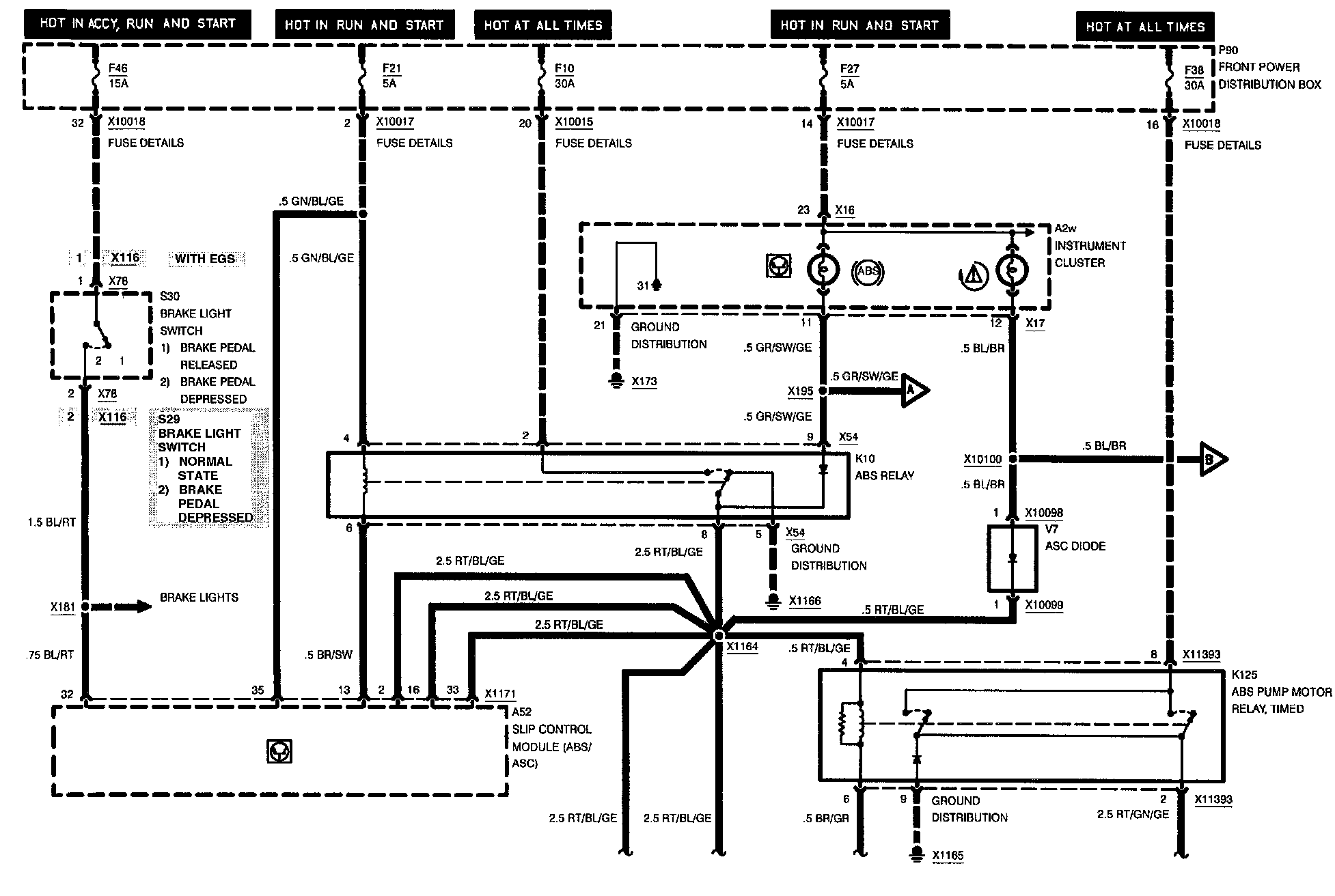

Slip Control (ABS/ASC) (Part 3 Of 5)

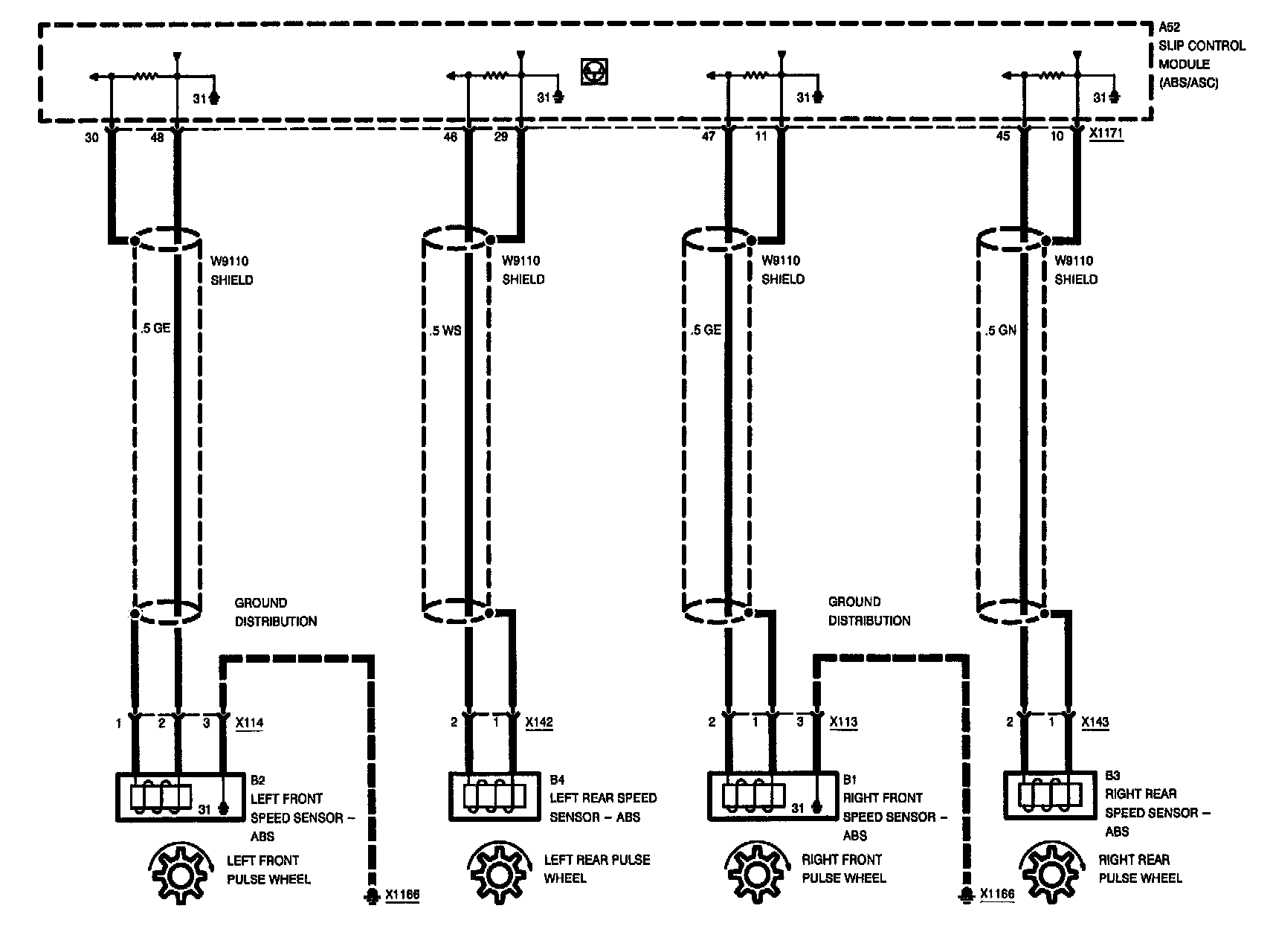

Slip Control (ABS/ASC) (Part 4 Of 5)

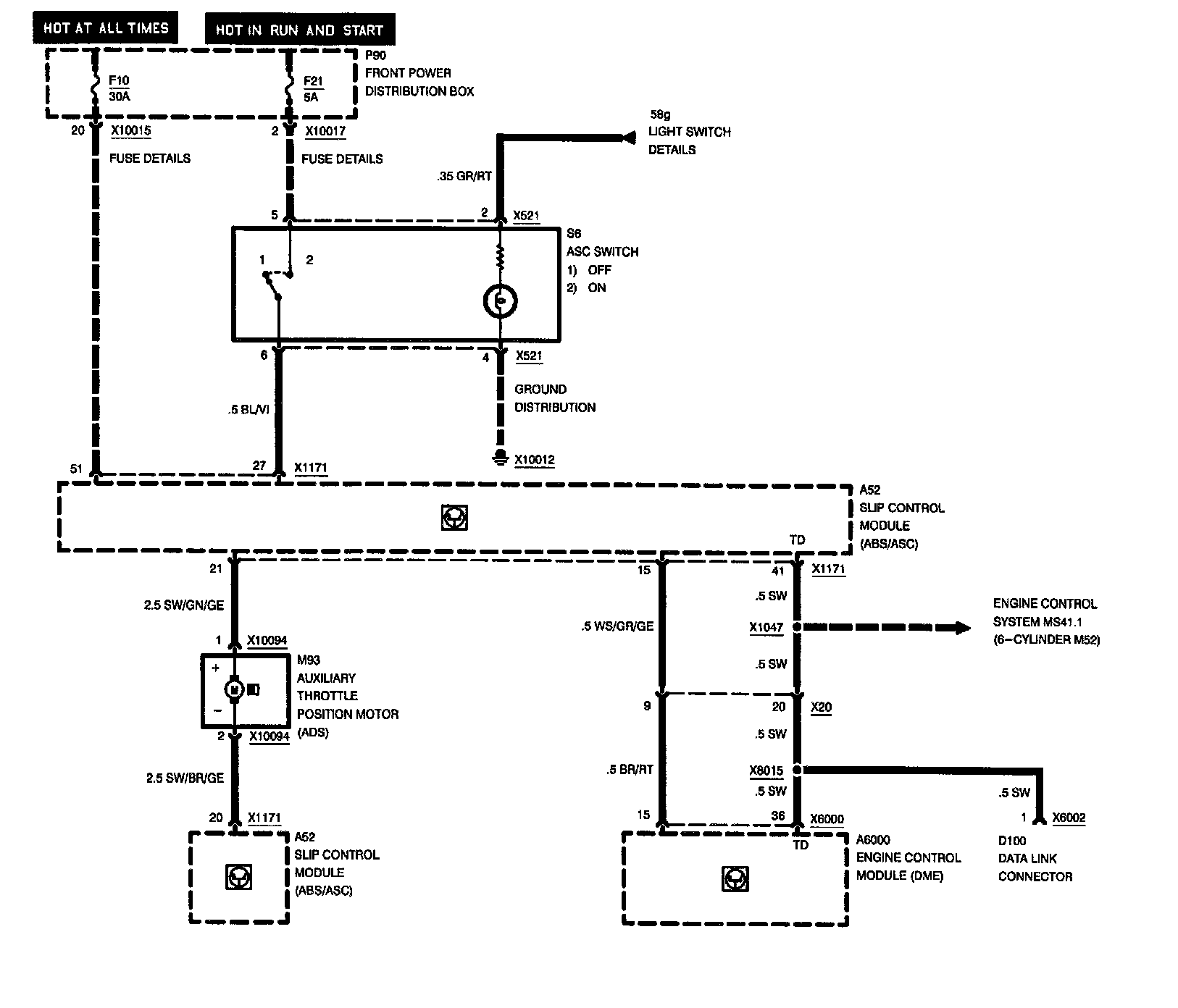

Slip Control (ABS/ASC) (Part 5 Of 5)
