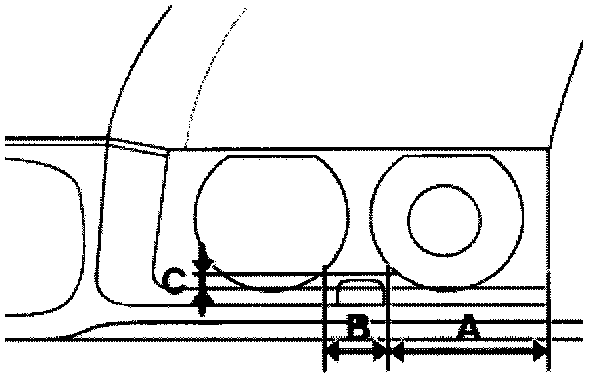

Headlamp Washer Spray Nozzle: Adjustments

- Contact point of sprayed water jet
- In run-in state:
- Distance A 140 mm
- Distance B 55 mm
- Distance C 15 mm
- Adjust spray nozzles with help of special tool 00 9 100.
- Contact point of sprayed water jet
- In run-out state: middle of headlight.
