M3 Convertible (E36) L6-3152cc 3.2L DOHC (S52)
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Windows
>>
Diagrams
>>
Electrical Diagrams
>>
Output Details
Output Details

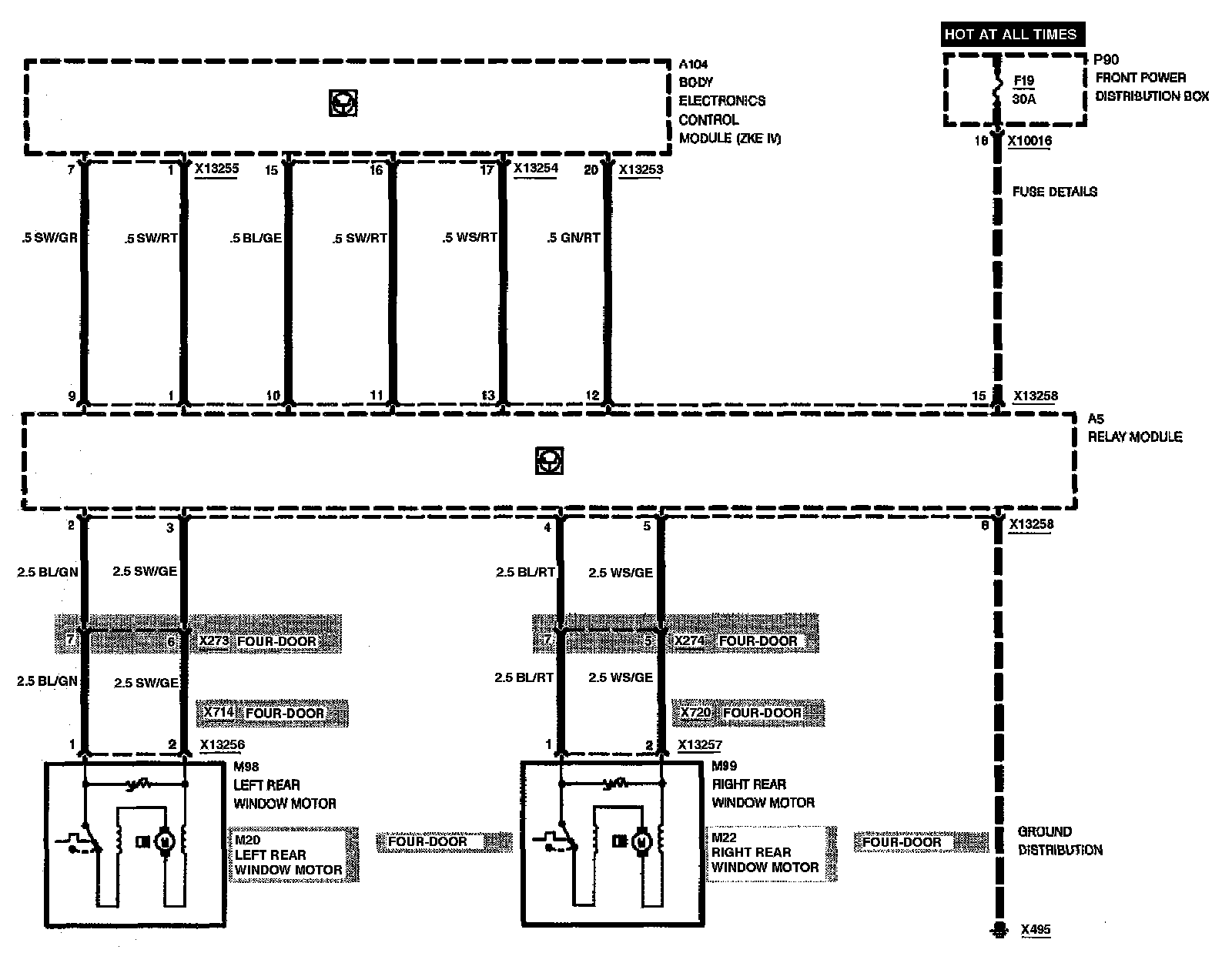

Power Windows (FH): Output Details (Part 1 Of 2):

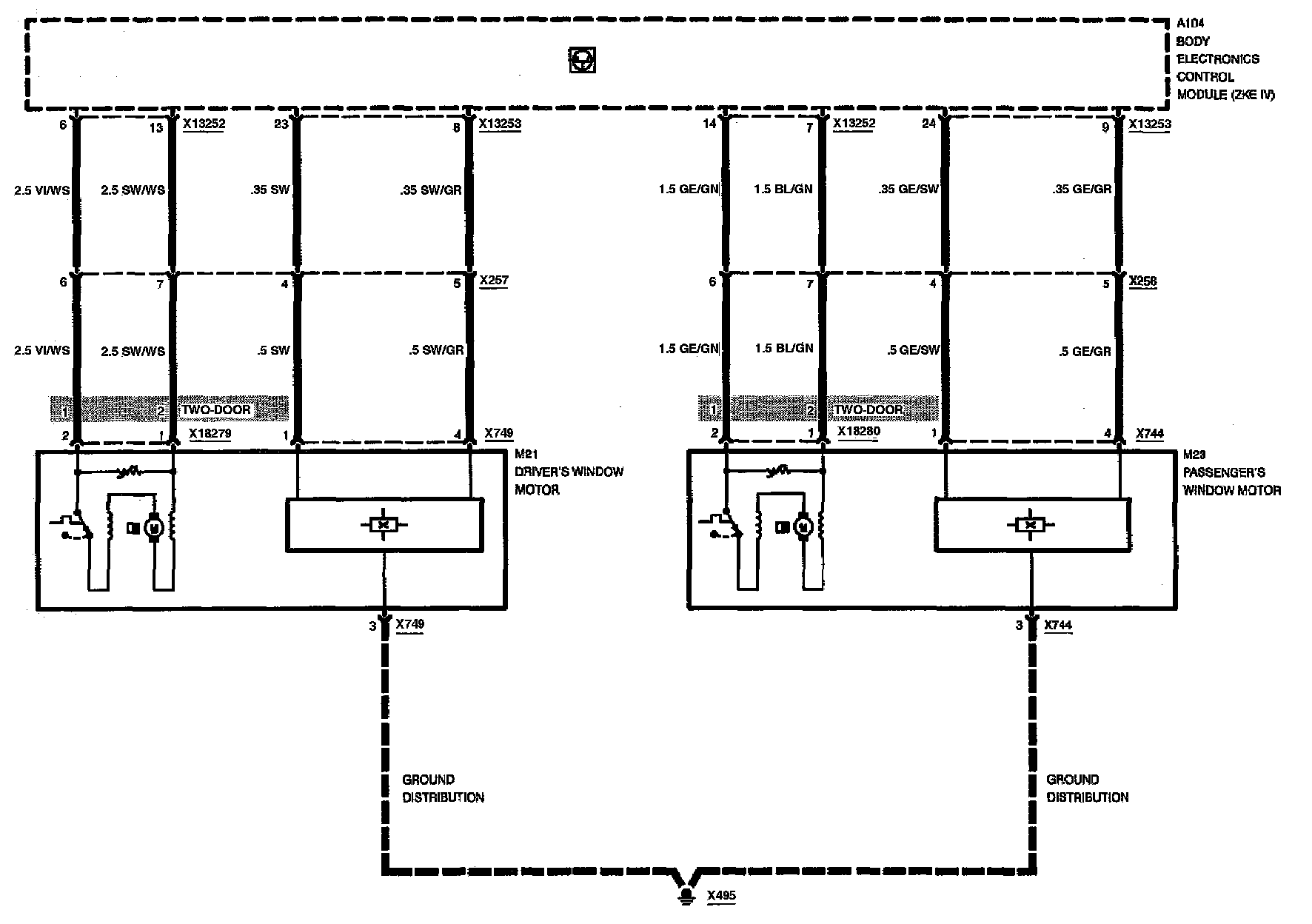

Power Windows (FH): Output Details (Part 2 Of 2):
