Sub-System Diagrams

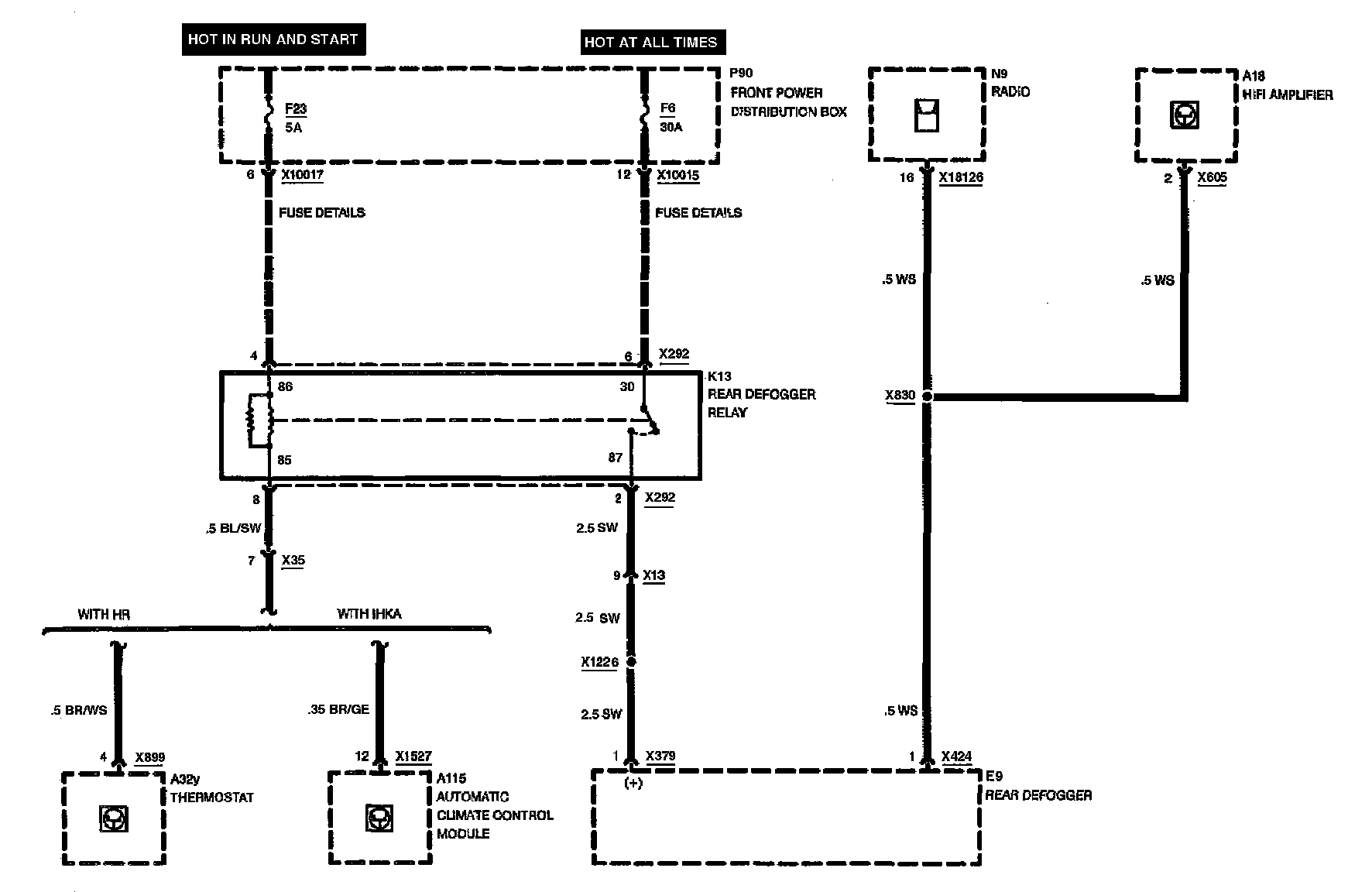

Rear Window Defogger/Antenna: Sub-System Diagrams:

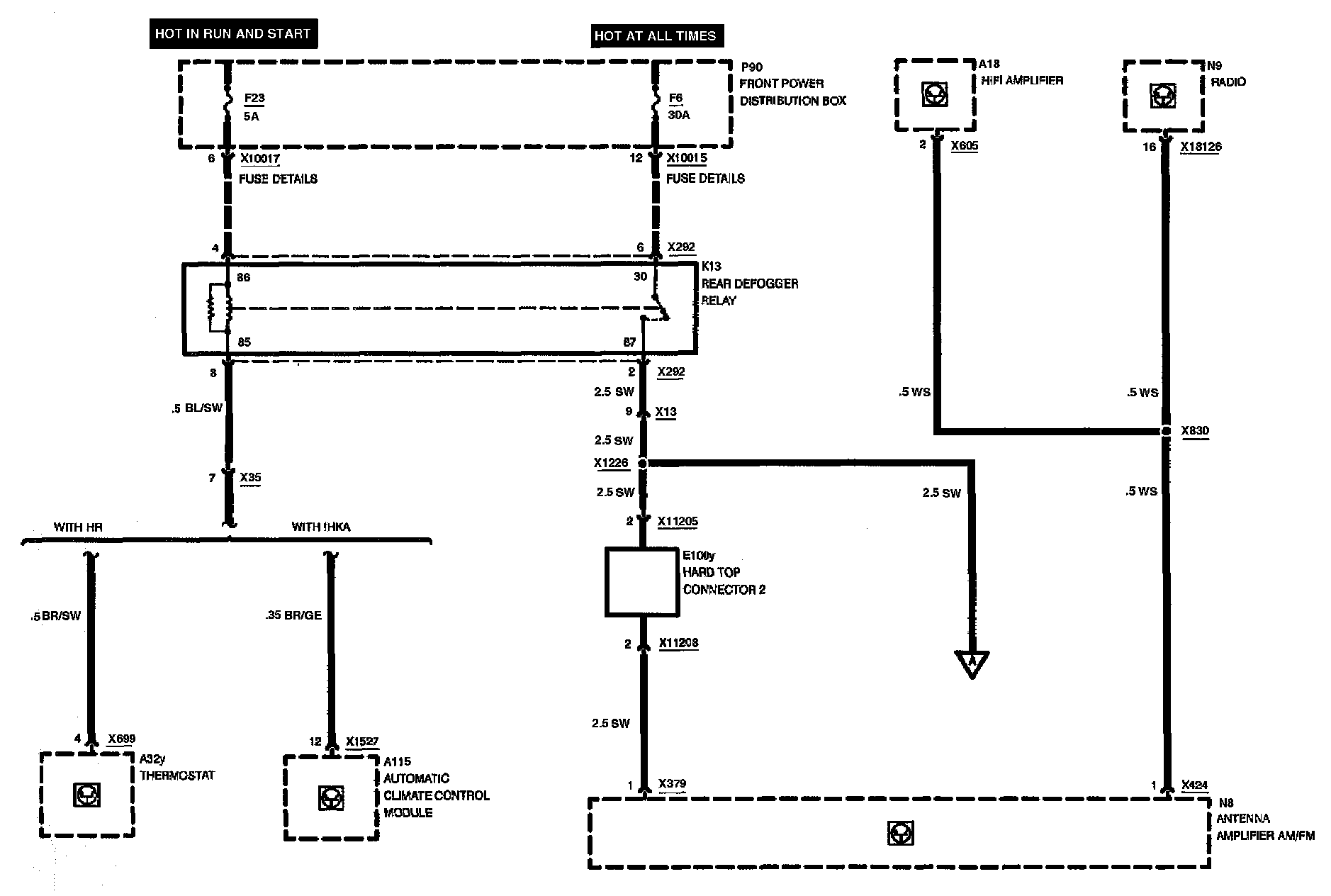

Rear Window Defogger/Antenna: Sub-System Diagrams:

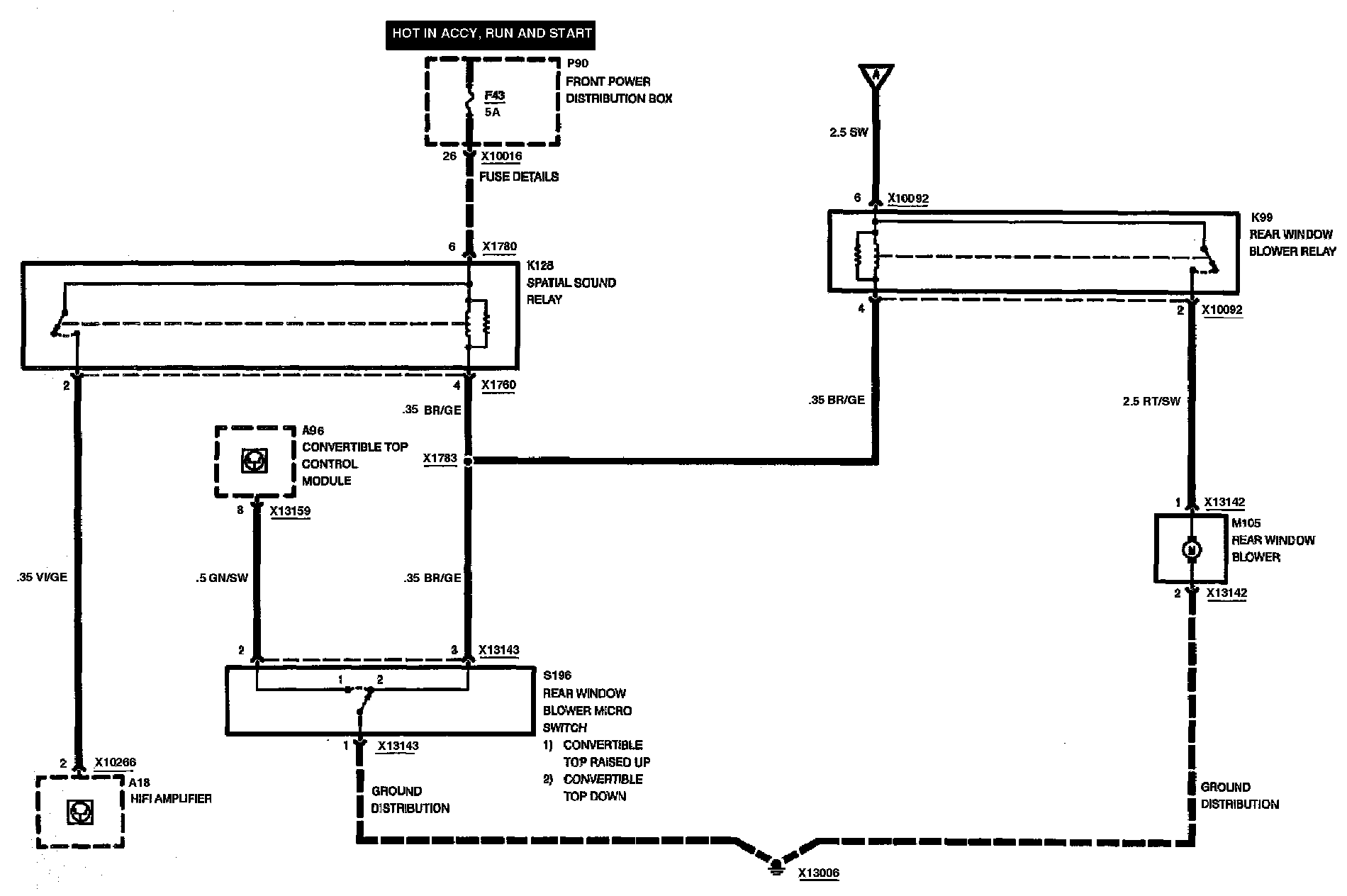

Rear Window Defogger/Antenna: Sub-System Diagrams:
