Replacing Shift Arm For Shift-Lever Mount

Replacing Shift Arm For Shift-Lever Mount




- Remove propeller shaft from transmissions, Service and Repair
- Remove shift lever, refer "Replacing Complete Shift Lever"

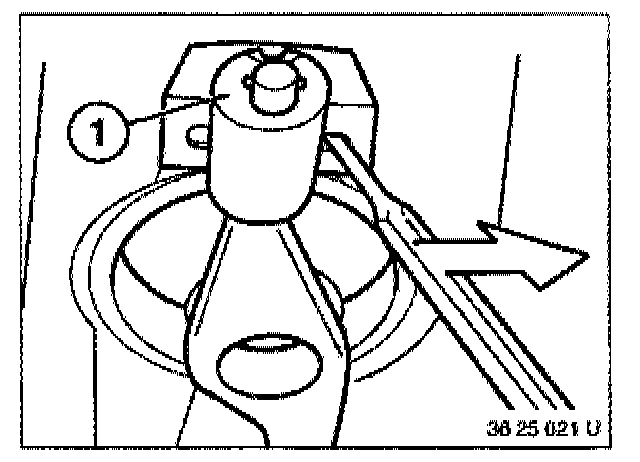

- Using a mandrel, release thrust bearing (1) from bracket.




Installation;

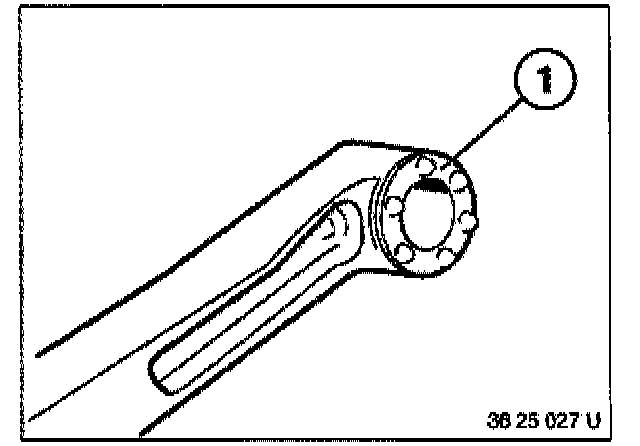

- Clip mount (1) in holder with arrow (2) facing up.




- Support transmission from underneath.
- Unscrew cross member from body.
- Lower transmission.

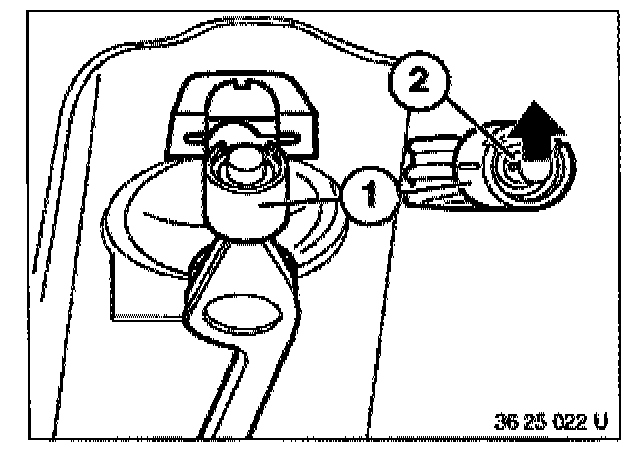

- Lift spring (1) off tab (2) on case using a screwdriver and swing upwards.
- Pull out shaft.

Installation:
- Insert shaft pin with Kluber Polylub GLY 801




- Remove shift arm.

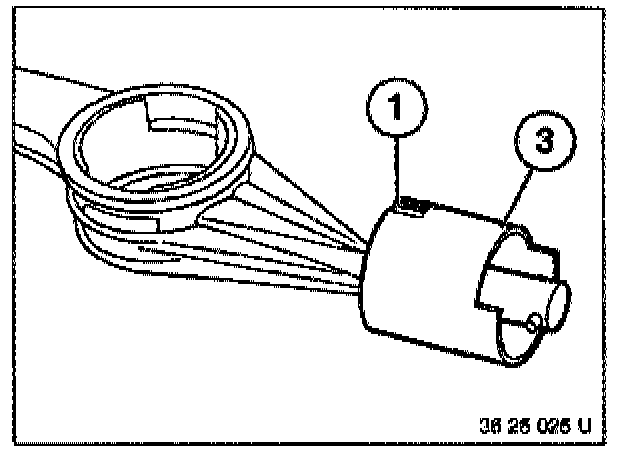

- Pull off mount (1).

Installation:
- Position mount with opening (3) facing rear of vehicle.
- Coat mount with Kluber Polylub GLY 801




When replacing bearing sleeve:
- Press out bearing sleeve.
- Coat new bearing bush with Circolight and press into place.
