Replace Shift Rod Joint

Replace Shift Rod Joint

- Remove transmission propeller shaft, Service and Repair

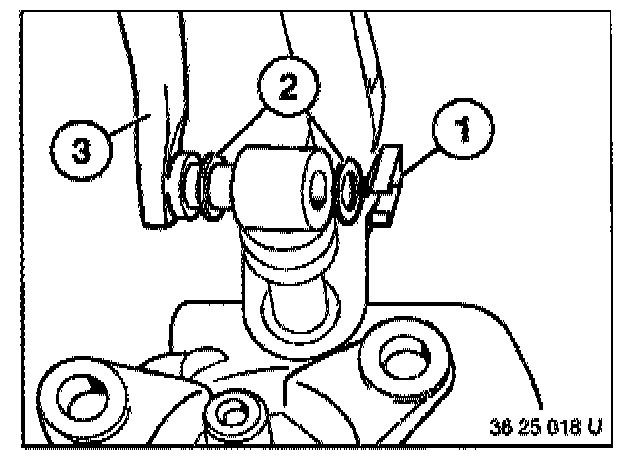

- Remove retainer (1).
- Remove washer (2).
- Remove selector rod (3).

Installation:
- Coat bearing with Kluber Polylube GLY 801

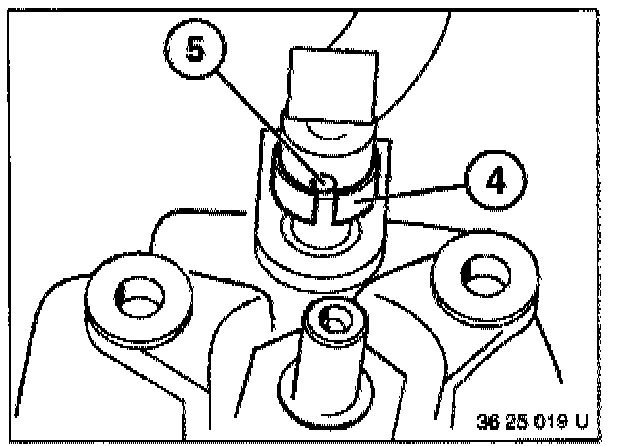

- Slide back retaining sleeve (4).
- Drive out cylindrical pin (5).




Installation:

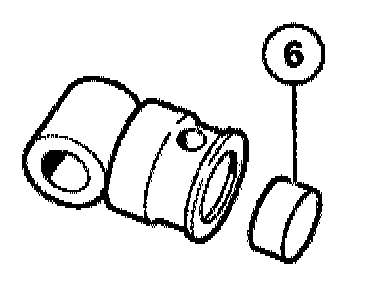

- Check damping disc (6) in joint and replace if necessary.
