Flywheel: Service and Repair

Removing and Installing or Replacing Flywheel

(clutch removed)

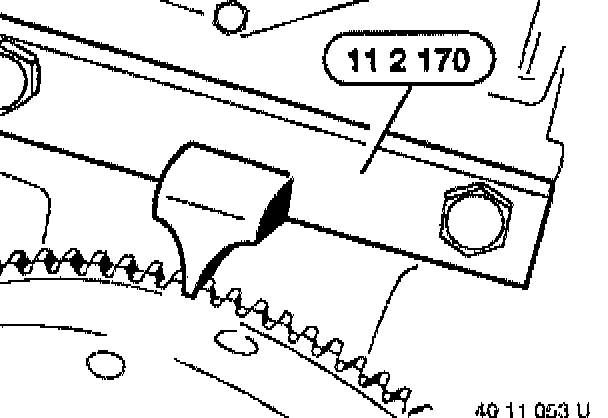

Arrest flywheel with Special Tool 11 2 170.

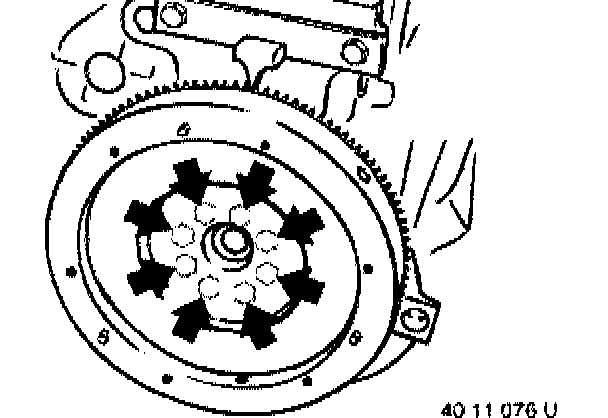

Unfasten screws and remove flywheel.




Installation:
Remember to fit hollow bush.




Installation:

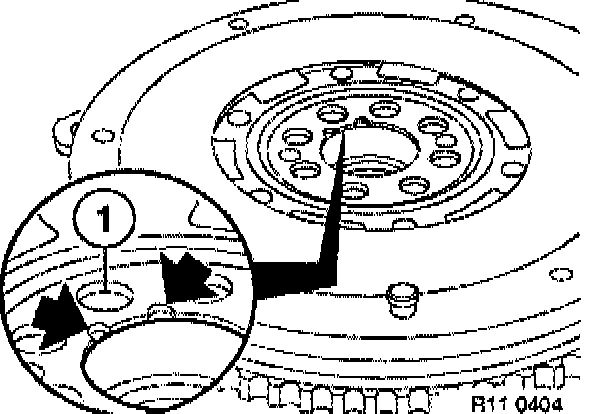

The position of the dowel sleeve (1) in the dual-mass flywheel is marked with two notches beside the respective screw bore.




Installation:

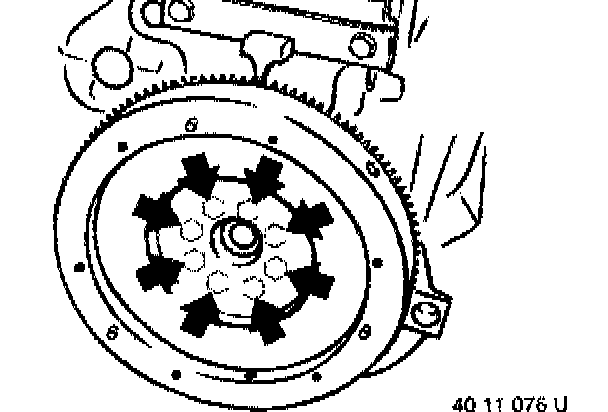

Clean thread and install new micro-encapsulated screws.
Tightening torque: 105 Nm (78 ft lb)
