Output Shaft Bearing/Bushing: Service and Repair

Replacing bearing on transmission extension

(output flange removed, refer to Output Yoke A/T)

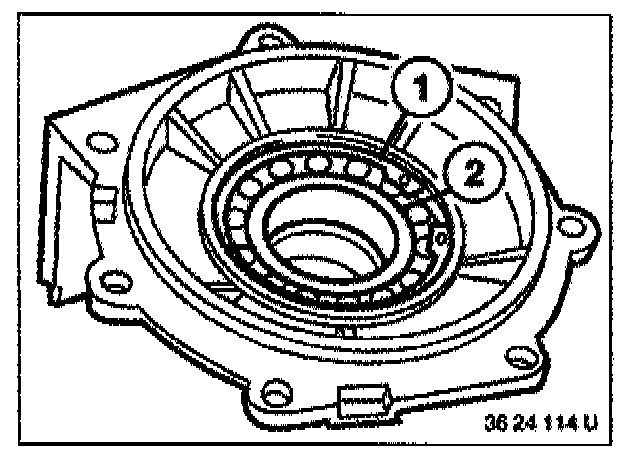

Lift out circlip (1).
Remove ball ring (2).





Heat transmission extension beside bearing race to approx. 80°C (hot air blower).
Remove bearing race (3).

Installation:
First insert ball ring (4) before installing bearing race.

Caution: Axial play must be checked and, if necessary, adjusted, refer to Output Yoke A/T, Service and Repair
