Home >> BMW >> 1998 >> M3 Convertible (E36) L6-3152cc 3.2L DOHC (S52) >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Fuse >> Diagrams >> Electrical Diagrams >> Fuses 8 and 9

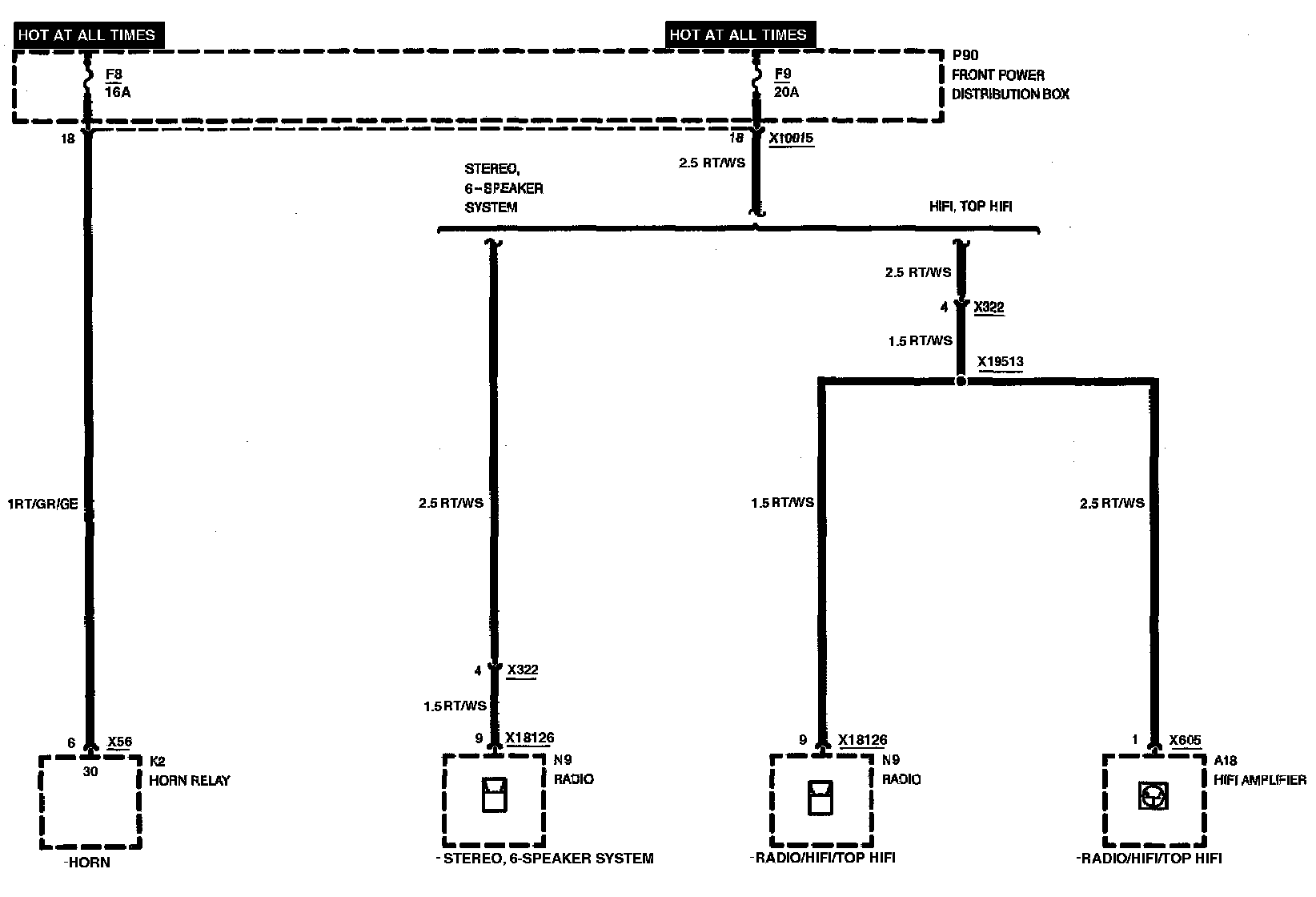

Fuses 8 and 9

Fuse Details: Fuses 8 And 9:
