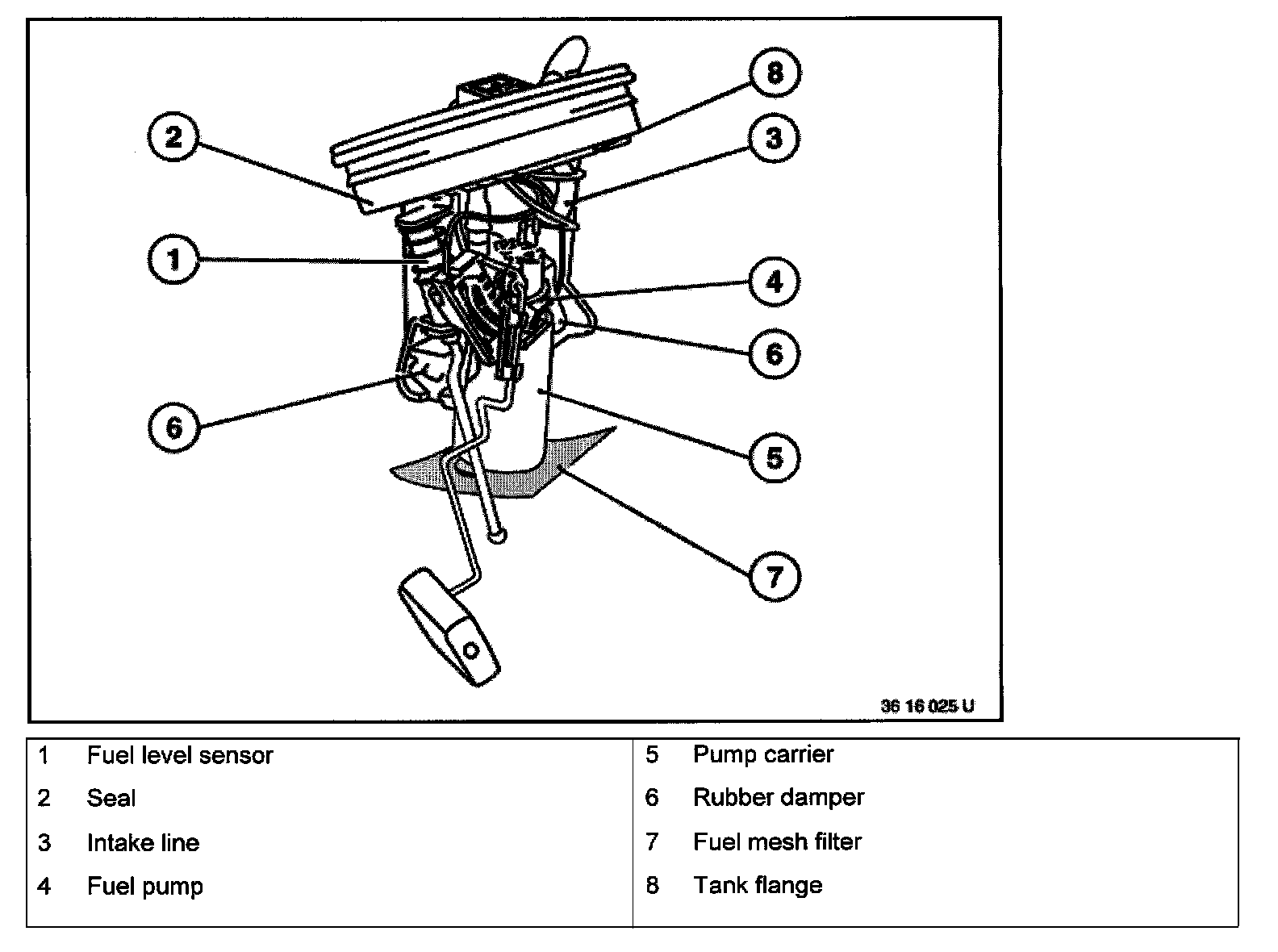

Survey of Fuel Delivery Unit (Right)
Survey of Fuel Delivery Unit (Right)
Survey Of Fuel Delivery Unit (Right)

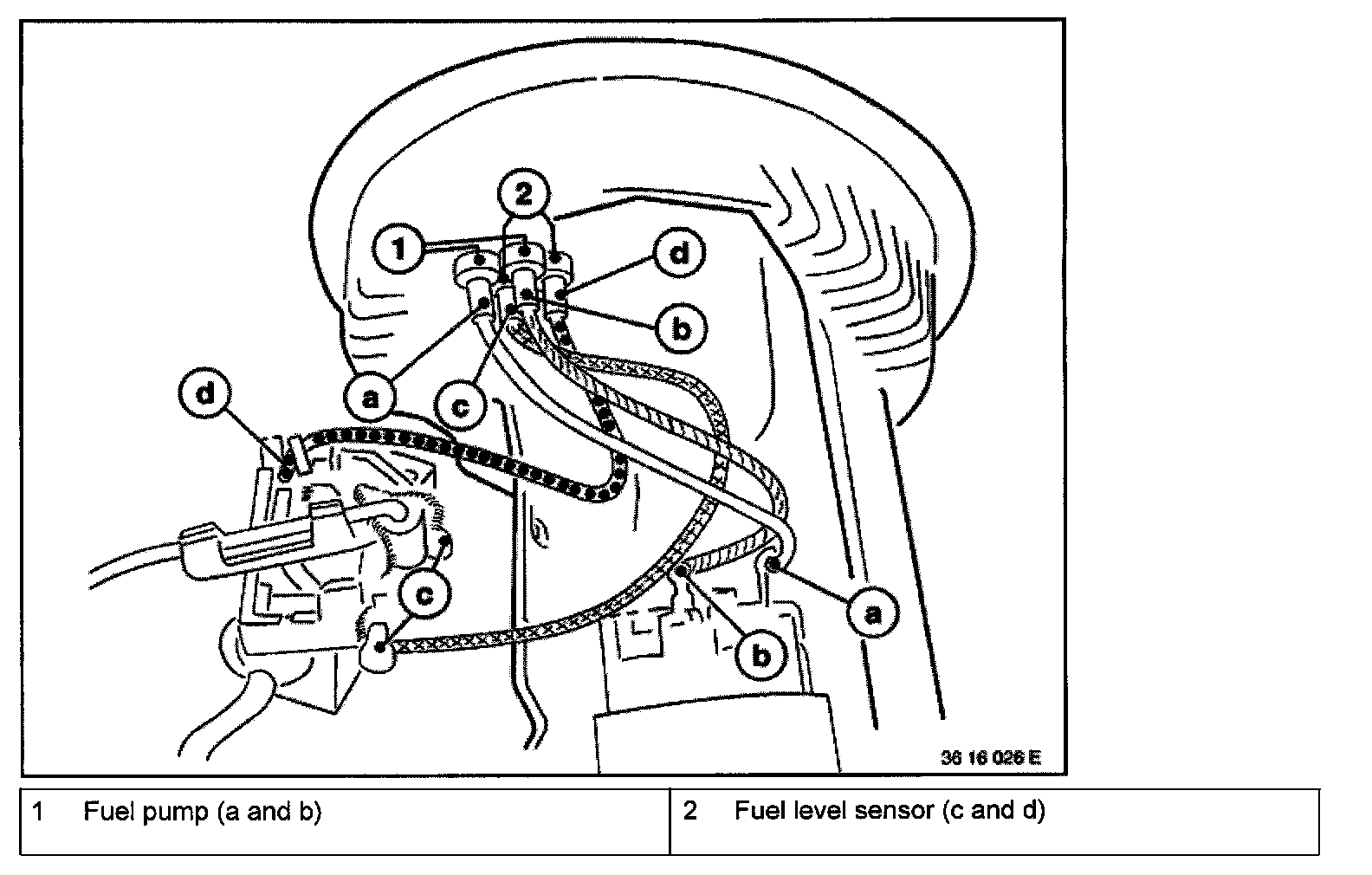

Plug Pin Connection:
