Pedal

CAUTION:
- A removed accelerator pedal must always be replaced as removing will damage the retaining clips.
- This would allow the pedal to slide out of its holder and could cause an accident!

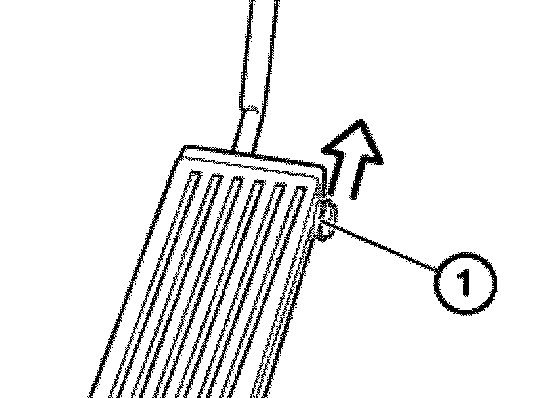

- Press off locking washer (1).
- Disconnect pedal.
- Installation:
Lubricate sliding surfaces with grease. Fluid Type Specifications

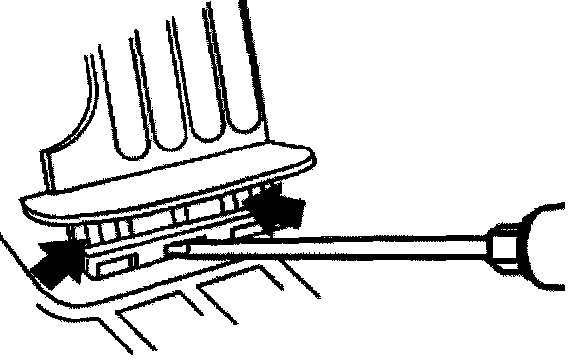

- Press down on carpet, unbend retaining clips and lever out accelerator pedal in upwards direction.





- Installation:

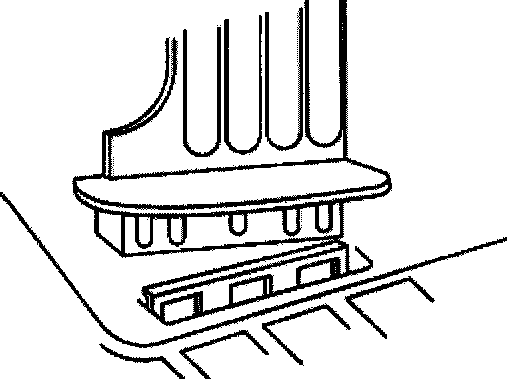

Install accelerator pedal with pocket on holder on floor plate and snap retaining clips into place.

CAUTION: To be absolutely sure, check that retaining clips have snapped into place.
