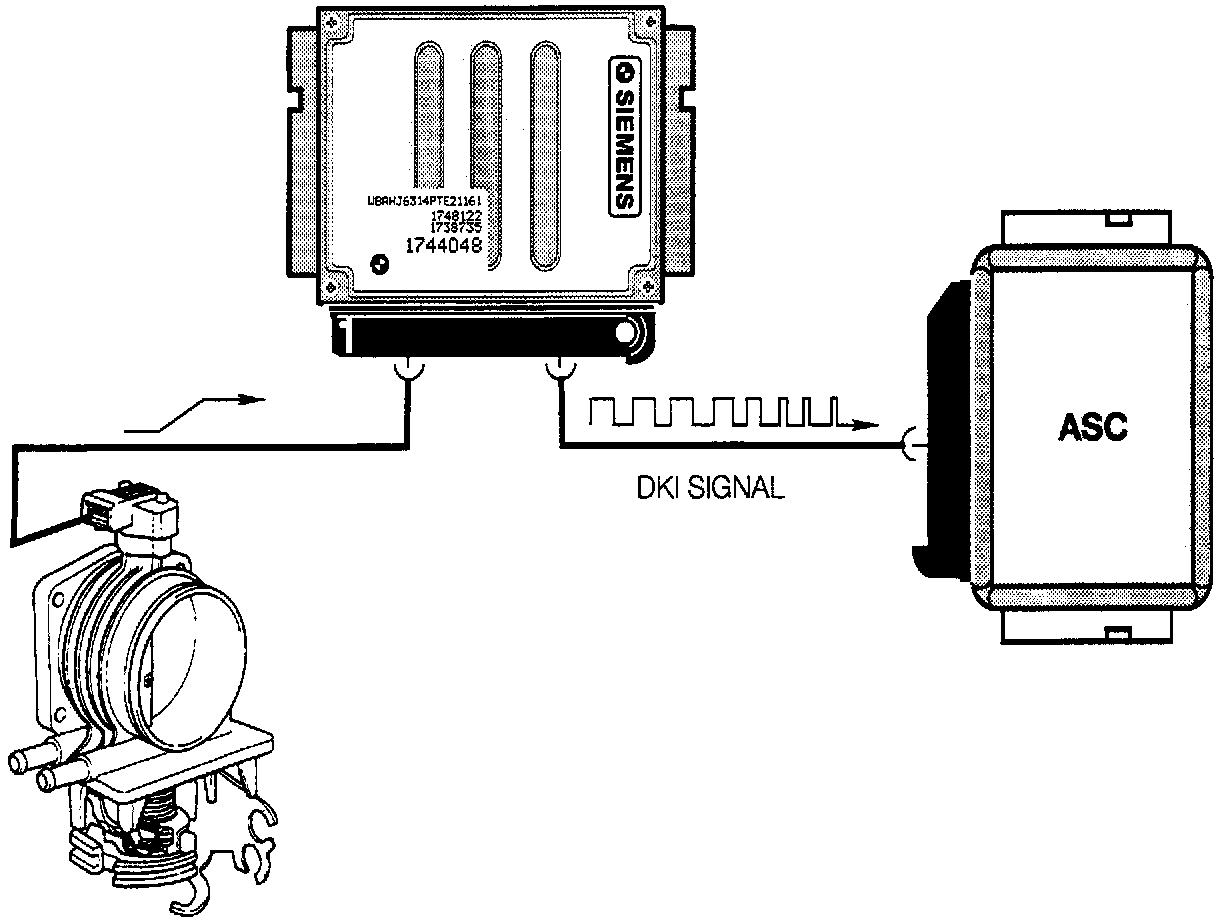

DKI - (MS41.1 to ASC Interface)

DKI is the throttle position signal to the ASC Control Module (if equipped). This output signal is used by the ASC control module during ASC regulation. DKI is a pulse width modulated signal and follows the same characteristics as the DKI signal of the BOSCH DME systems.
