Air Conditioning Interfaces

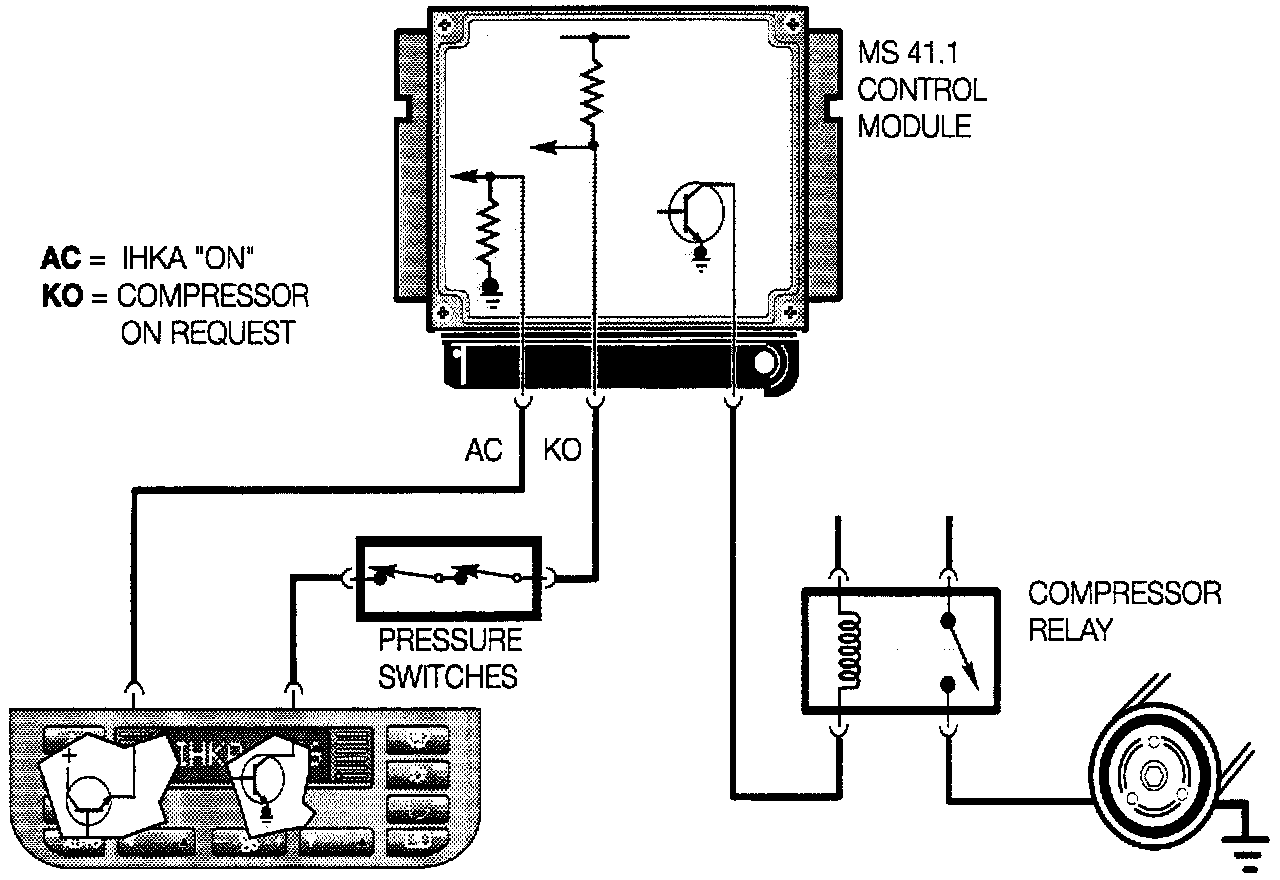

The IHKA control module provides two input signals to the MS41.1 Control Module. The two signals are used by the control module for idle stabilization and compressor regulation.

These signals are the same high-low type used by the Bosch engine management systems.
