Home >> BMW >> 1998 >> M3 Convertible (E36) L6-3152cc 3.2L DOHC (S52) >> Repair and Diagnosis >> Heating and Air Conditioning >> Diagrams >> Electrical Diagrams >> Park Ventilation >> With HR

With HR

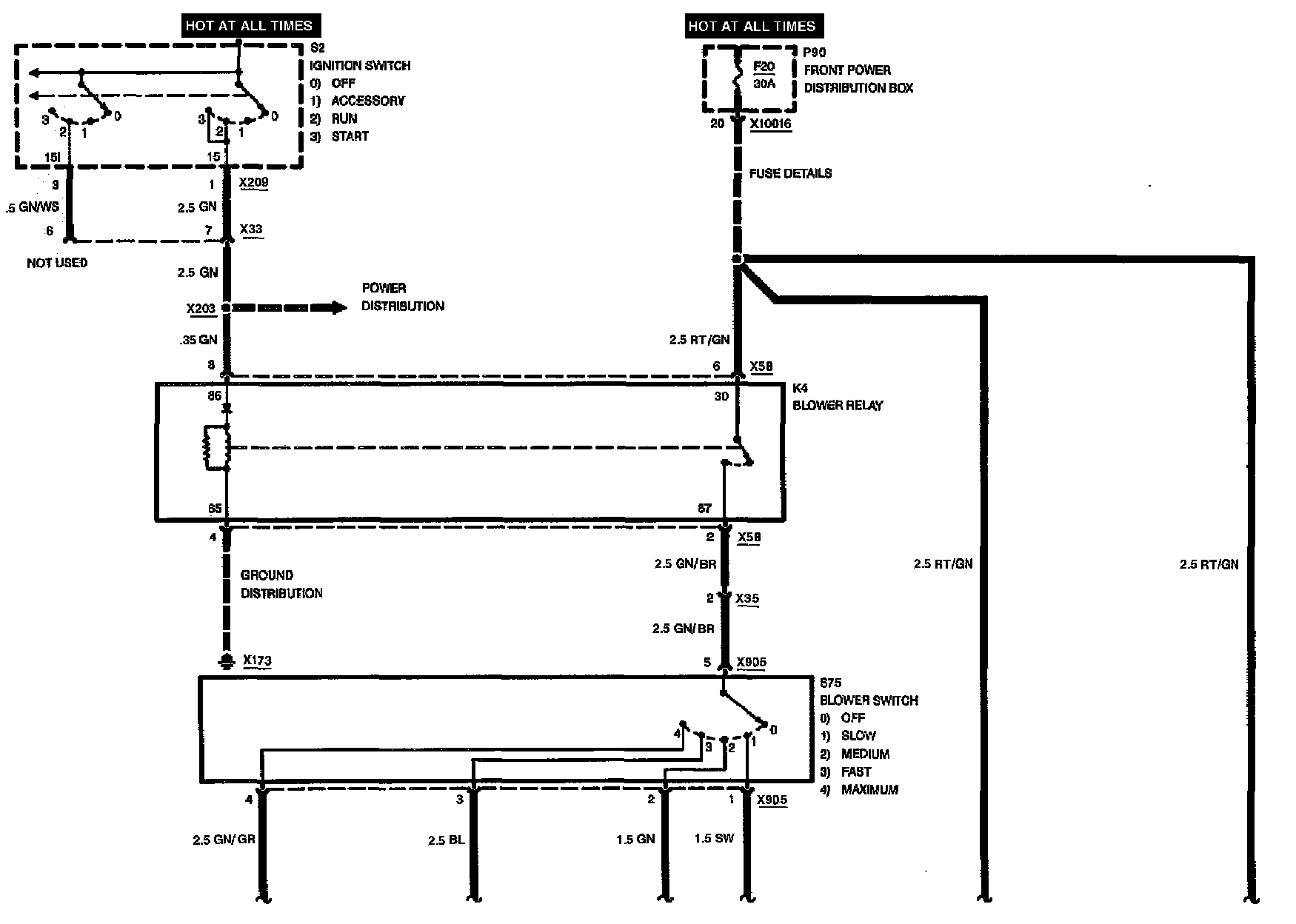

Park Ventilation With HR (Part 1 Of 2):

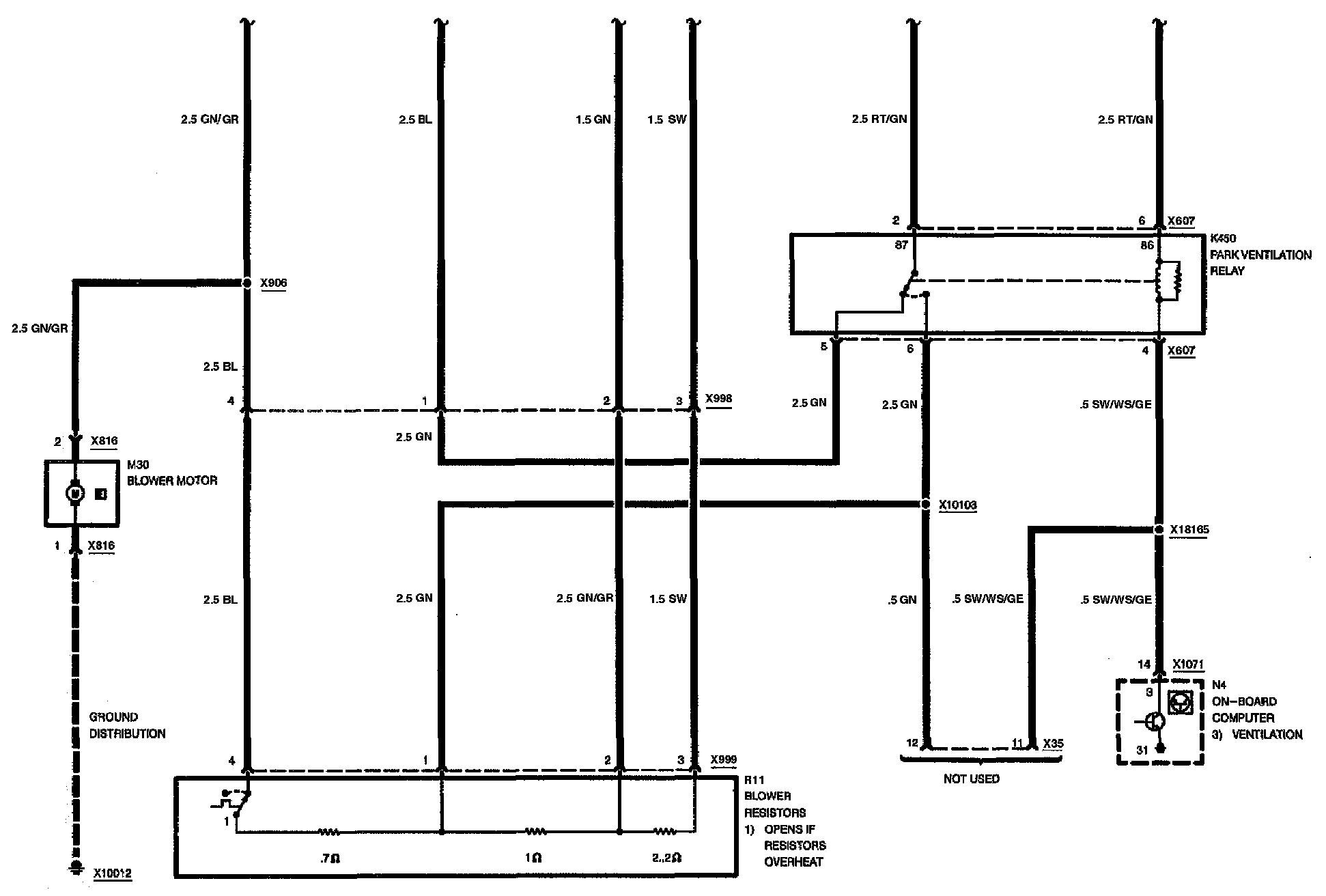

Park Ventilation With HR (Part 2 Of 2):
