Damper Assembly

Unscrew and remove splash guard.
Remove fan impeller with fan clutch, refer to Cooling System.
Replace alternator drive belt; refer to Drive Belts, Mounts, Brackets and Accessories, Drive Belt.

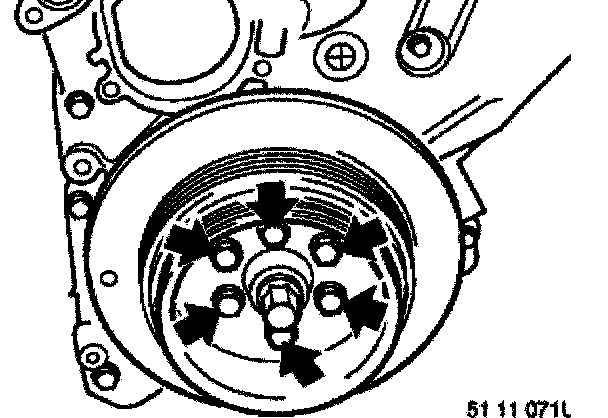

Unscrew vibration damper bolts and take off vibration damper.
Tightening Torque, refer to Engine Specifications.

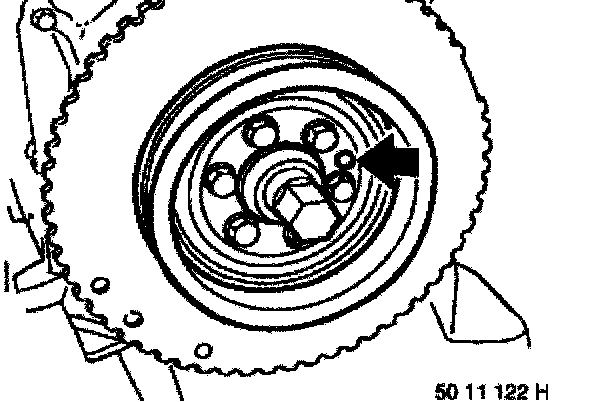

Installation: Align locating bore in vibration damper with dowel.
