Throttle Position Sensor
Throttle Position Sensor

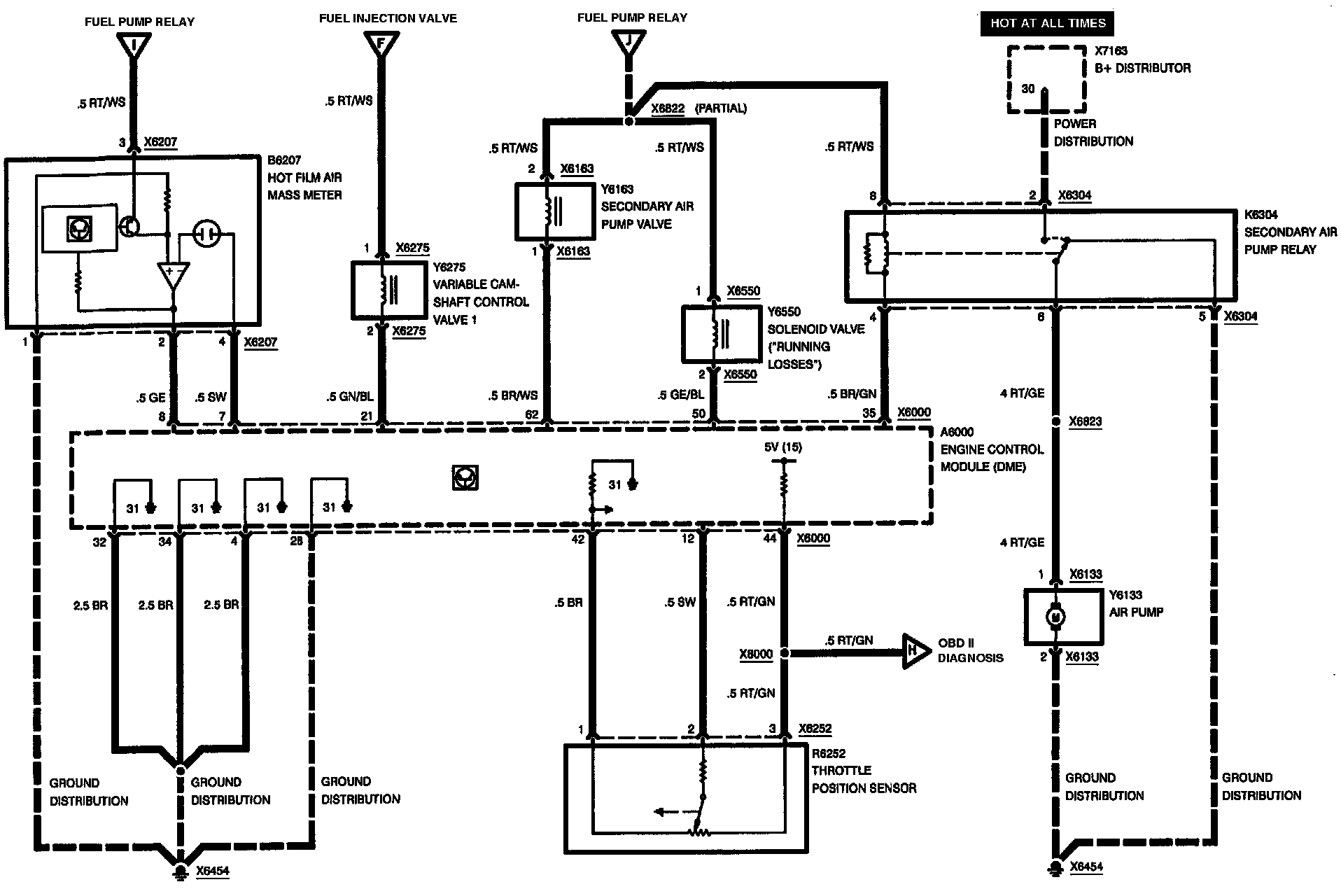

Engine Control System MS41.1 (6-Cylinder M52): Throttle Position Sensor:
