Knock Sensor and Crankshaft Position/RPM Sensor
Knock Sensor and Crankshaft Position/RPM Sensor

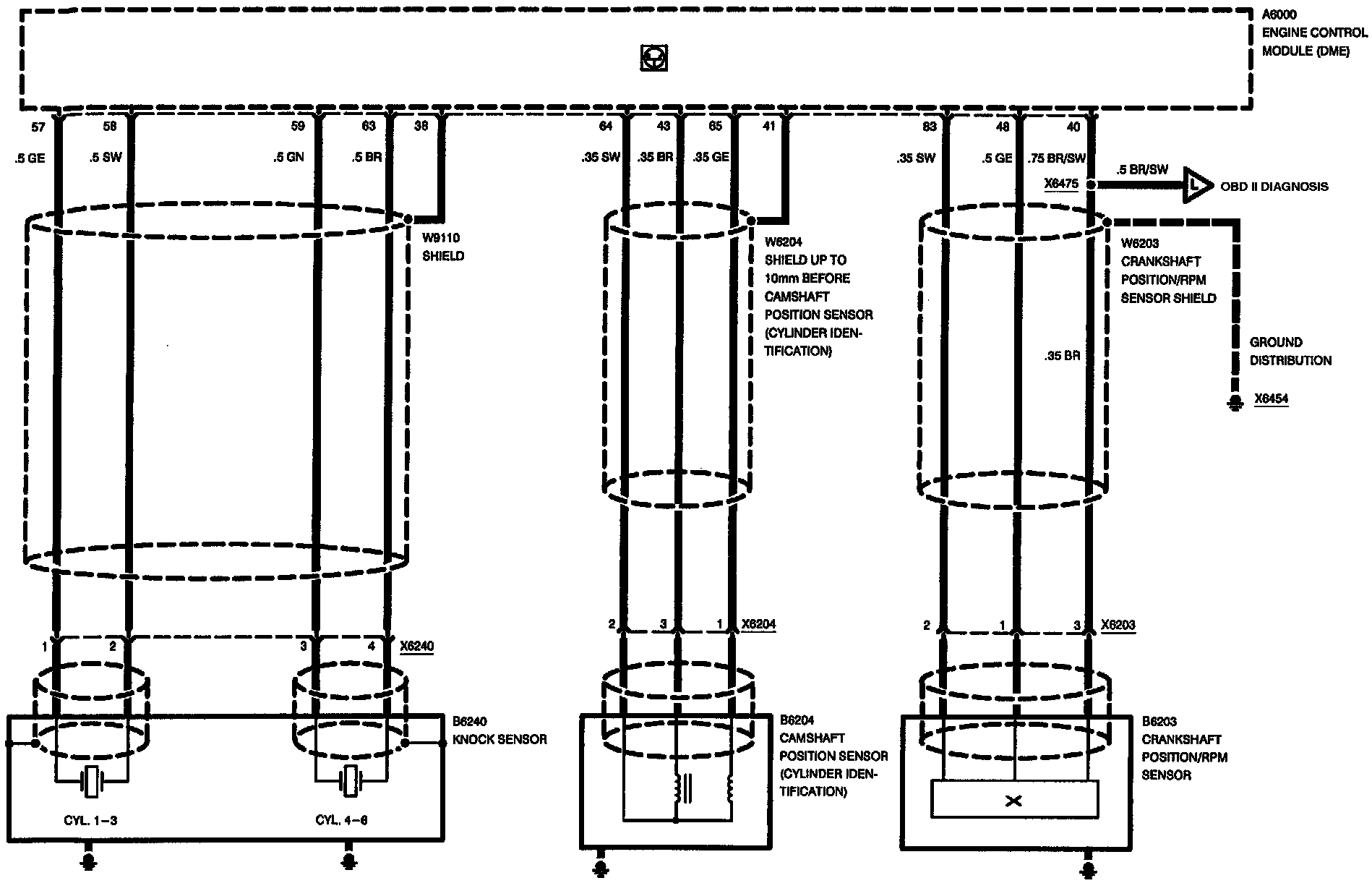

Engine Control System MS41.1 (6-Cylinder M52): Knock Sensor and Crankshaft Position/RPM Sesnor:
