Ground Distribution
>>
Ground X13006
Ground X13006

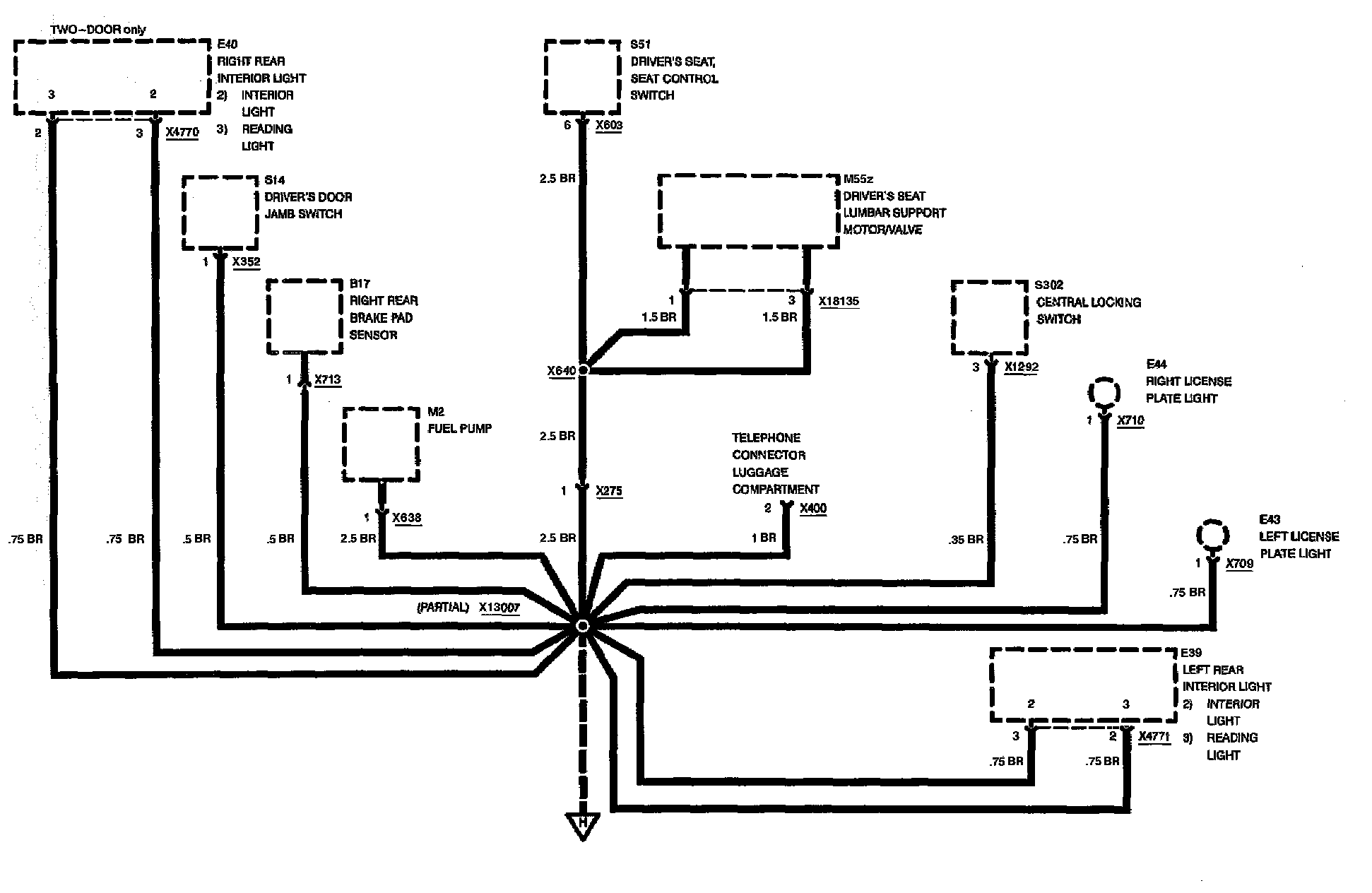

Ground Distribution: Ground X13006:
(Part 1 Of 3)

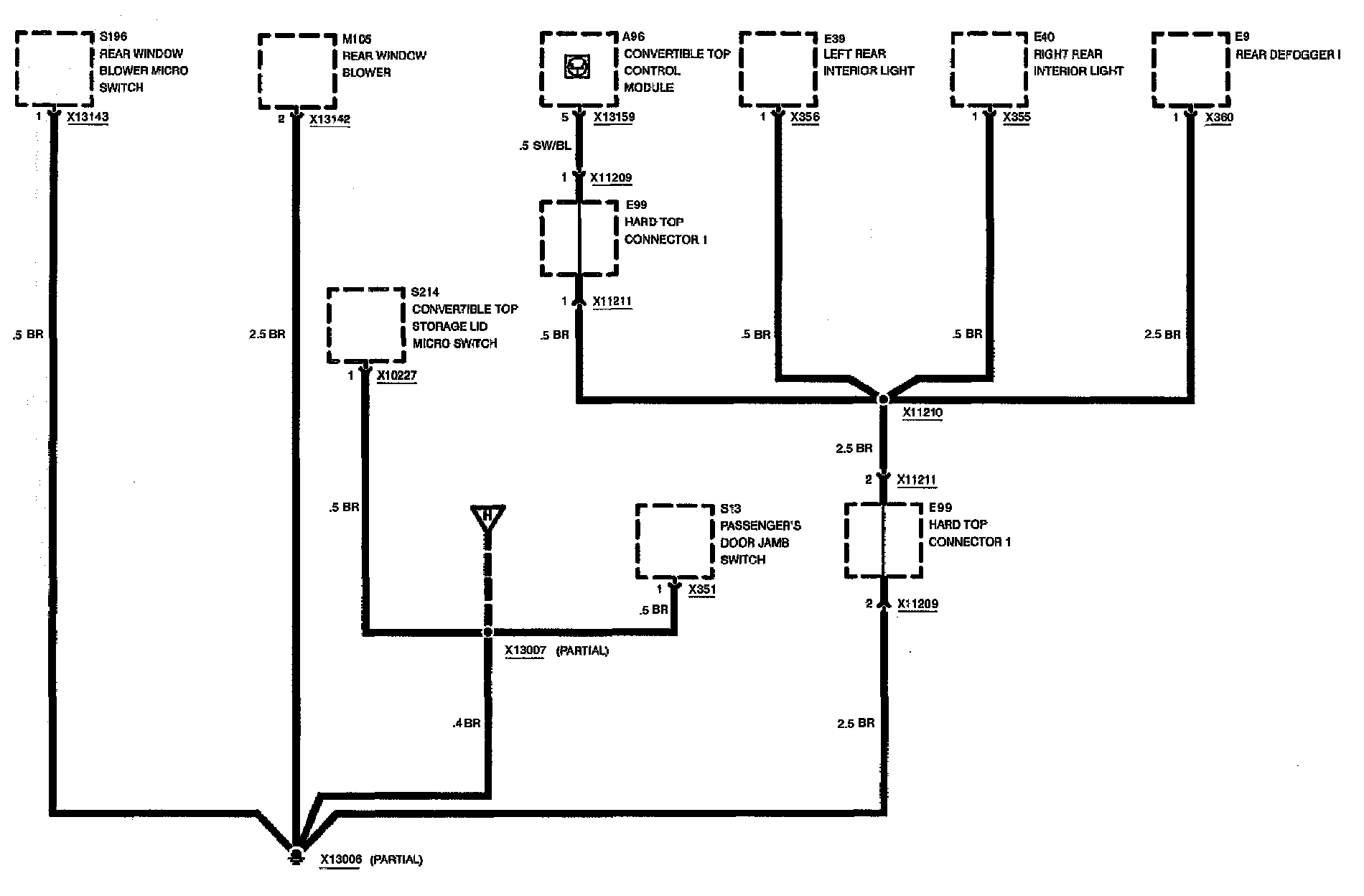

Ground Distribution: Ground X13006:
(Part 2 Of 3)
Ground Distribution: Ground X13006:
(Part 3 Of 3)
