Sub-System Diagrams

ZKE Central Locking (ZV): Sub-System Diagrams (Part 1 Of 2):

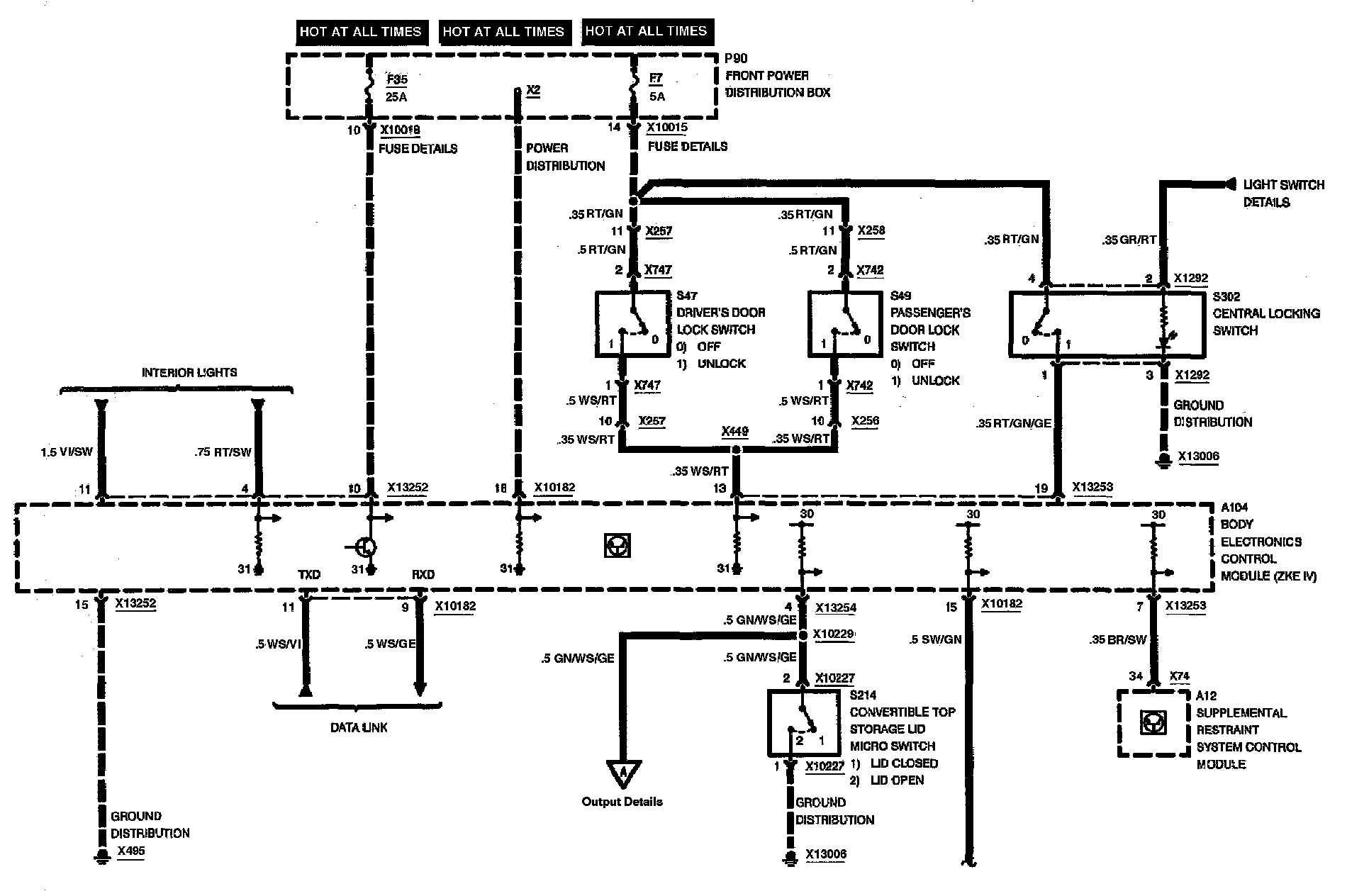

ZKE Central Locking (ZV): Sub-System Diagrams (Part 2 Of 2):
