Home >> BMW >> 1998 >> M3 Convertible (E36) L6-3152cc 3.2L DOHC (S52) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Courtesy Lamp >> System Diagram >> Interior Light

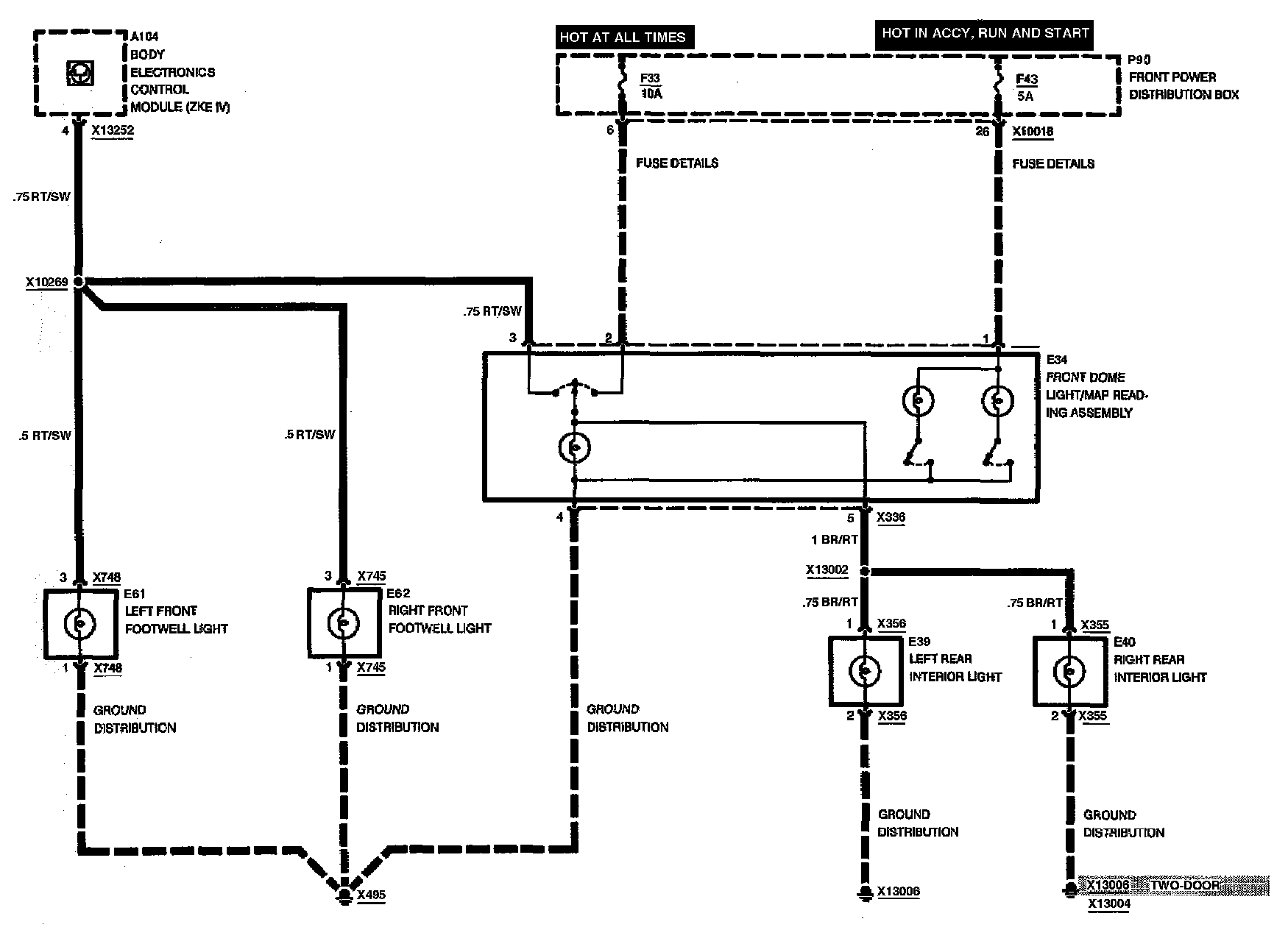

Interior Light

Interior Lights: Interior Light:
