Home >> BMW >> 1998 >> M3 Convertible (E36) L6-3152cc 3.2L DOHC (S52) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Clock >> Sub-System Diagram

Sub-System Diagram

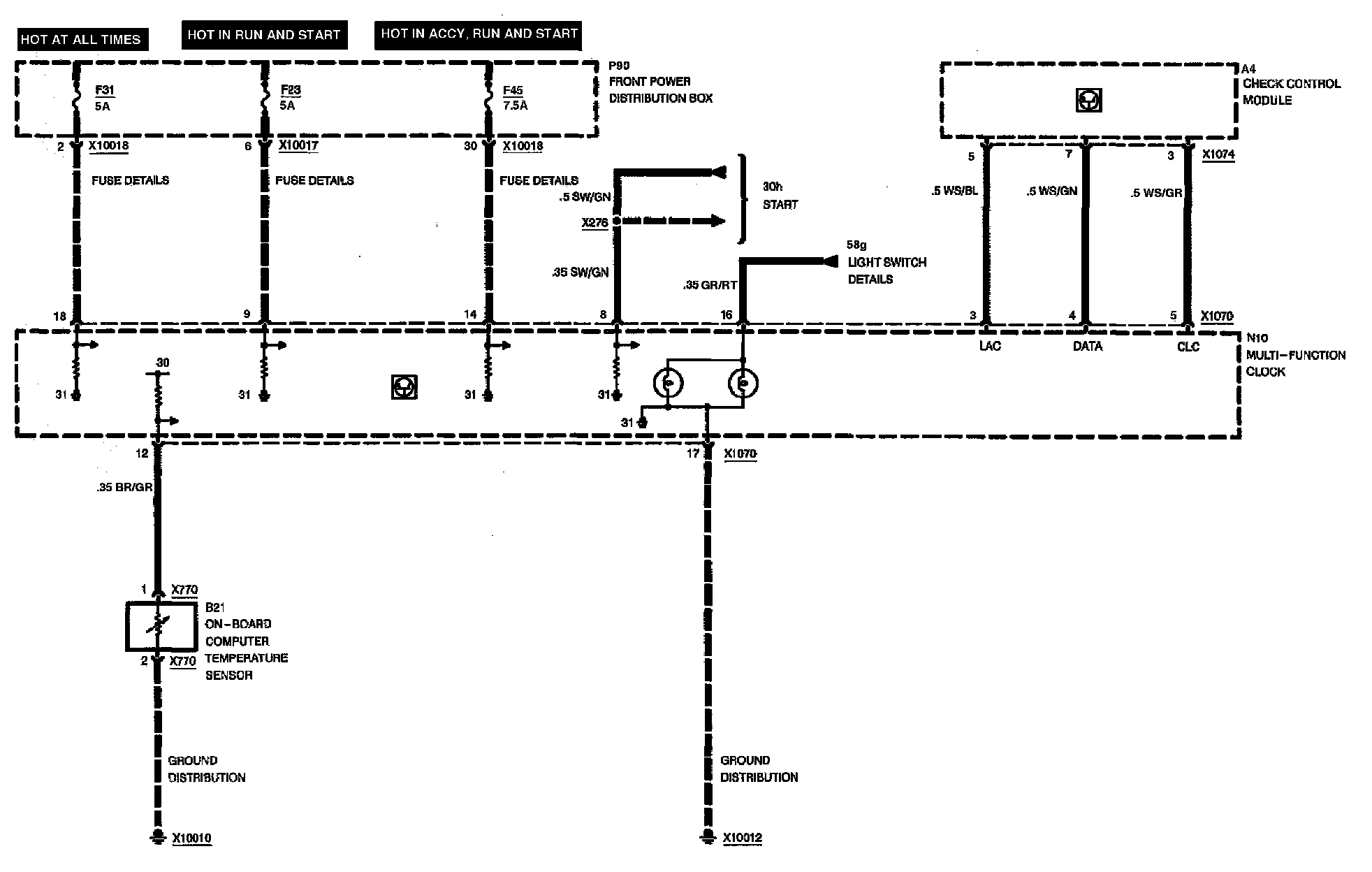

Multi-Function Clock: Sub-System Diagram:
