Block Diagram

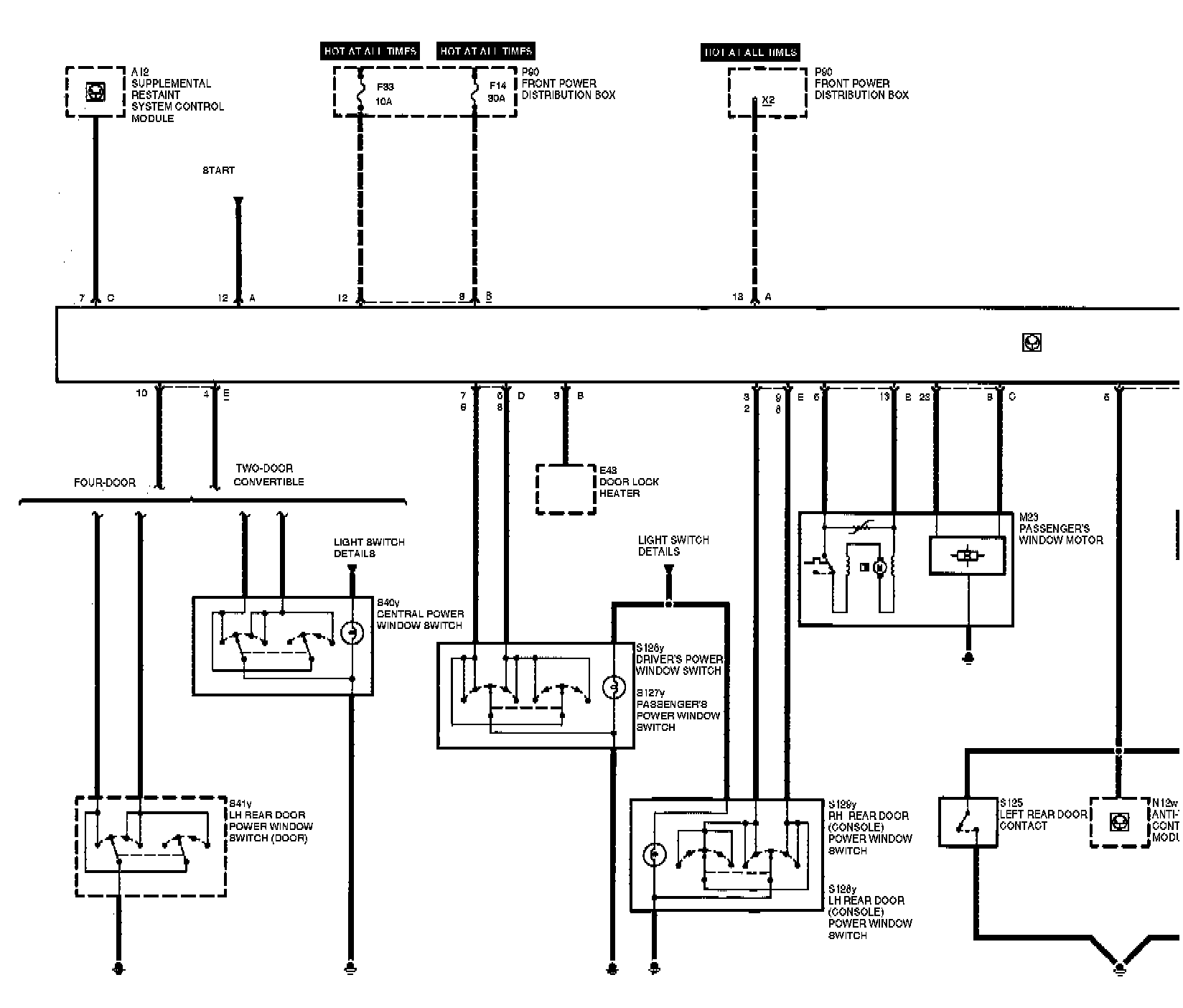

� °�;°Central Body Electronics: Block Diagram (Part 1 Of 2):

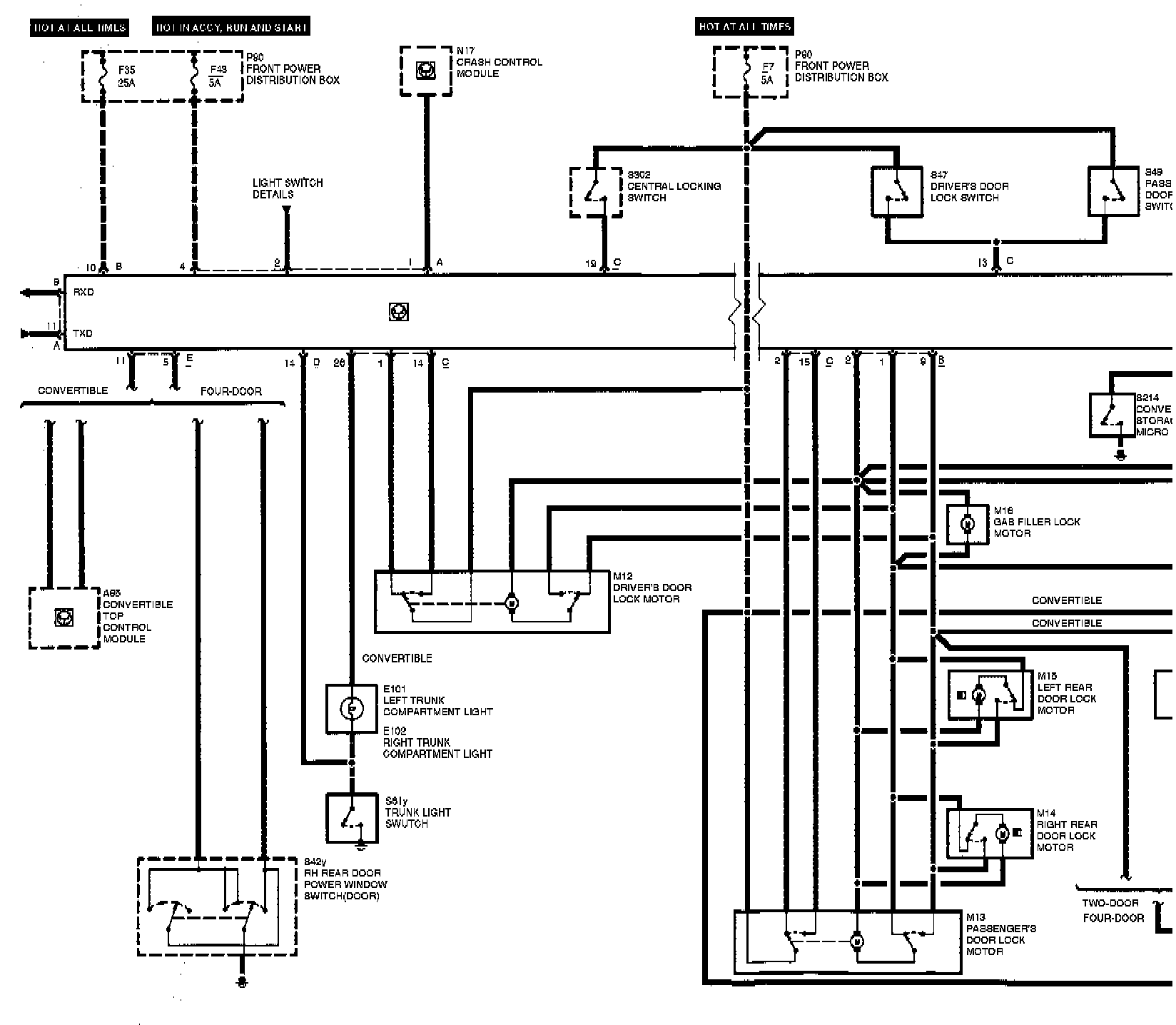

�Y°�v°Central Body Electronics: Block Diagram (Part 2 Of 2):
