Home >> BMW >> 1998 >> M3 Convertible (E36) L6-3152cc 3.2L DOHC (S52) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module

Engine Control Module

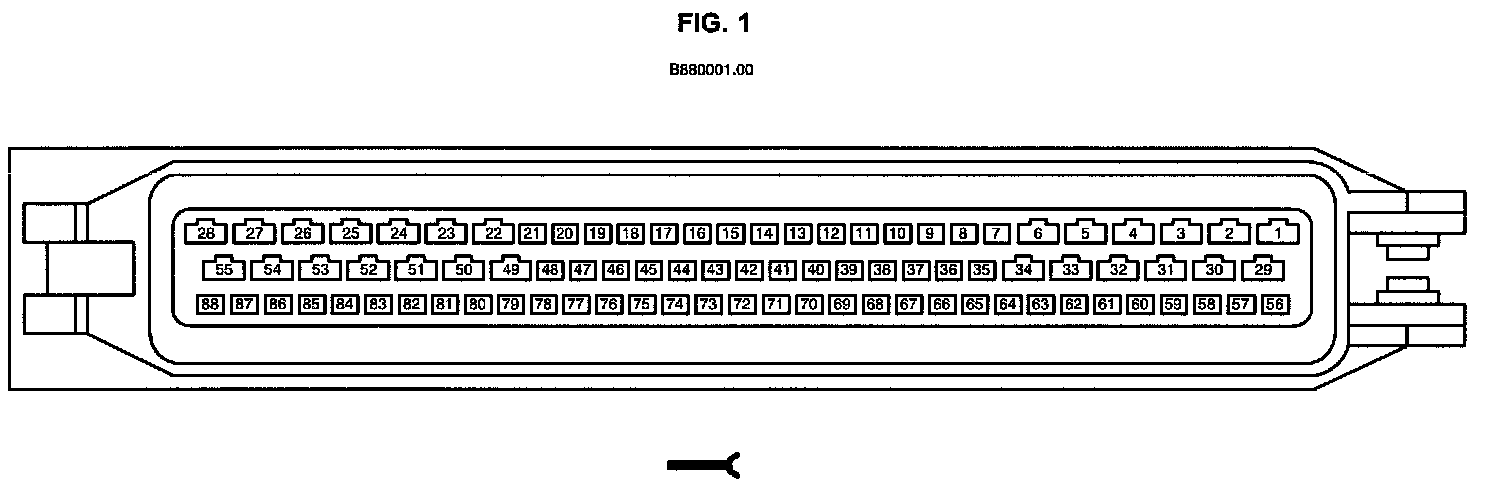

Connector View:

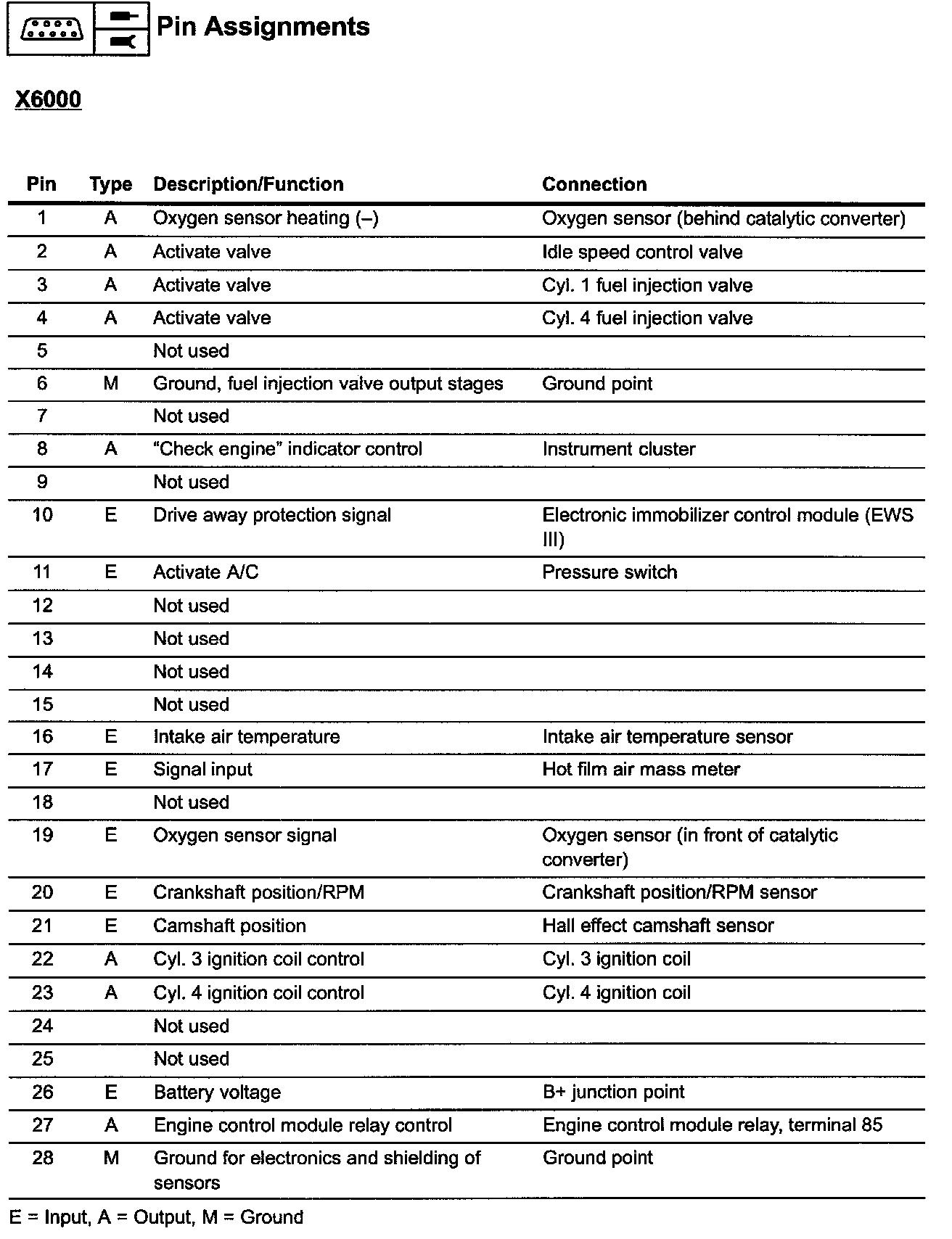

Pin Assignments 1-28:

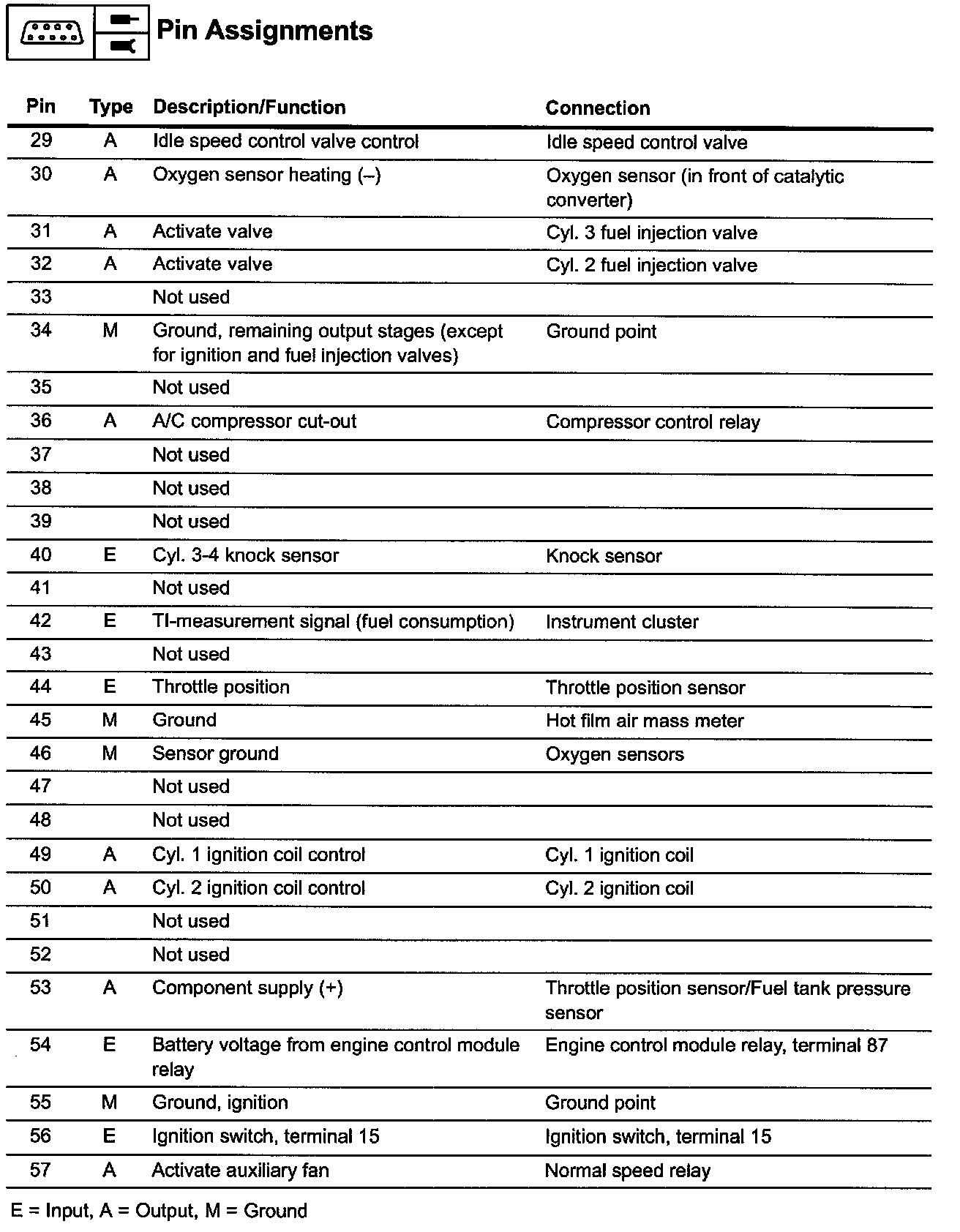

Pin Assignments 29-57:

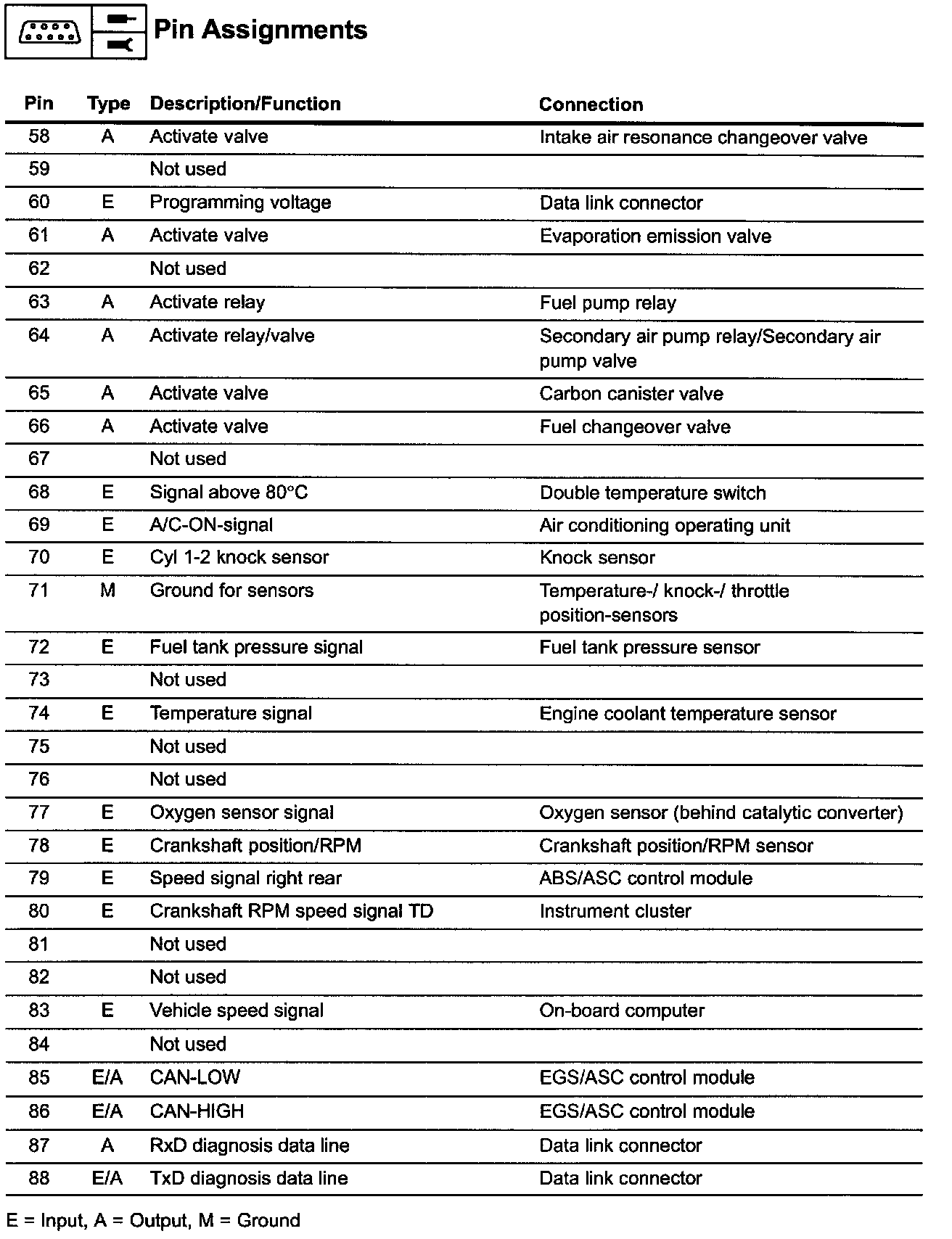

Pin Assignments 58-88:
