Parking Brake Shoe

NOTE:
- Remove rear brake disk.
- Installation:
Adjust handbrake. Adjustments

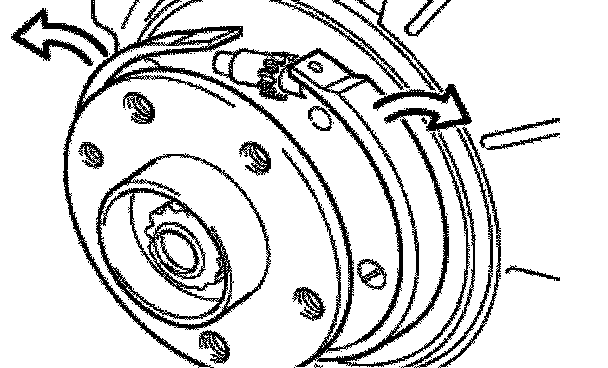

- Disconnect return springs with brake spring pliers.
- Installation:

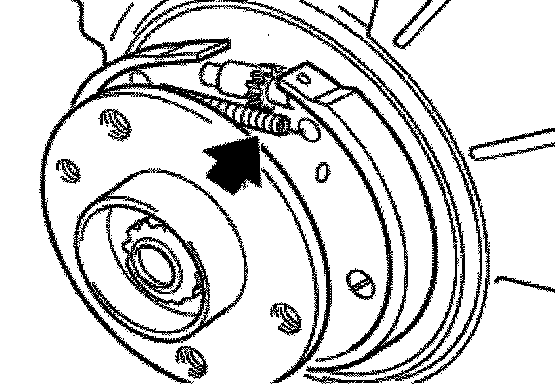

Check return springs, replacing if necessary.

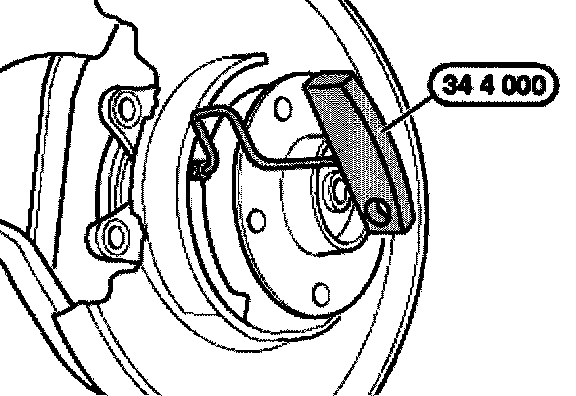

- Twist clamping pin through 90° with special tool 34 4 000 and disconnect.





- Spread brake shoes apart at bottom and lift off in upwards direction.
