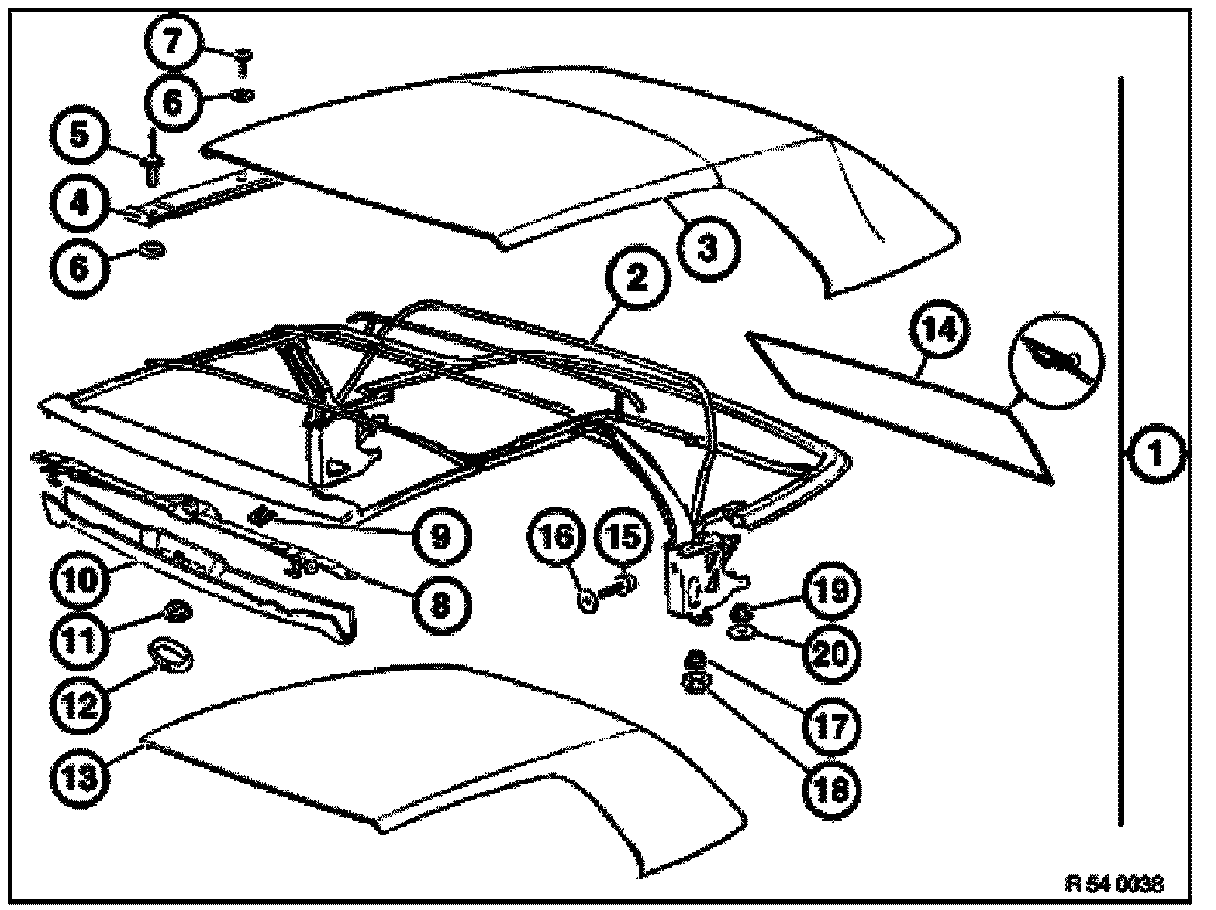

Survey of Convertible Top Cover and Linkages

Survey of convertible top cover and linkages






1 Complete convertible top
2 Soft top frame
3 Soft top cover
4 Tensioning belt
5 Rivet
6 Washer
7 Raised countersunk head tapping screw
8 Fastener
9 Spacer
10 Plate
11 Escutcheon
12 Handle
13 Roof liner
14 Rear windscreen with zip fastener
15 Hex. bolt with washer
16 Washer
17 Collar nut
18 Eccentric
19 Hexagon nut
20 Washer
