Convertible Top Strut: Service and Repair

Removing and installing or replacing left and right gas struts for soft top compartment cover

Remove soft top compartment cover.

Lift soft top out of soft top compartment.

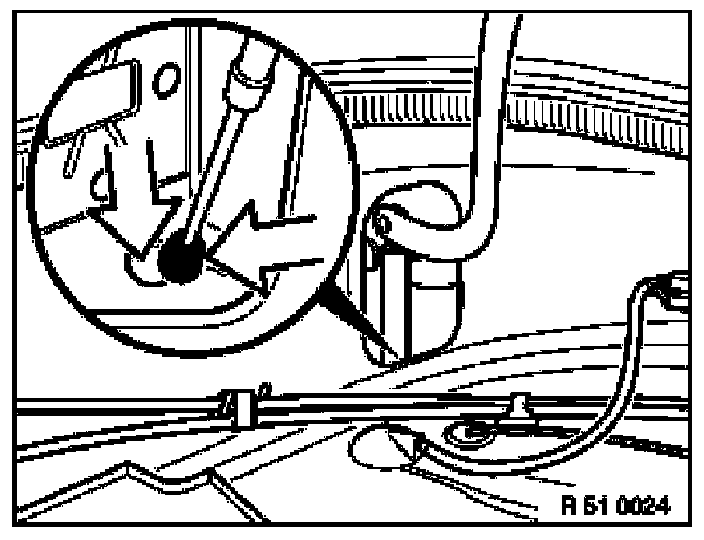

Lift gas strut out downwards, insert in available bore and lower the linkages.

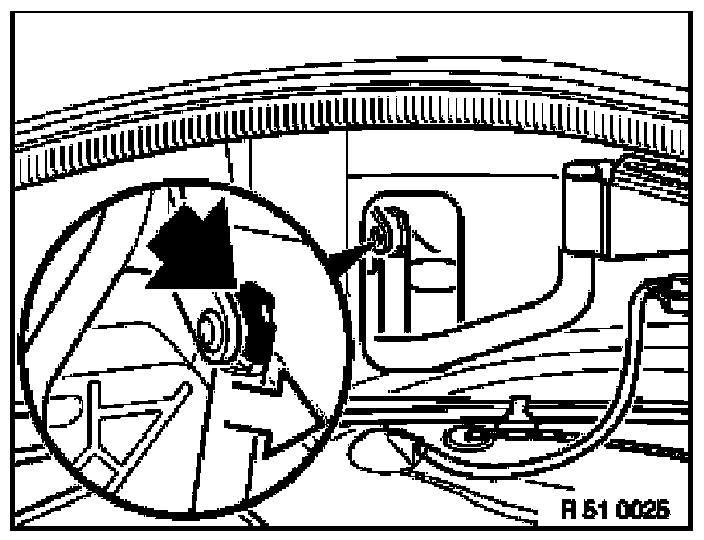

Remove tab washer, raise gas strut upwards and lift out.
