B-Pillar

- Unfastening seat belt screw on driver's seat (do not remove front seat).
- Remove rear rocker panel strip (inner).

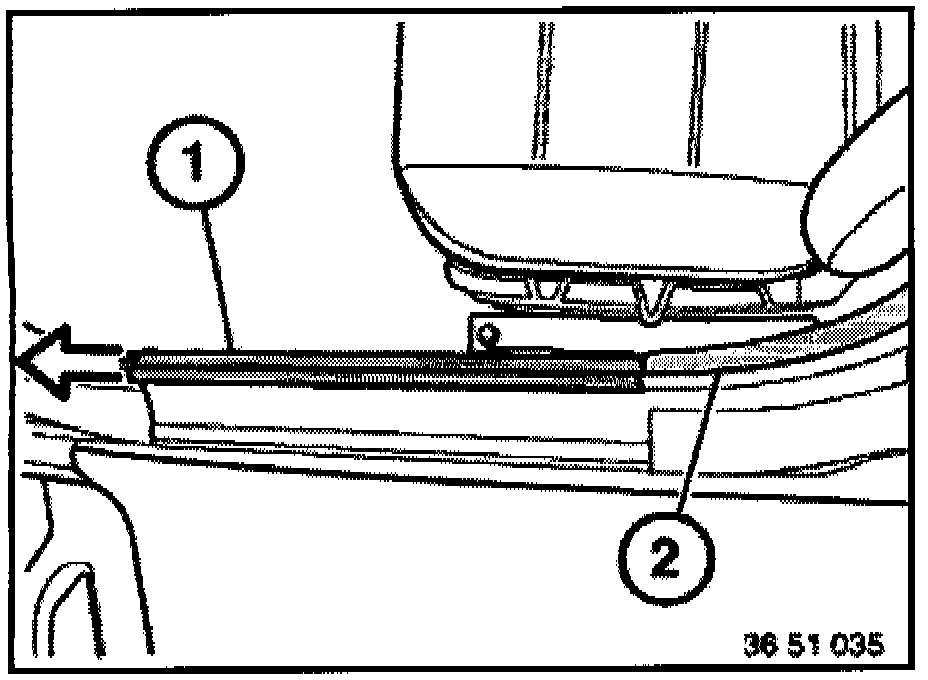

- Slide cover (1) forwards until B-pillar finisher (2) is exposed.

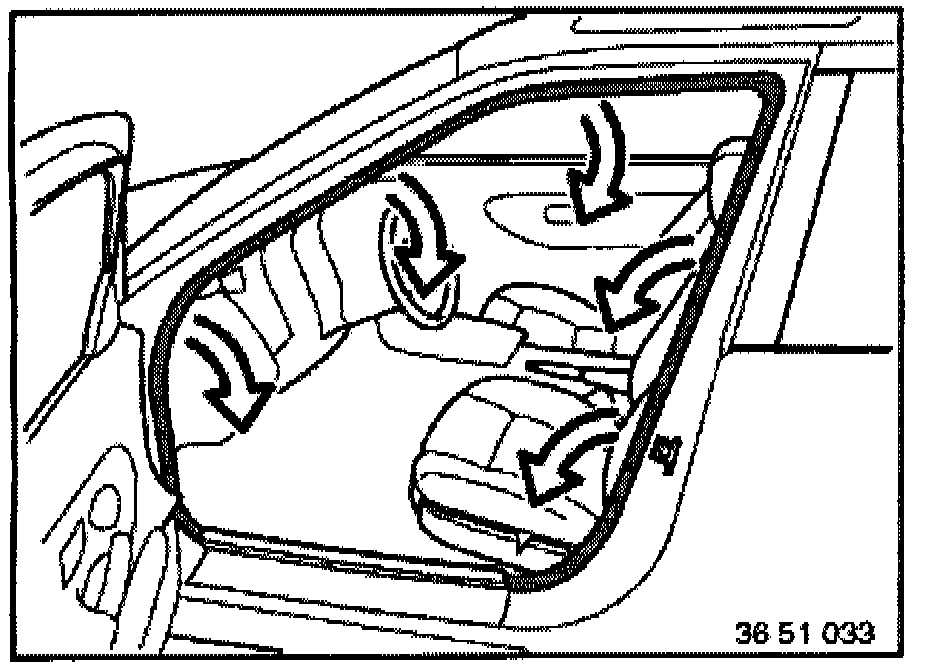

- Partially remove edge protection from front area of B-pillar finisher.

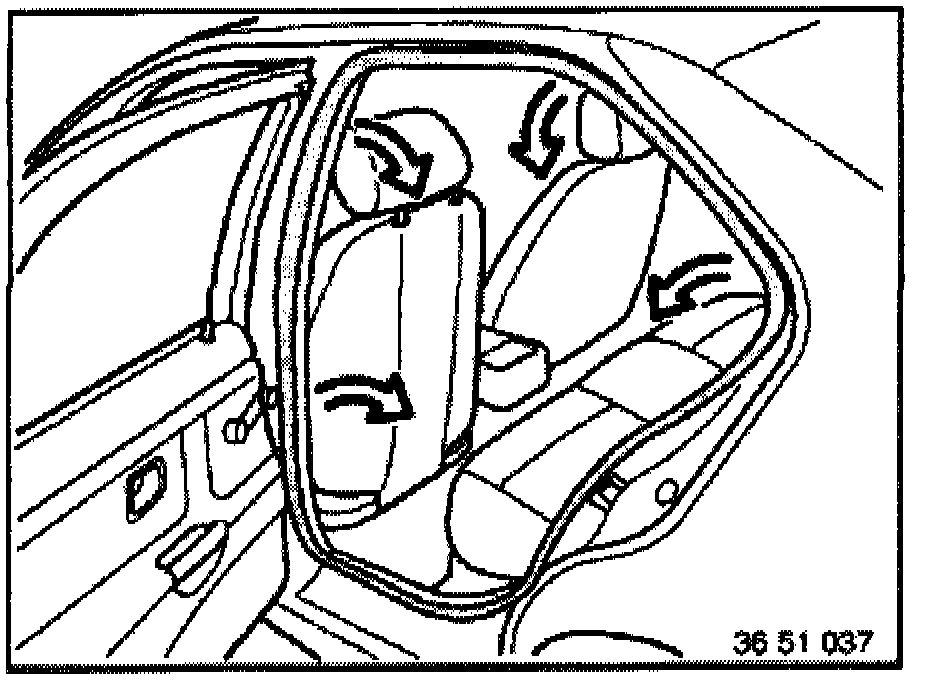

- Partially remove edge protection from rear B-pillar finisher.

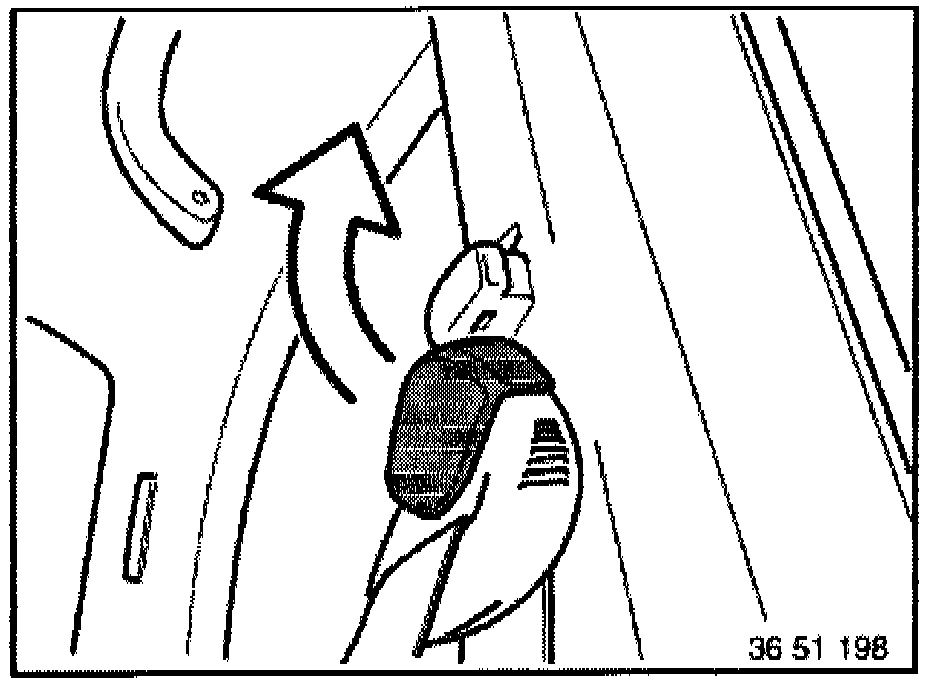

- Removing top cover and unfastening screw.

Tightening torque
- Safety belt on, except for B-pillar 48 Nm
- Safety belt on B-pillar 31 Nm
- Safety belt on seat 48 Nm

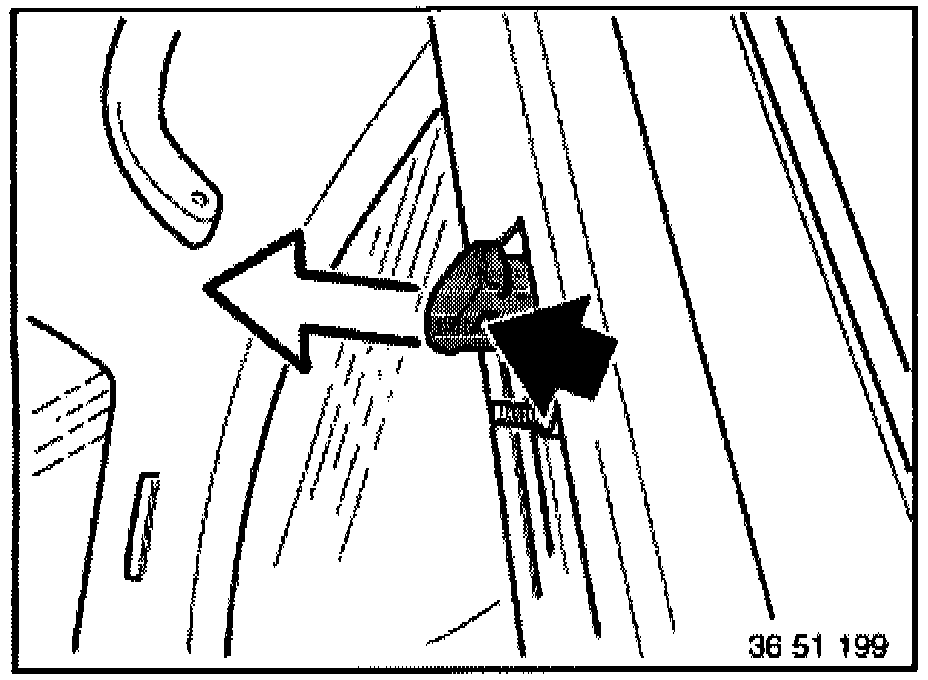

- Push bottom lock upwards and pull off cap.

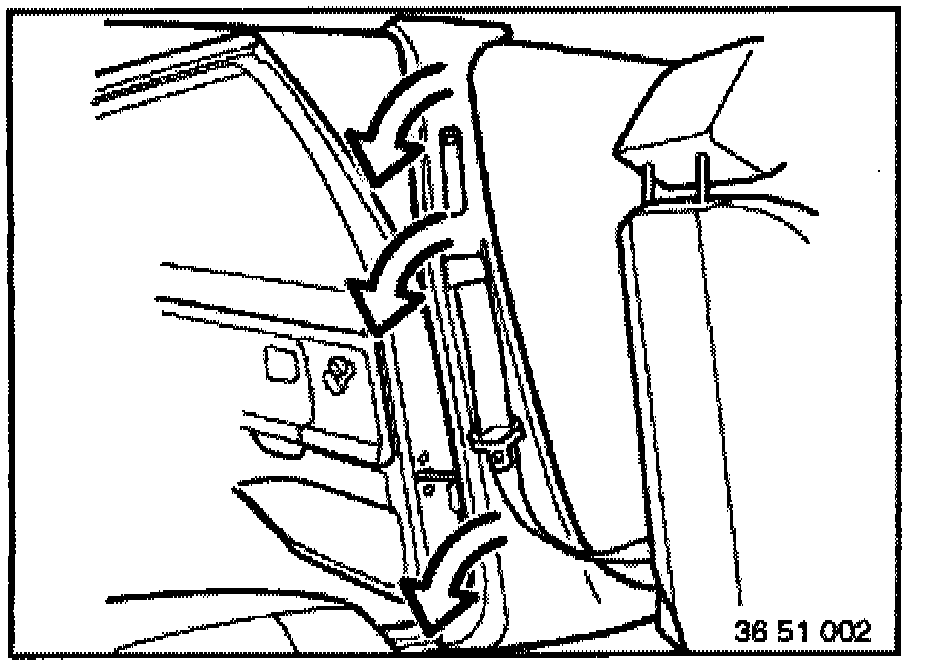

- Unclip B-pillar trim panel.





Installation Note:

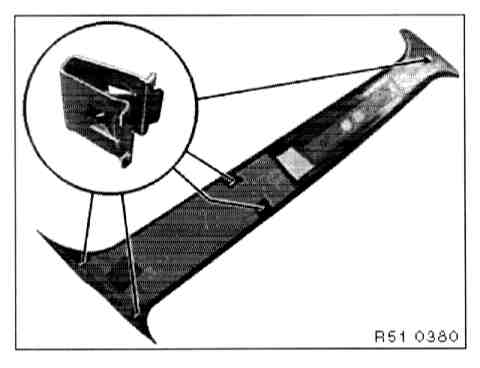

- Remove clips (1) from B-pillar trim panel and insert B-pillar.
