Scuff Plate: Service and Repair

- Remove back seat.





- Unscrew nuts.

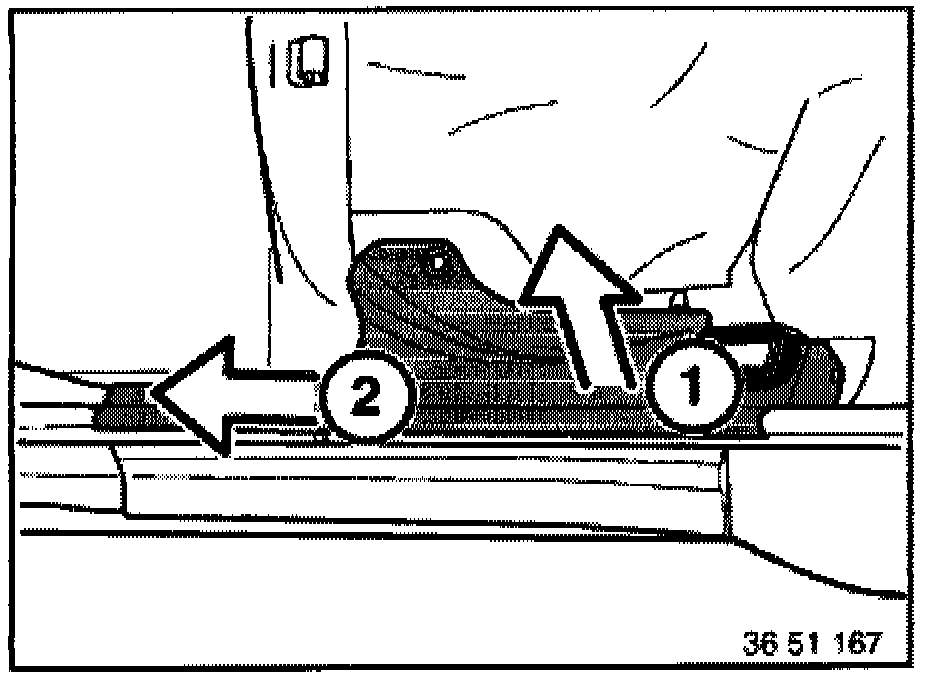

- Lift (1) entrance cover out of seat belt lock and mounting studs.
- Push (2) entrance cover strip forward by approx. 20 mm and remove.

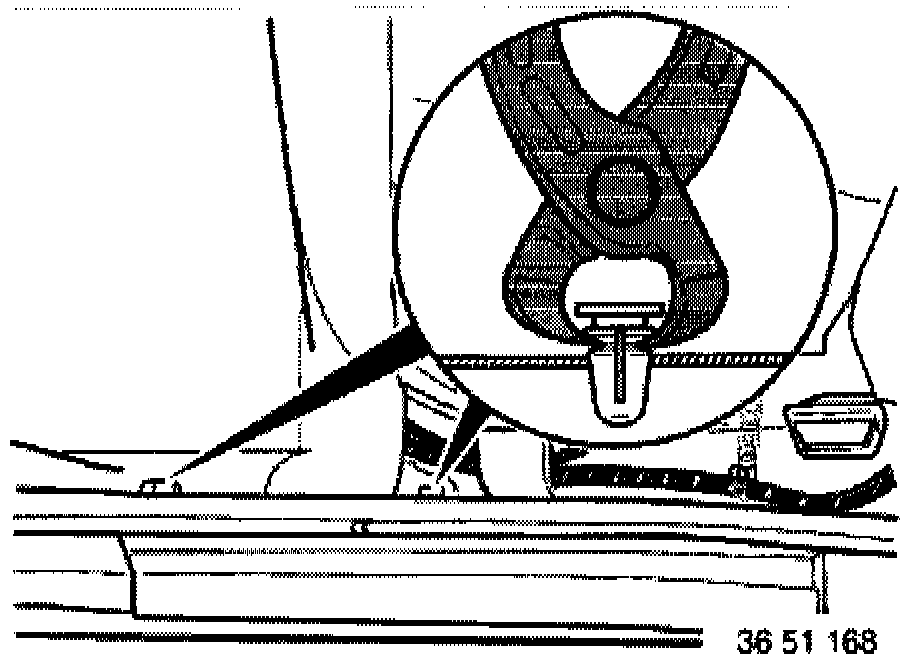

- Compress clips with pliers and pull them out (head of pliers ground to size).





Installation Note:

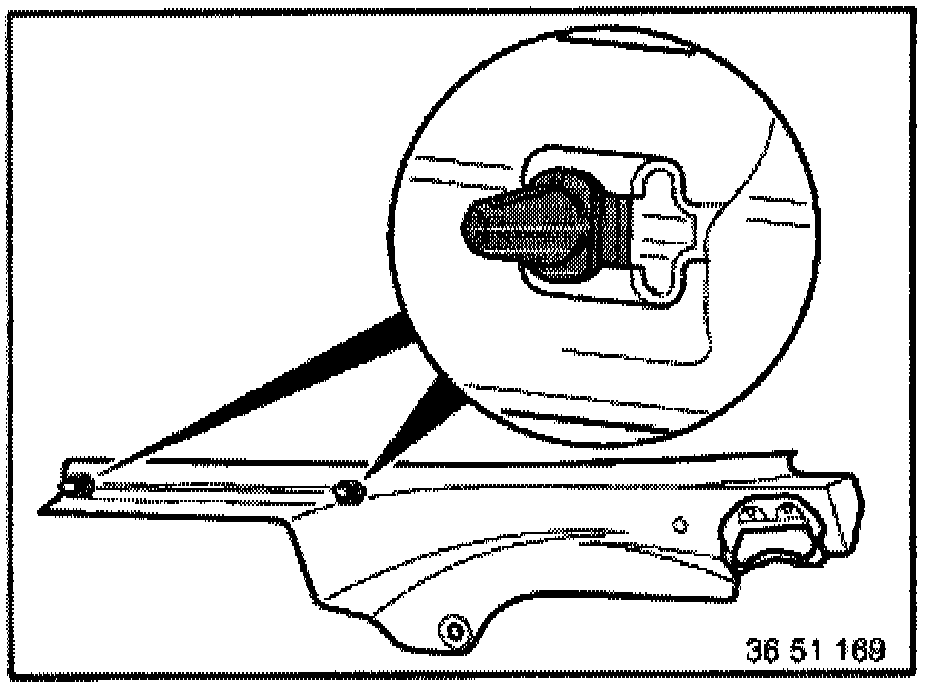

- If necessary, replace damaged clips. Soak clips for a period in water.
- Install clips and align.
