Home >> BMW >> 1998 >> M Coupe (E36/7) L6-3152cc 3.2L DOHC (S52) >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Fuse >> Diagrams >> Electrical Diagrams >> Fuses 13, 16, 21, 26

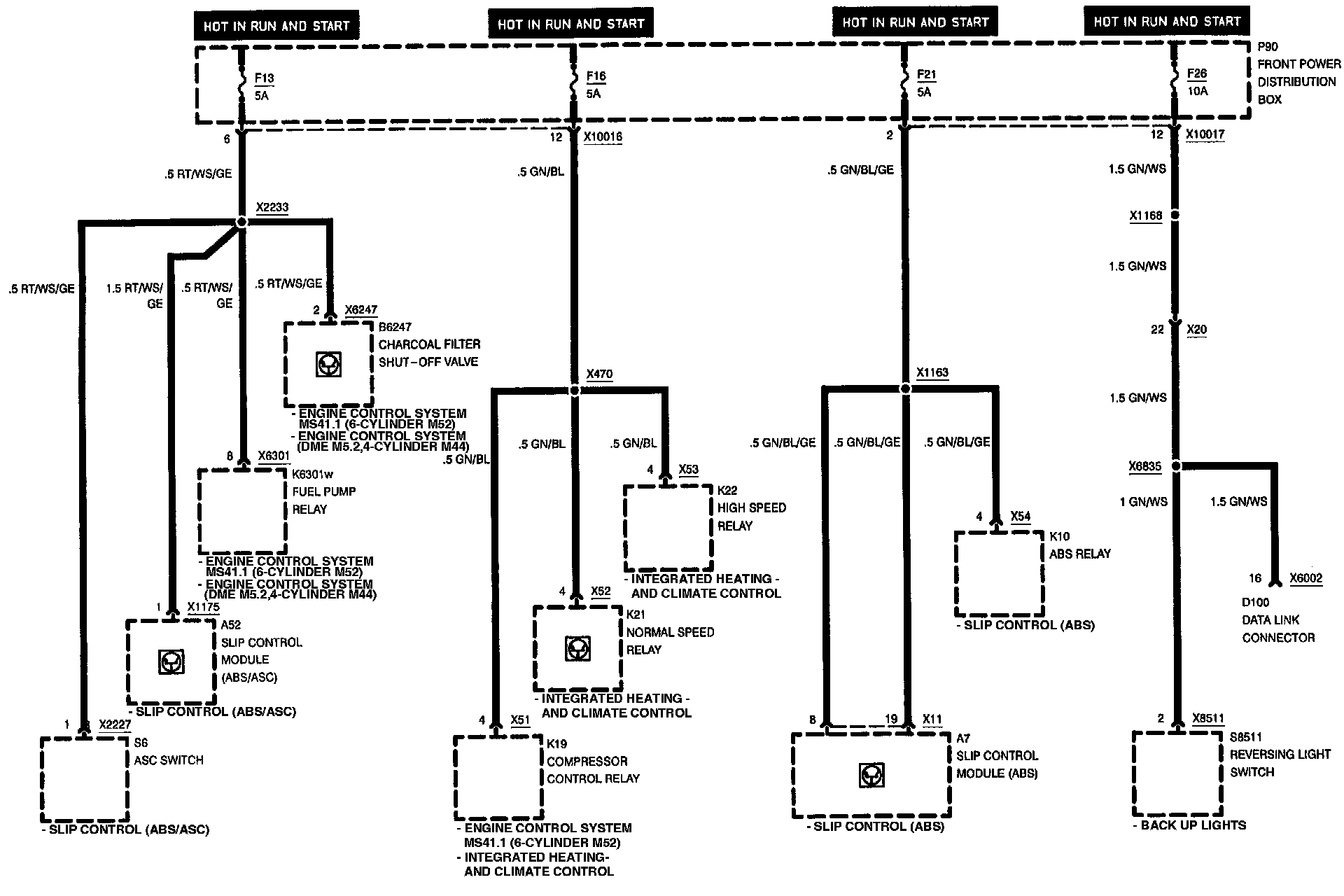

Fuses 13, 16, 21, 26

Fuse Details: Fuses 13, 16, 21, 26:
