Power Distribution

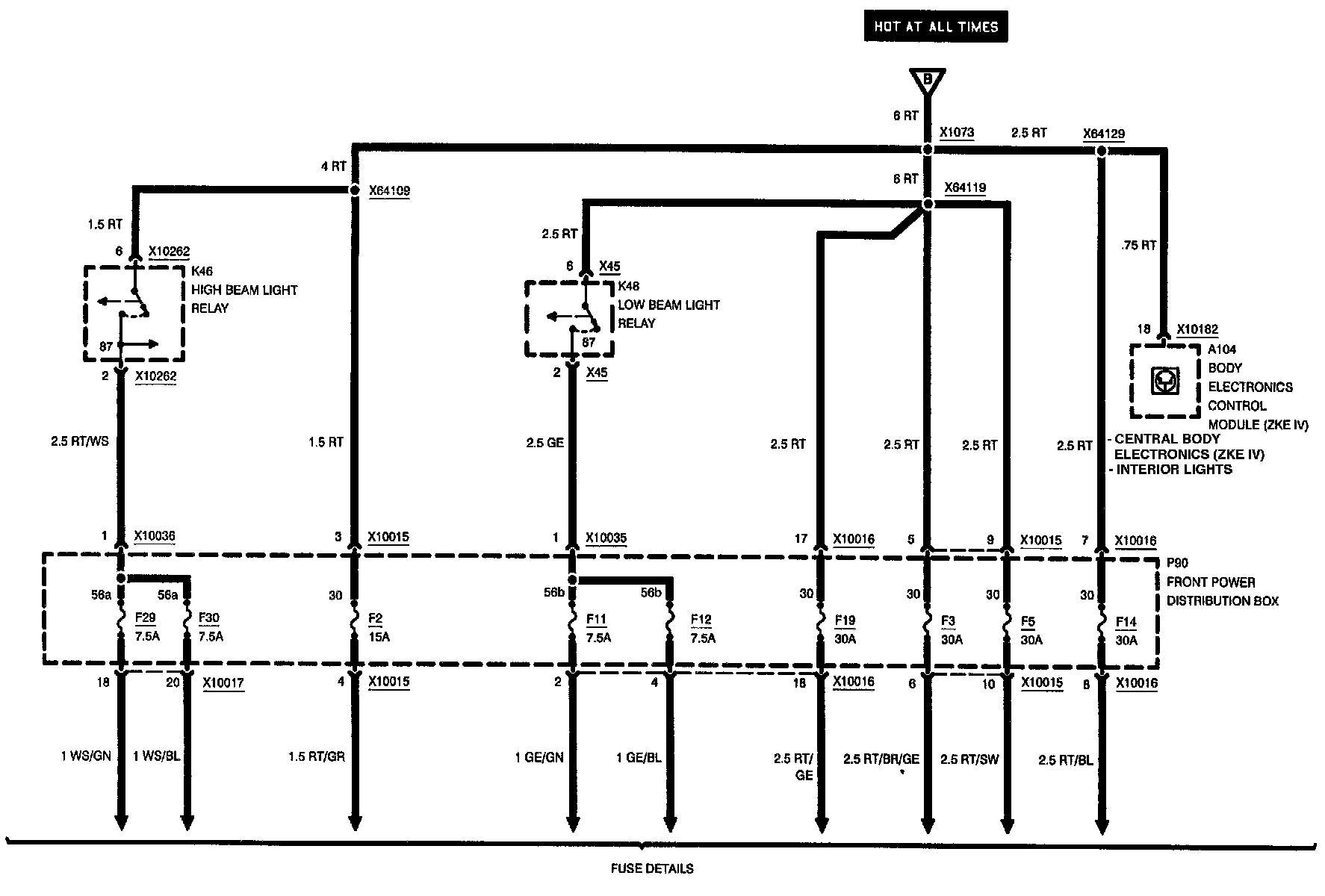

Power Distribution (Part 1)

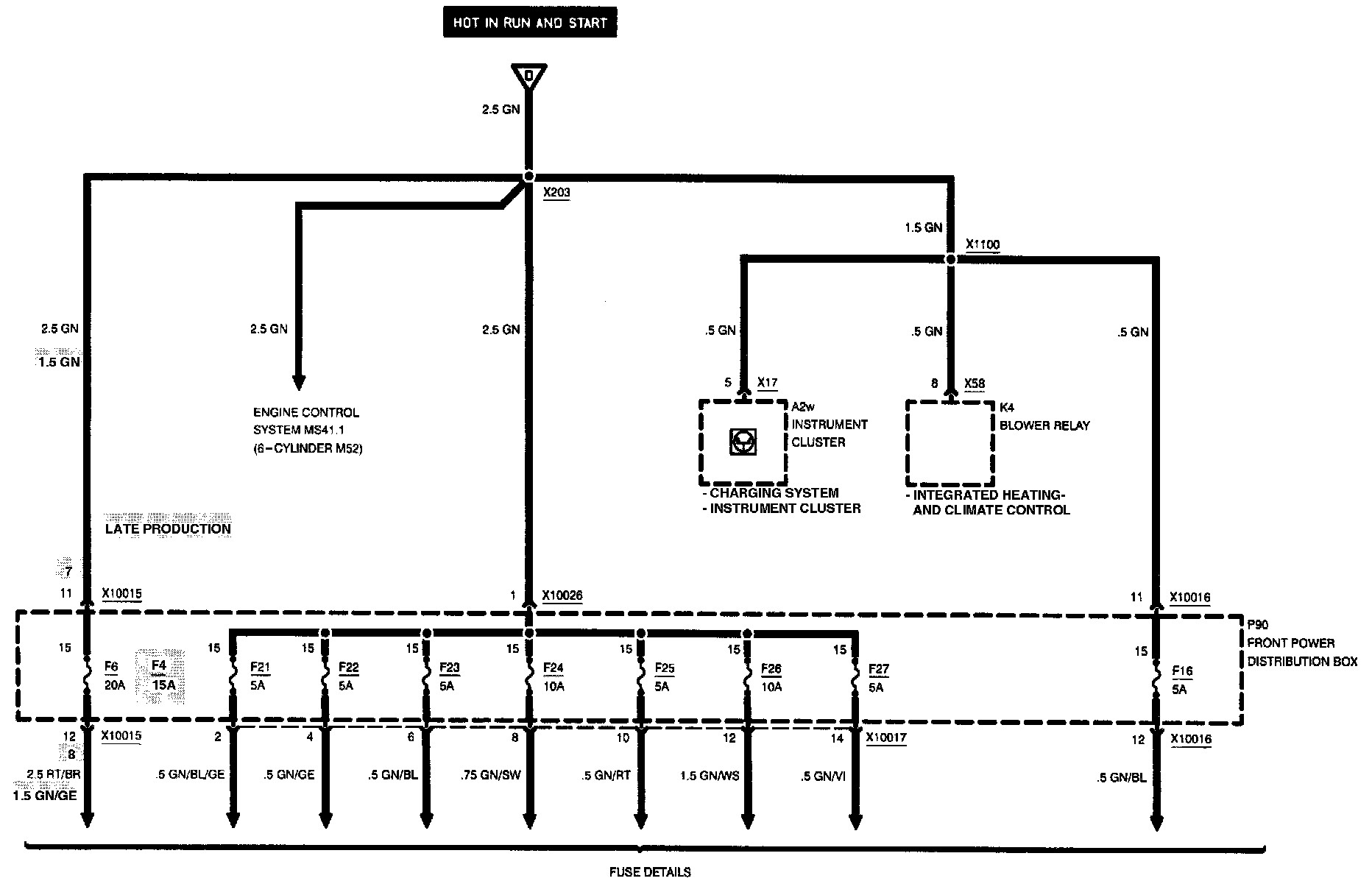

Power Distribution (Part 2)

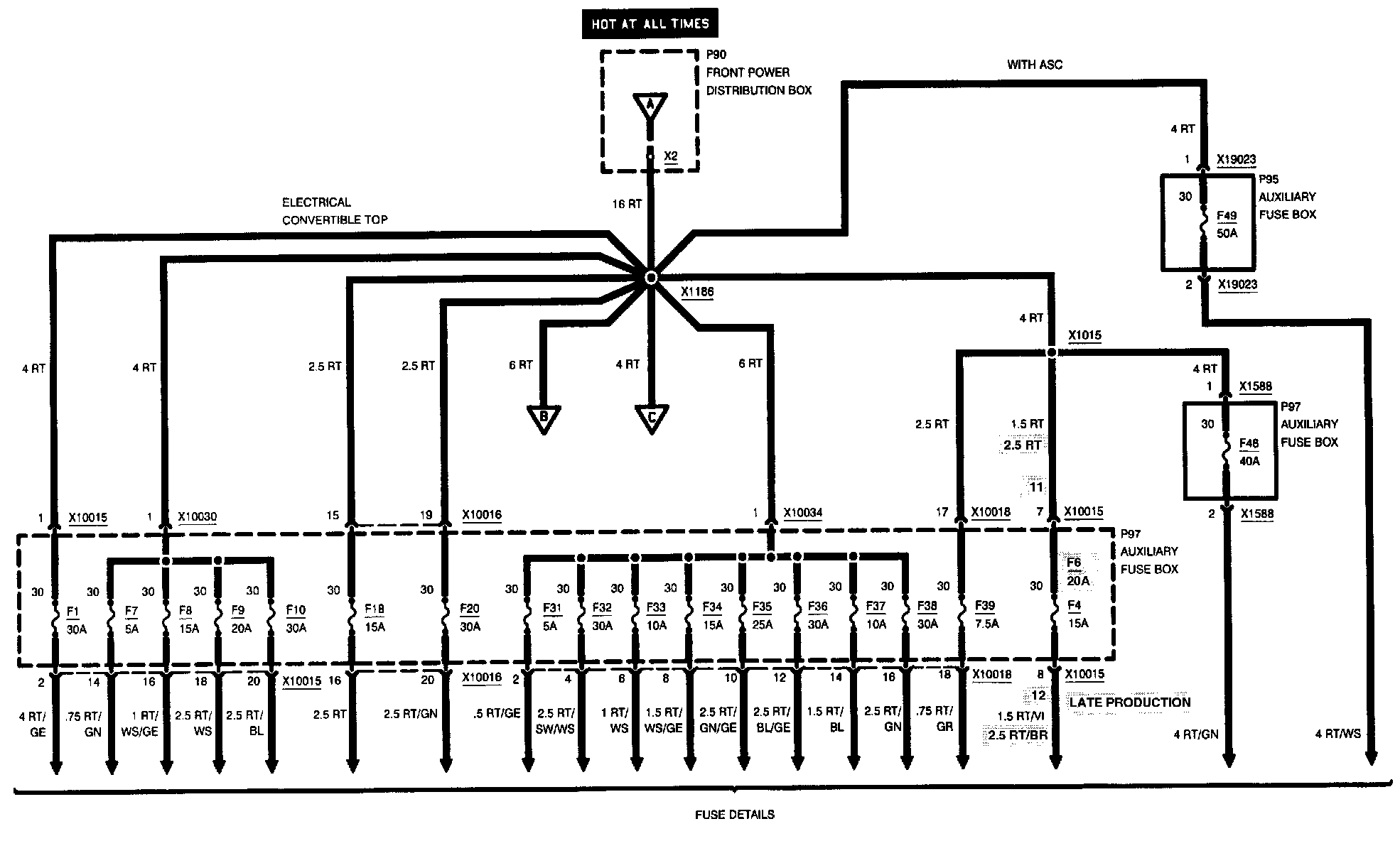

Power Distribution (Part 3)

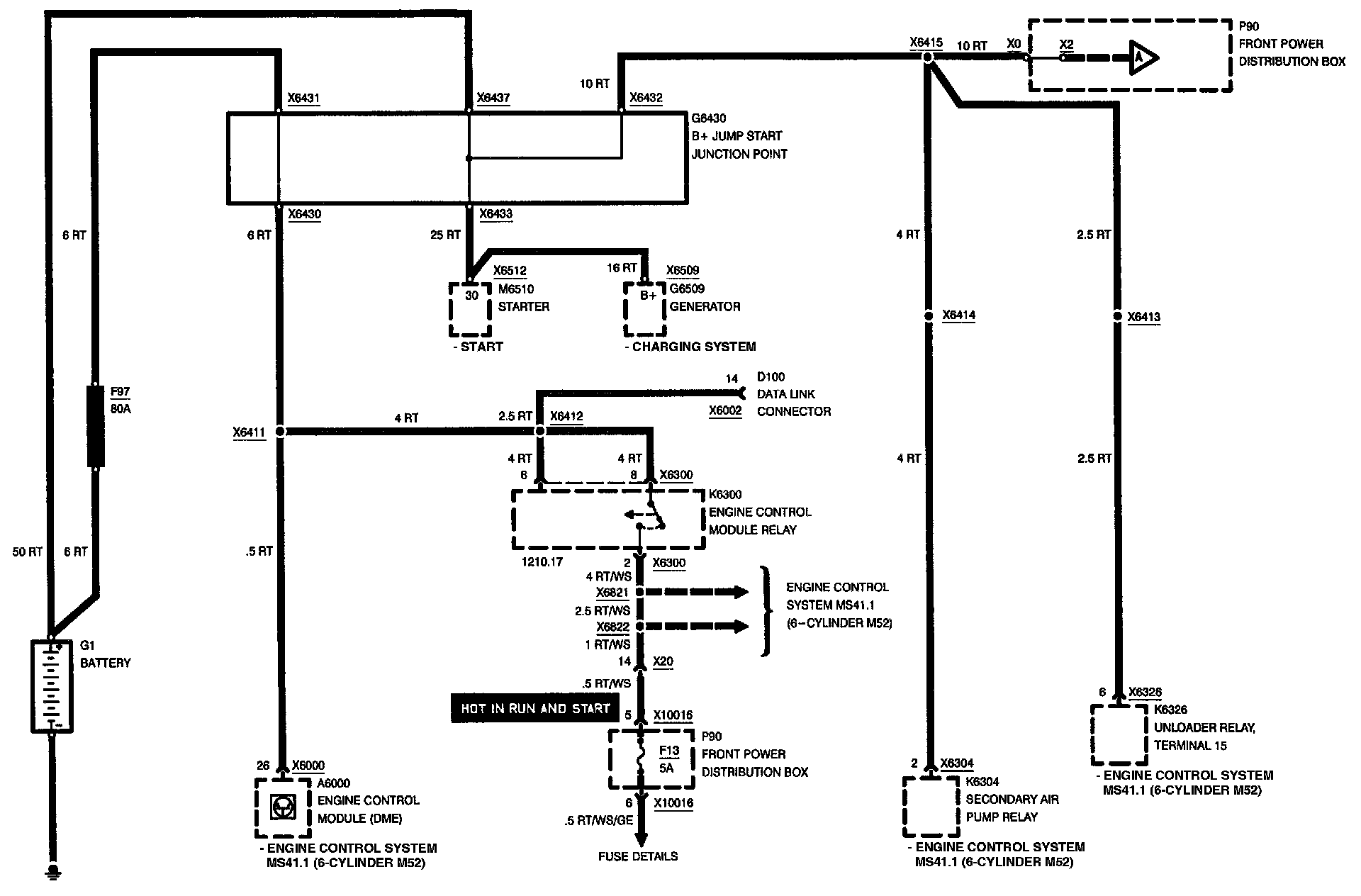

Power Distribution (Part 4)

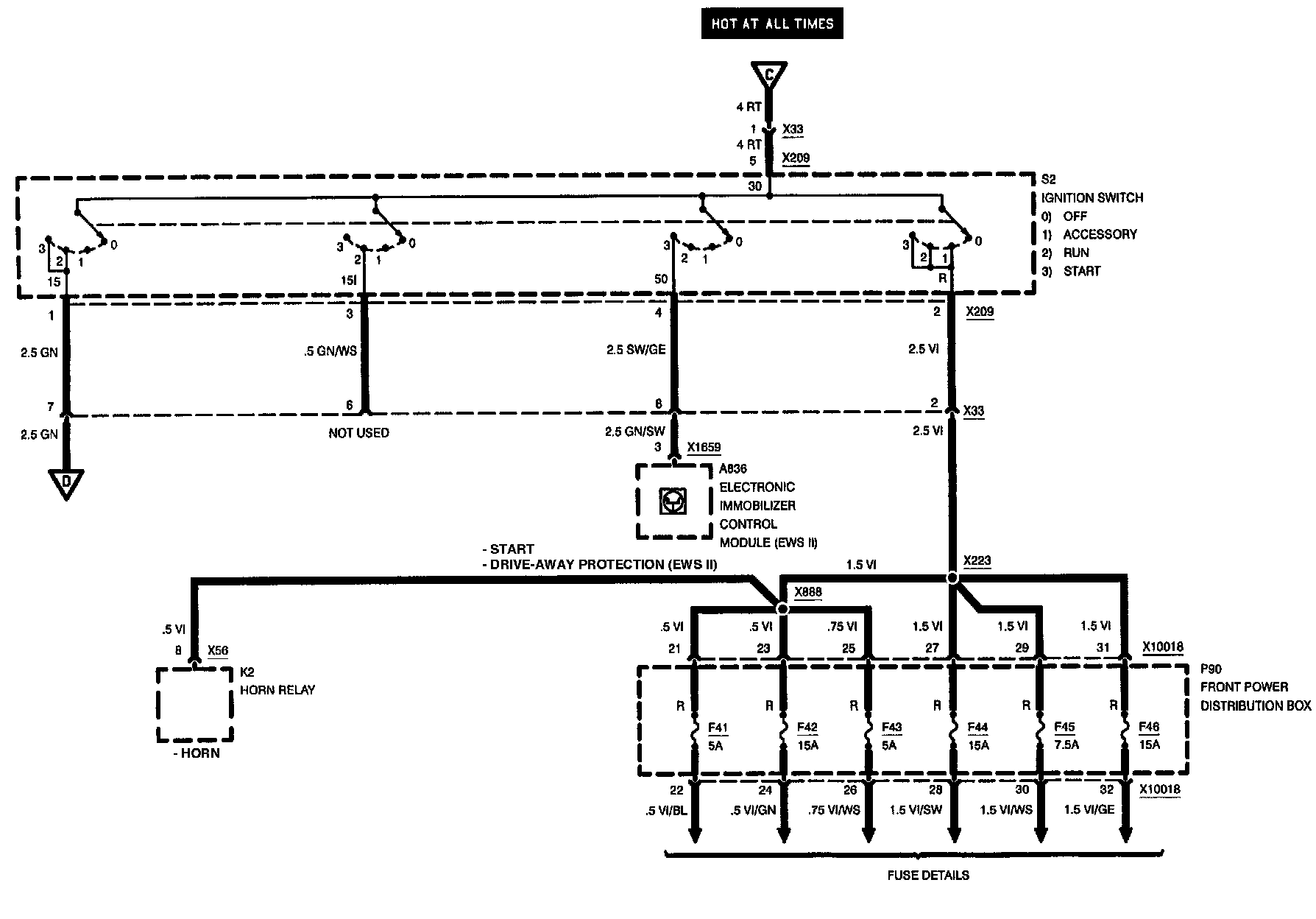

Power Distribution (Part 5)
