Home >> BMW >> 1998 >> M Coupe (E36/7) L6-3152cc 3.2L DOHC (S52) >> Repair and Diagnosis >> Heating and Air Conditioning >> Diagrams >> Electrical Diagrams >> Pin Assignments

Pin Assignments

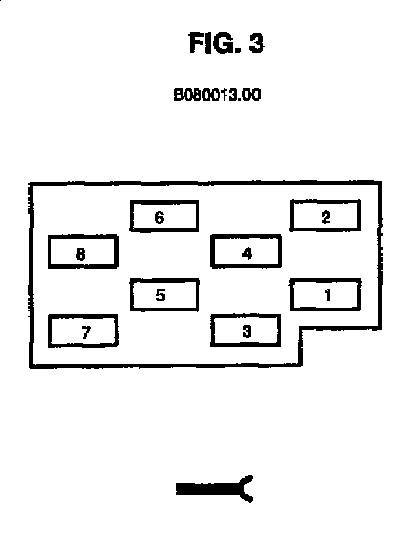

X18349: Connector (8 Pins, Black)

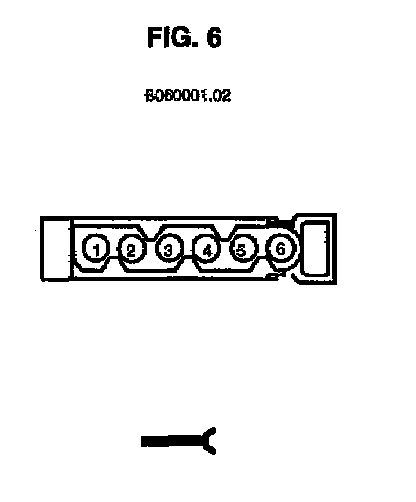

X18350: Connector (6 Pins, Black)

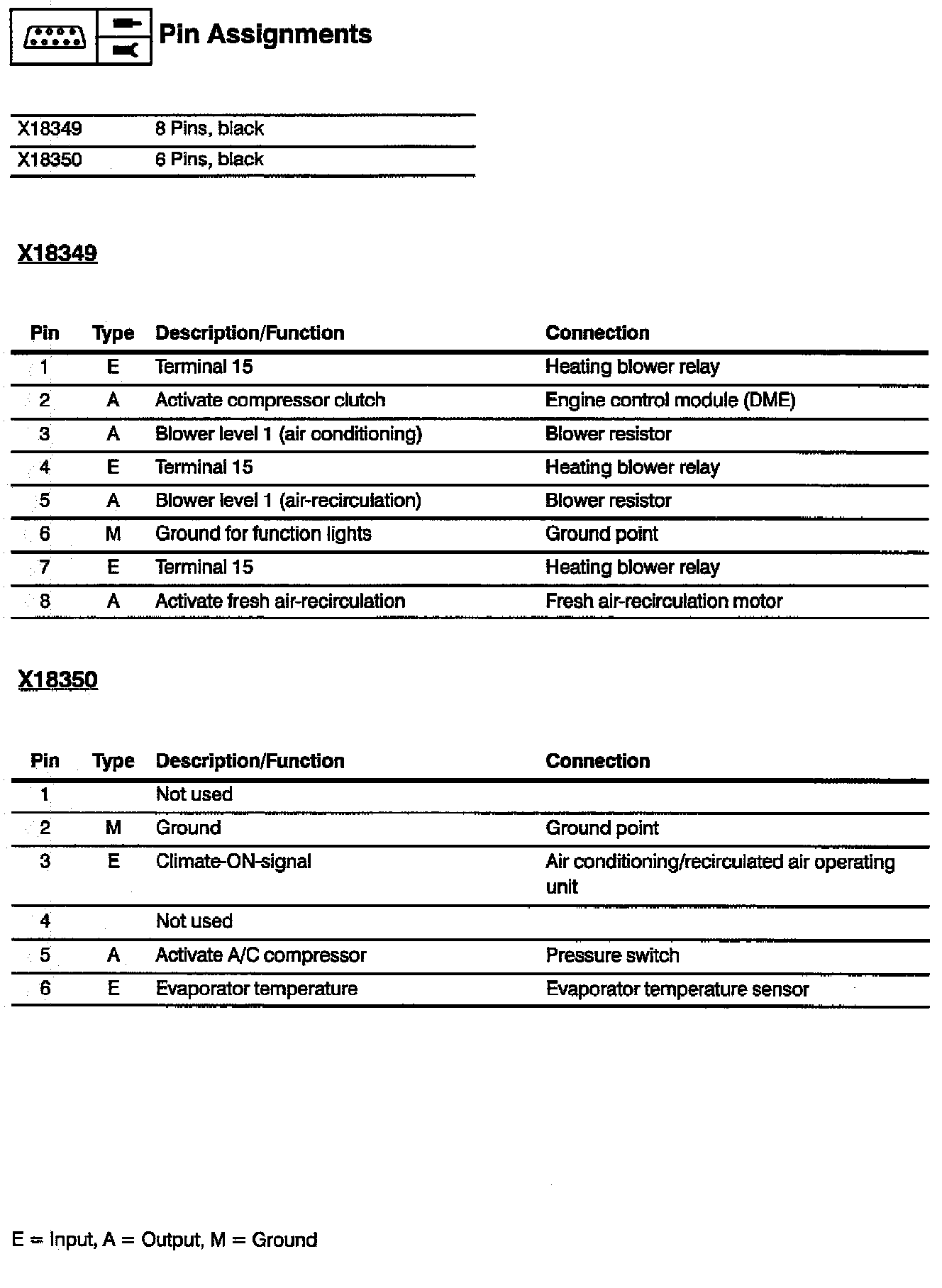

Integrated Heating And Climate Control: Pin Assignments:
