Home >> BMW >> 1998 >> M Coupe (E36/7) L6-3152cc 3.2L DOHC (S52) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Cyl. 1-6 Fuel Injection Valve

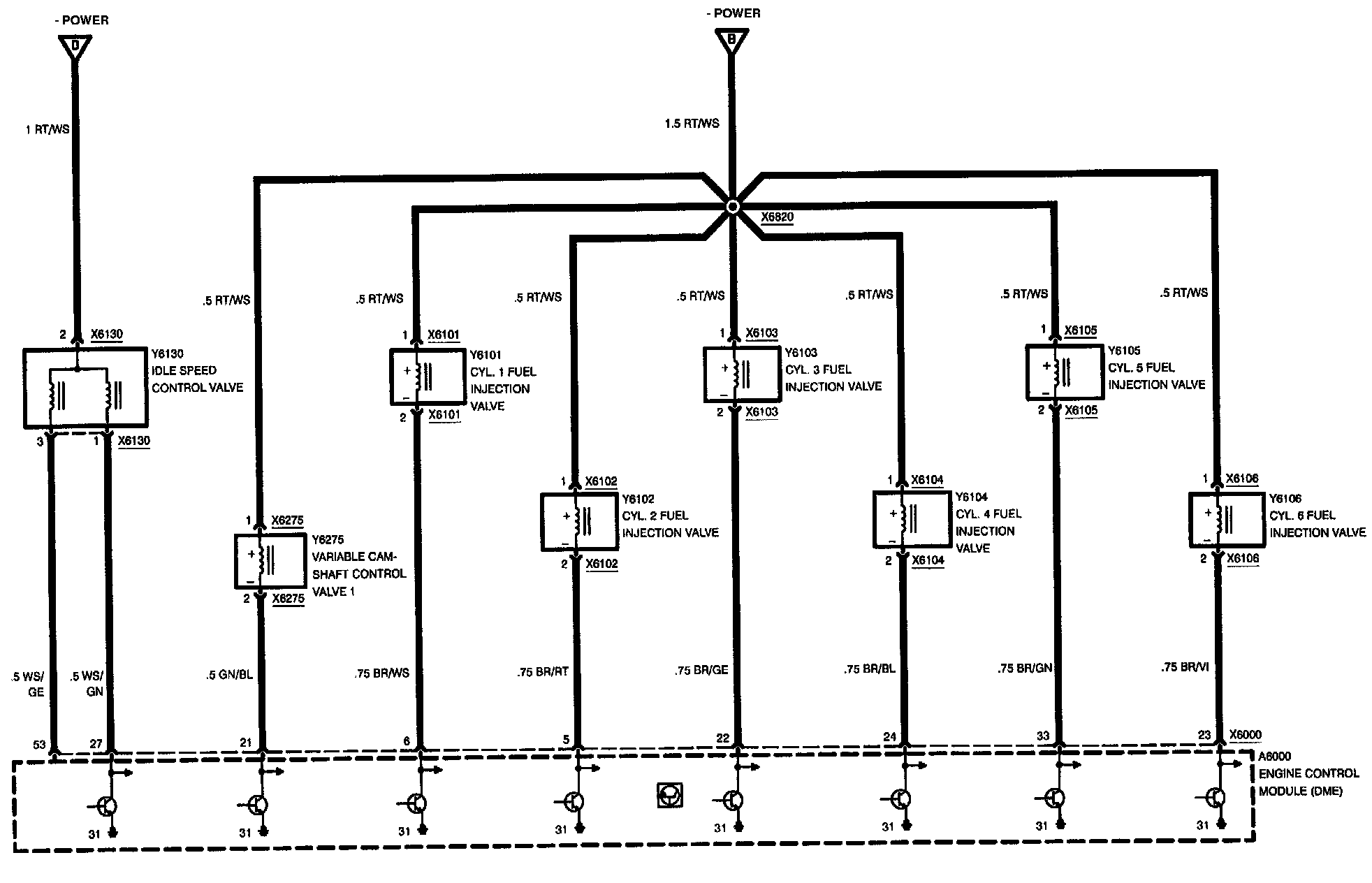

Cyl. 1-6 Fuel Injection Valve

Engine Control System: Cyl. 1-6 Fuel Injection Valve:
