Home >> BMW >> 1998 >> M Coupe (E36/7) L6-3152cc 3.2L DOHC (S52) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> Fuse >> Fuses 48 - 49

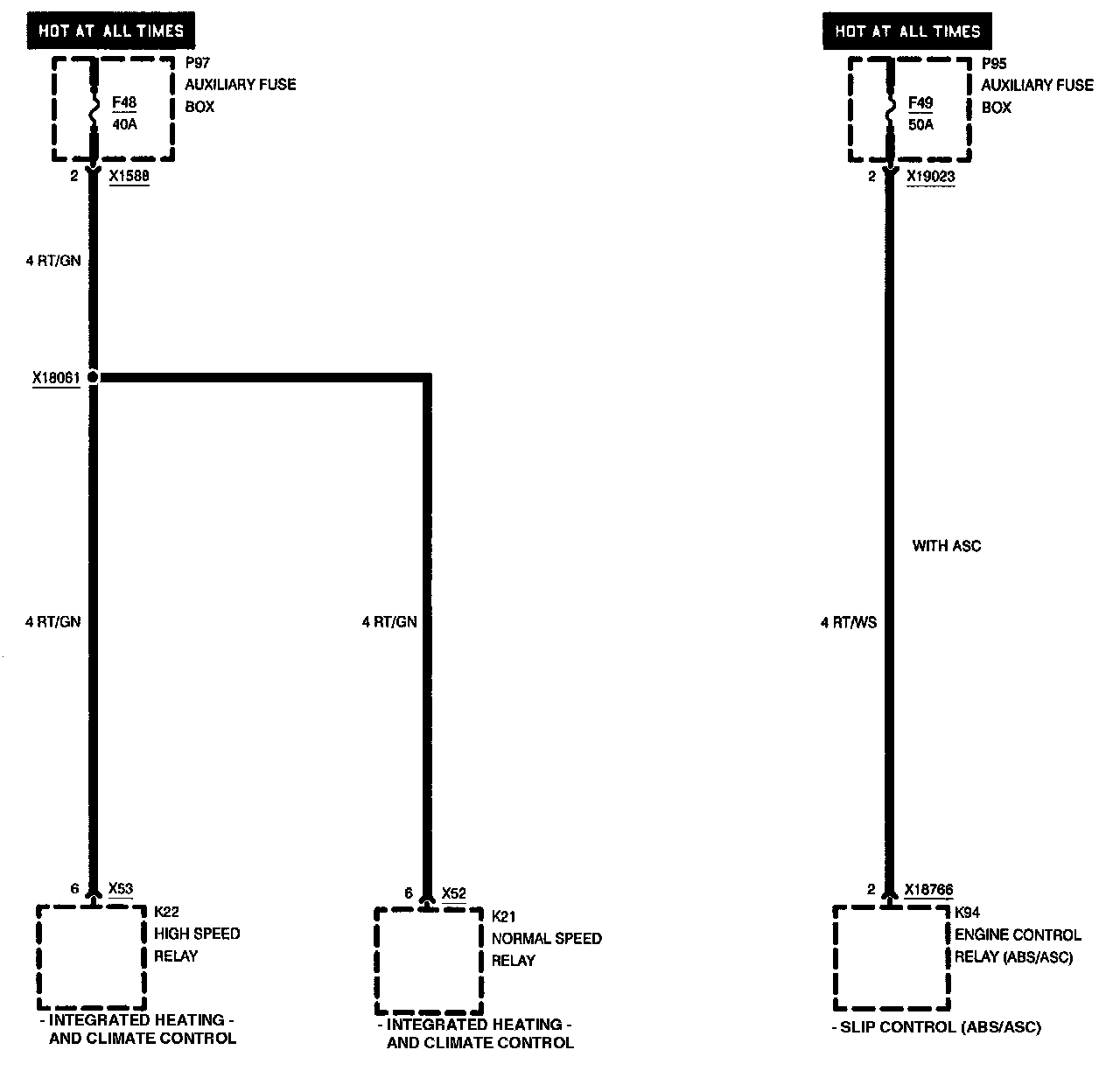

Fuses 48 - 49

Fuse Details: Fuses 48 - 49:
