Slip Control, Transmission Control Module

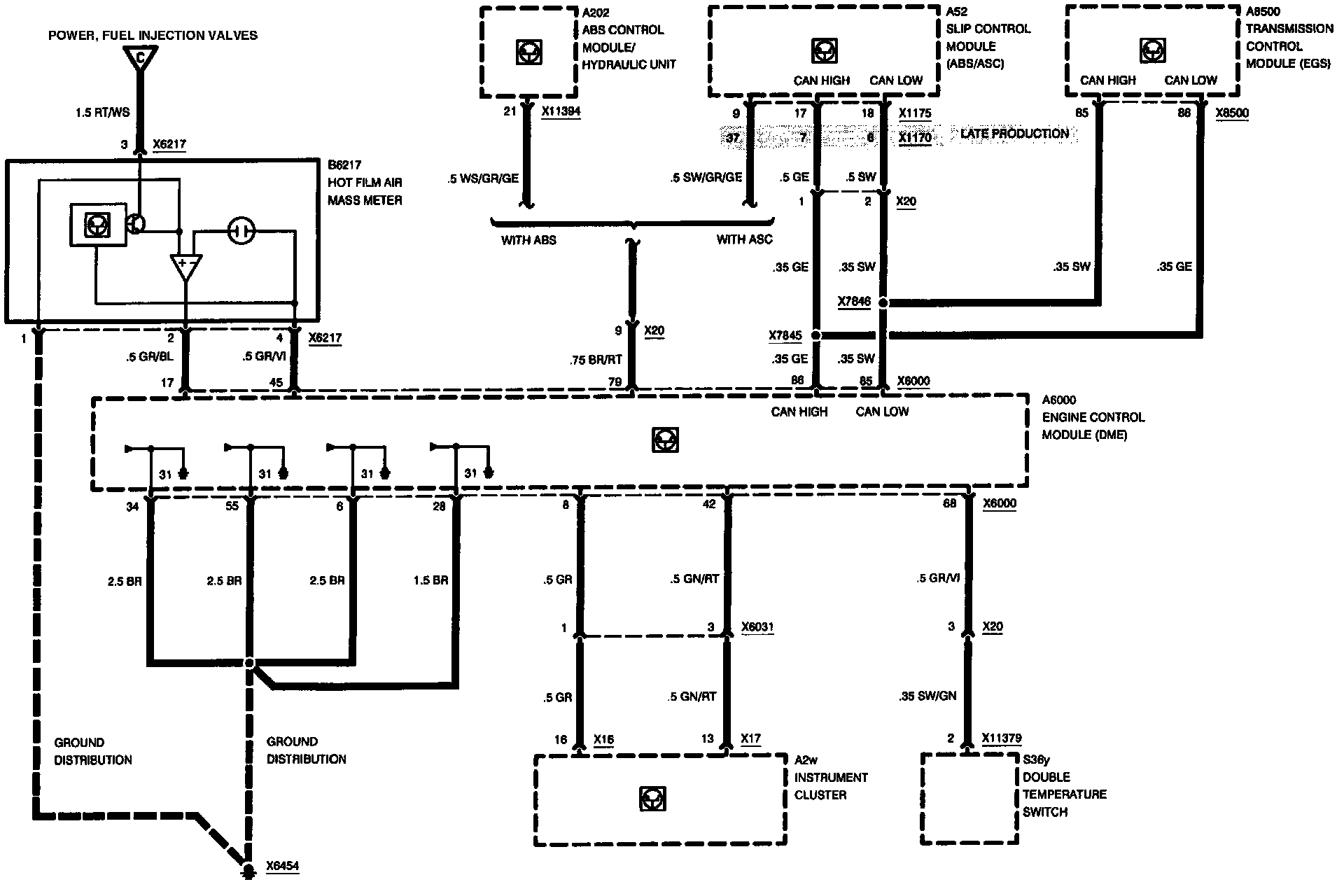

Engine Control System (DME M5.2, 4-cylinder M44): Slip Control, Transmission Control Module:
