Exhaust Manifold: Service and Repair

Remove exhaust system from exhaust manifold.





If necessary, remove air injection pipe.

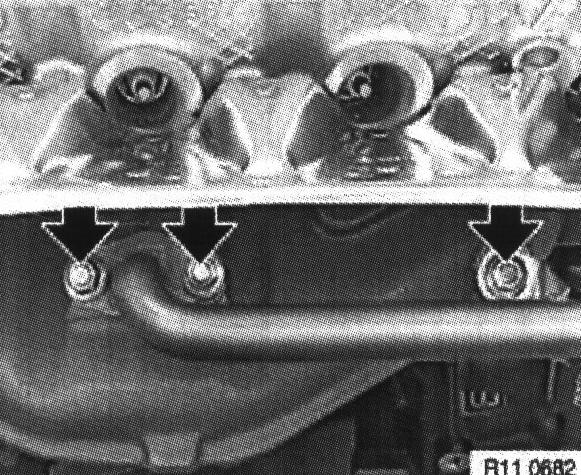

Unfasten nuts and remove exhaust manifold.

Installation:
Coat threads with CRC copper paste (or equivalent).
Replace gaskets and nuts.
Tightening Torque, refer to Engine, Specifications.
