Special Tools - New Required Tools

Group 04
Tools and Equipment

Bulletin Number
04 04 96

Woodcliff Lake, NJ
March 1996
Product Engineering

SUBJECT:
New Special Tools

MODELS:
M44

Situation:

Distribution of the following tools for the M44 will be through the Automatic Tool Shipment Program. Additional tools may be purchased through your PDC. Please refer to Parts Information bulletin I-24 dated 4/95 for tool warranty details. All prices on this bulletin are introductory prices. All repair procedures are taken from TIS dated 12/95, E36 repair manual.

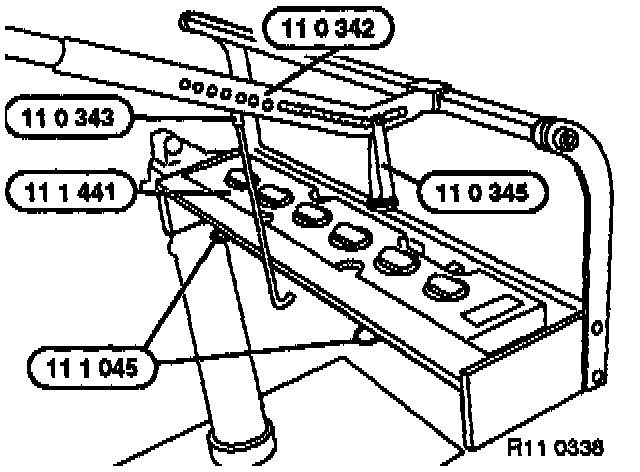

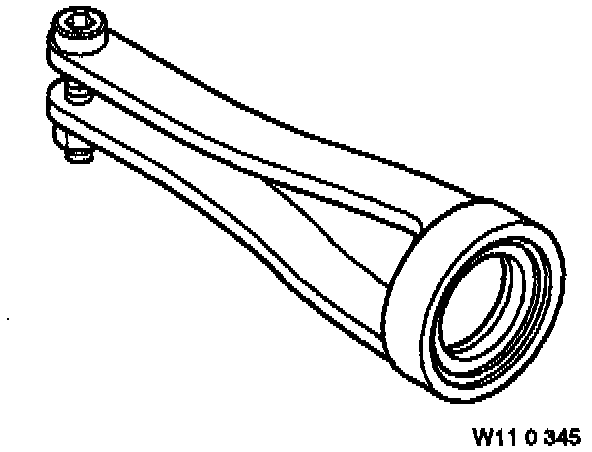

Valve Spring Compressor
P/N 90 88 6 110 345
Price = $27.25





Used to compress the valve springs to R & R the valves.
Refer to repair procedure 11 12 503.

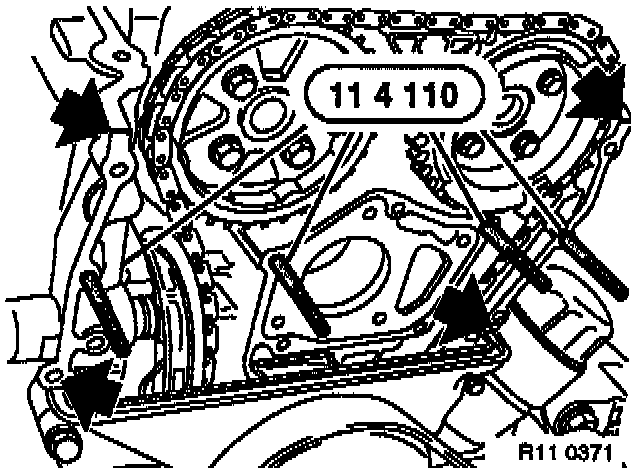

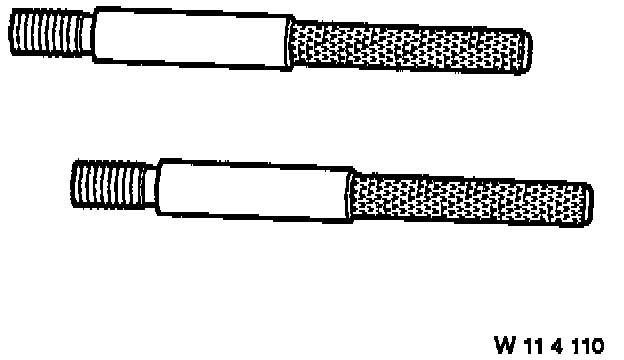

Alignment Studs
P/N 90 8 6 114 110
Price = $4.90





Used to hold and align the gasket when replacing the upper timing case cover. Refer to repair procedure 11 14 100.

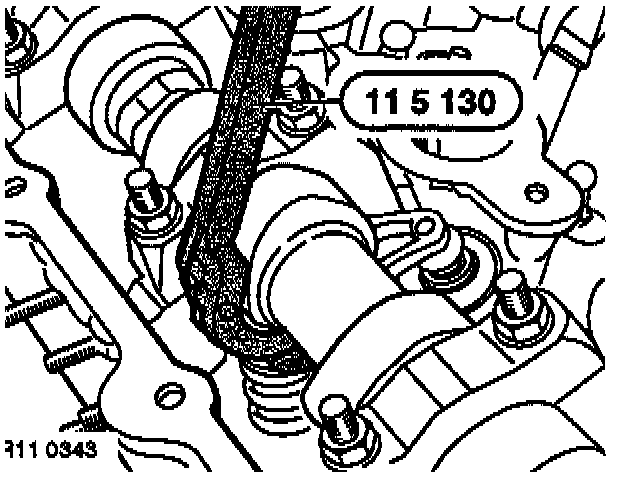

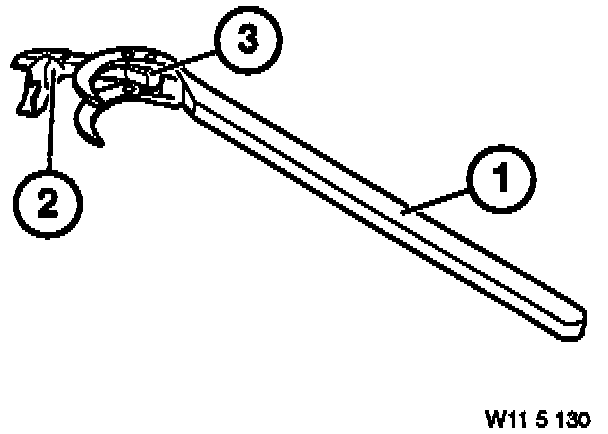

Valve Depressor
P/N 90 88 6 115 130
Price = $66.25





Used to depress the valves in order to R & R the rocker arms. Refer to repair procedure 11 33 050.

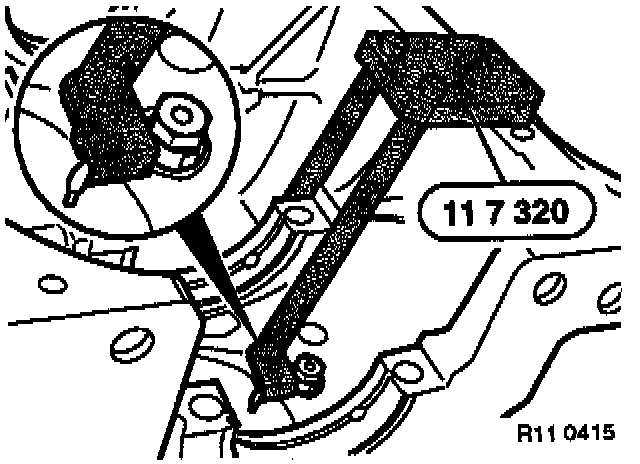

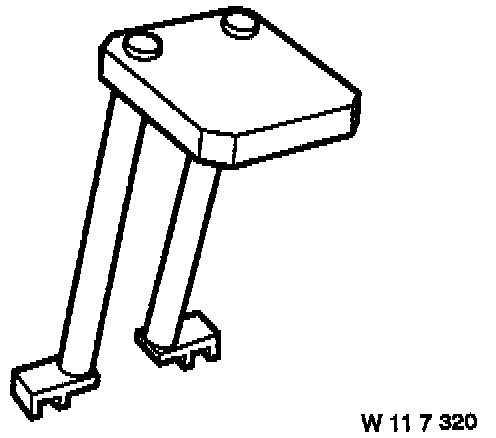

Oil Jet Adjuster
P/N 90 88 6 117 320
Price = $26.15





Used to adjust the crankcase oil jets to the proper angle (8 degrees). Refer to repair procedure 11 21 531.

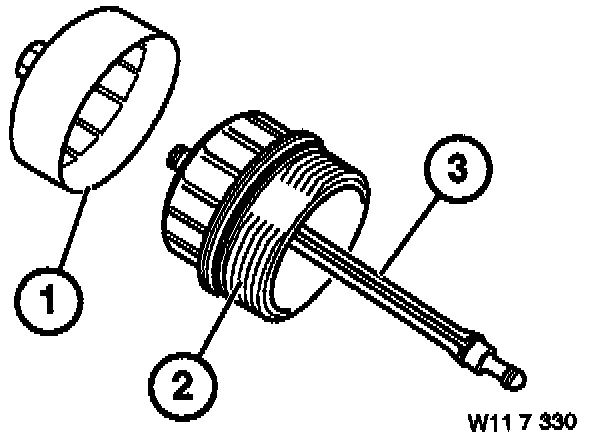

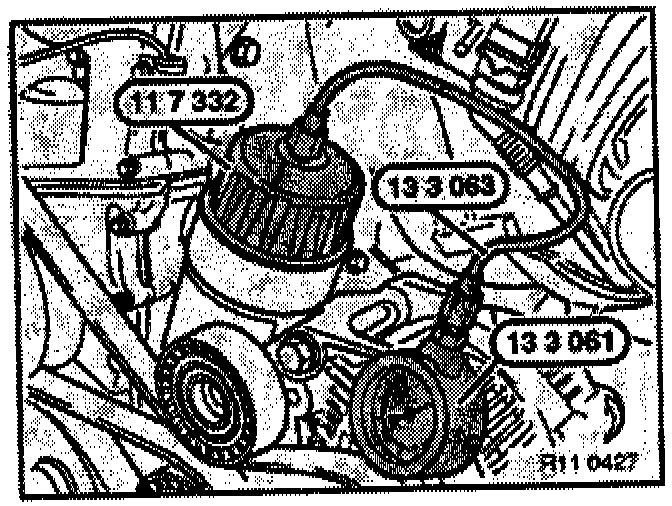

Oil Pressure Adapter
P/N 90 88 6 117 330
Price = $9.75





Used to measure the oil pressure using the BMW Pressure gauge (88 88 6 113 060). Refer to repair procedure 11 40 000.

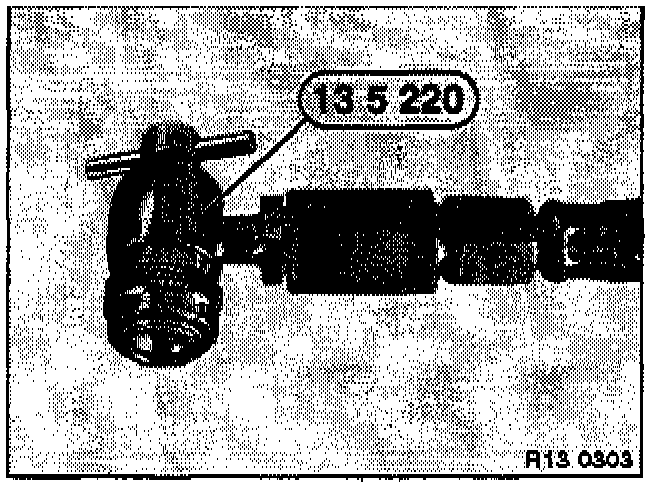

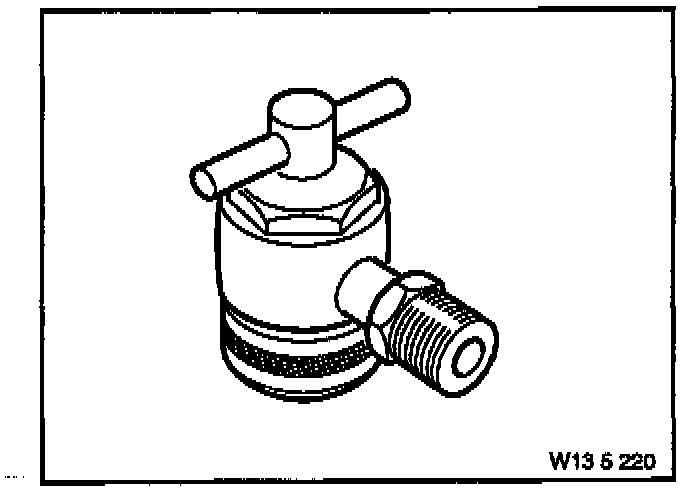

Fuel Pressure Adapter
P/N 90 88 6 135 220
Price = $63.00





Used to measure the fuel pressure at the injector rack on M44 and M52 engines using the BMW pressure gauge (88 88 6 133 060). Refer to repair Procedure 13 31 029.
